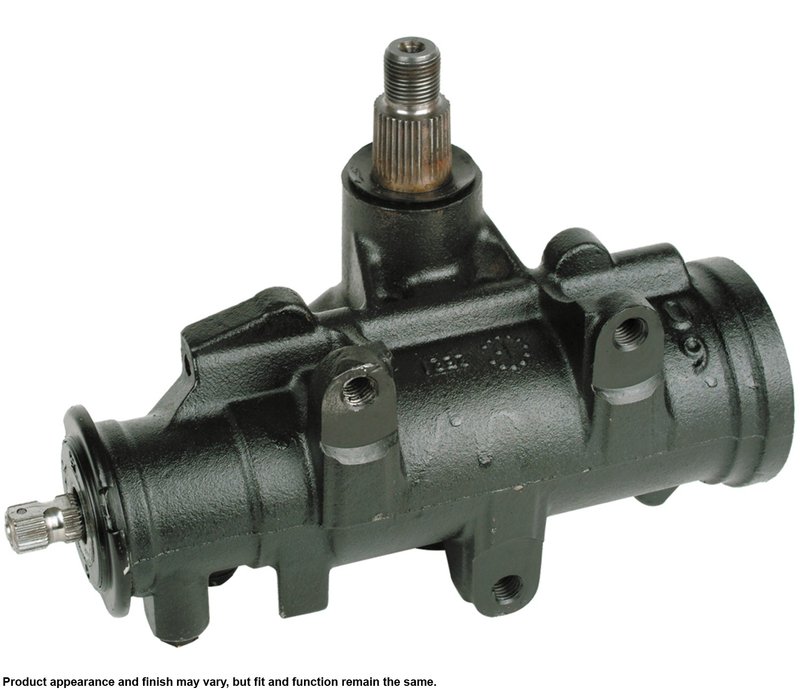

Cardone 27-7615 Steering Gear
| Brand | Cardone 27-7615 |
|---|---|
| Color | Black |
| E-Waste | No |
| Hose Port Type | O-ring |
| Input Shaft Diameter (in) | 0.73 |
| Input Shaft Diameter (mm) | 18.42 |
| Input Shaft Spline Count | 25 + flat & groove |
| Input Shaft Type | Splined, single flat |
| Number of Mounting Holes | 3 |
| Output Shaft Diameter (in) | 1.25 |
| Output Shaft Diameter (mm) | 31.75 |
| Package Contents | Gear, instruction sheet (2), flushing instruction, instruction ta |
| Pitman Arm Included | No |
| Pressure Port ID Size | 0 |
| Pressure Port Thread Size | M18 x 1.5 |
| Product Condition | Remanufactured |
| Pump Rotation | Reverse |
| Return Port ID Size | 0 |
| Return Port Thread Size | M16 x 1.5 |
| Steering Box Type | Power steering |
| Total Turns Lock to Lock | 2.6 |
| Product line | Steering Gear |
| Fits | Chevrolet and GMC · 6 vehicles |
OE-style remanufactured part. Built and tested to match original equipment performance.
Leak-resistant sealing. New O-rings and lip seals help maintain long-lasting operation.
Corrosion-resistant finish. Cool Dip coating covers exposed surfaces for added protection.
Cross-references Chevrolet 15058382 and GMC 15058382 for the same application. See all 2.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Remanufactured Steering Gear
This Cardone steering gear box is a remanufactured power steering replacement built to match OE performance. It is engineered for direct fitment on select Chevrolet Astro and GMC Safari applications, with hydraulic testing to confirm fit and function.
- Remanufactured Original Equipment-style steering gear
- 100% new O-rings and lip seals for leak-resistant operation
- Rust-inhibitive Cool Dip finish for consistent surface protection
- Precision-surfaced shafts to help reduce premature seal wear
- Hydraulically tested for reliable steering response
Detailed Product Overview
The Cardone 27-7615 steering gear is a remanufactured power steering gear box designed for vehicles that use an O-ring hose port layout, a 25-spline input shaft with flat and groove profile, and a 3-hole mounting pattern. It features M18 x 1.5 pressure port threads, M16 x 1.5 return port threads, and a reverse-rotation pump configuration. The black housing and Cool Dip finish add corrosion resistance while the internal sealing components are renewed for long-term service. This part cross-references Chevrolet 15058382 and GMC 15058382 for the same application.
Common Issues This Part Can Address
- Excessive steering play or loose steering feel
- Fluid leakage from worn internal seals
- Rough or inconsistent steering response
- Wear-related loss of steering gear performance
- Corrosion or surface deterioration on the steering gear housing
Installation Notes and Quality Assurance
Fits 2003-2005 Chevrolet Astro, N/A. Fits 2003-2005 GMC Safari, N/A. Verify hose port style, shaft spline count, mounting pattern, and thread sizes before installation. Follow the included flushing and sealing instructions to help protect the replacement gear and the rest of the steering system. Cardone remanufactures and tests this steering gear to meet OE performance expectations.
| Year | Make | Model | Drive Type | Notes |
|---|---|---|---|---|
| 2005 | Chevrolet | Astro | AWD | In-Line Filter compatible with Steering Gear equipped with Power Steering.; Steering Gear |
| 2005 | GMC | Safari | AWD | In-Line Filter compatible with Steering Gear equipped with Power Steering.; Steering Gear |
| 2004 | Chevrolet | Astro | AWD | In-Line Filter compatible with Steering Gear equipped with Power Steering.; Steering Gear |
| 2004 | GMC | Safari | AWD | In-Line Filter compatible with Steering Gear equipped with Power Steering.; Steering Gear |
| 2003 | Chevrolet | Astro | AWD | In-Line Filter compatible with Steering Gear equipped with Power Steering.; Steering Gear |
| 2003 | GMC | Safari | AWD | In-Line Filter compatible with Steering Gear equipped with Power Steering.; Steering Gear |
