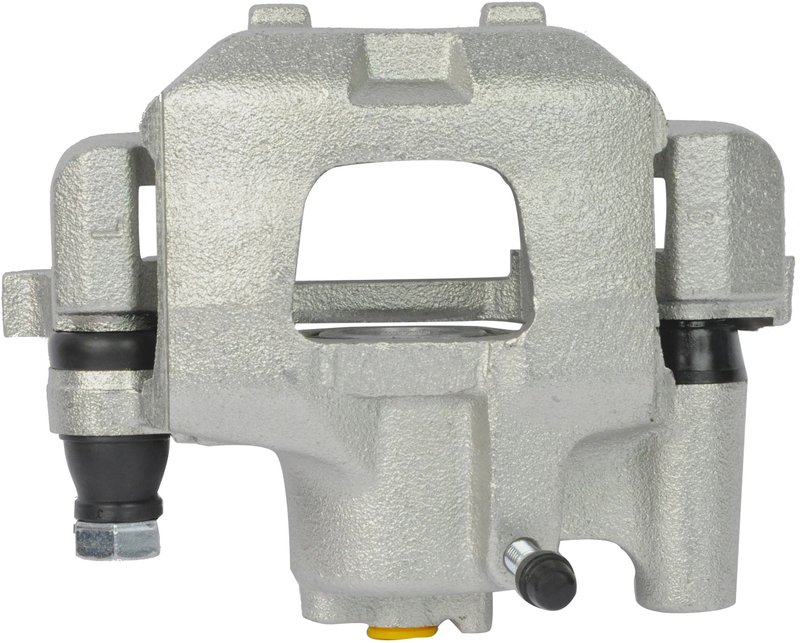

Cardone 2C-2611 Disc Brake Caliper - Rear Left

Overview of Cardone Unloaded Caliper 2C-2611

The Cardone Unloaded Caliper 2C-2611 is designed for reliable brake performance on select Lexus and Toyota vehicles. Engineered to meet OEM specifications, this disc brake caliper ensures consistent stopping power and durability for your Camry or ES300.

• Compatible with Lexus and Toyota Camry and ES300 models
• Finished with corrosion-resistant zinc plating in silver color
• Includes caliper, bracket, instruction sheet, and hardware kit for installation
• Equipped with a single steel piston measuring 1.37 inches (34.87 mm) in diameter
• Features M7x1.0 bleeder port and M10x1.0 inlet port sizes
• Installation hardware included; mounting bolts not included

Product Line Details: Cardone Unloaded Caliper

The Cardone Unloaded Caliper product line offers brake calipers without brake pads pre-installed, allowing for flexible installation and maintenance. This line is ideal for technicians who prefer to reuse existing brake pads or select specific pad types. The 2C-2611 model maintains Cardone's standards for fit and finish, including zinc plating for corrosion resistance and a robust steel piston for reliable braking performance.

Technical Description and Features

This Cardone disc brake caliper features a zinc-plated silver finish that protects against rust and corrosion, extending the service life of the component. The single steel piston with a 1.37-inch diameter provides consistent hydraulic pressure for effective braking. The caliper includes a bleeder port sized M7x1.0 and an inlet port sized M10x1.0, compatible with standard brake lines on the specified Lexus and Toyota models. The package contains the caliper, mounting bracket, instruction sheet, and necessary hardware for installation, though mounting bolts are not included. This new condition part is designed to replace worn or damaged calipers on compatible vehicles.

Applications and Problem Resolution

• Replacement for leaking or seized brake calipers on Lexus Camry and Toyota ES300
• Restores proper brake fluid pressure and pedal feel
• Addresses uneven brake pad wear caused by caliper malfunction
• Eliminates brake noise and sticking issues related to caliper corrosion
• Improves overall braking safety and vehicle control

Installation Notes and Tips

Ensure the brake system is properly bled after installation to remove air from the hydraulic lines. Use the included hardware kit and bracket for secure mounting, but verify if mounting bolts are required separately. Follow the instruction sheet carefully to maintain correct torque specifications and alignment. Inspect brake pads and rotors during installation to confirm compatibility and condition.

Quality Assurance and Warranty

This Cardone Unloaded Caliper 2C-2611 is a new, high-quality replacement part manufactured to meet or exceed OEM standards. The zinc plating finish provides corrosion resistance for extended durability. While specific warranty details are not provided here, Cardone products typically come with a limited warranty against defects in materials and workmanship. Verify warranty terms with the product documentation or supplier.
