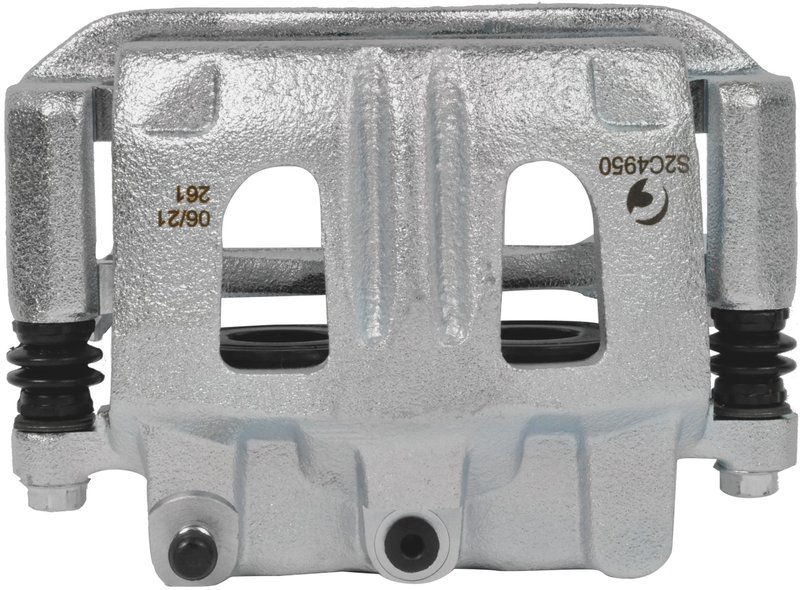

Cardone 2C-4950 Disc Brake Caliper - Front Left

Overview of Cardone Unloaded Caliper 2C-4950

The Cardone Unloaded Caliper 2C-4950 is designed for reliable brake performance on Chevrolet Equinox, Pontiac Torrent, and Saturn Vue models. This new disc brake caliper features a zinc plating finish and phenolic pistons to ensure durability and efficient braking.

• Compatible with Chevrolet Equinox, Pontiac Torrent, and Saturn Vue
• Part number 2C-4950 for precise identification
• Zinc plating finish for corrosion resistance
• Two phenolic pistons with 1.81 inch (45.85 mm) diameter
• Includes installation hardware and bracket
• Bleeder port size M10x1.0 and inlet port size M10x1.5
• Caliper color: Silver

Detailed Product Features and Specifications

This Cardone disc brake caliper is part of the Unloaded Caliper brand line, which provides components without brake pads installed, allowing for customization or reuse of existing pads. The caliper features two phenolic pistons, which help reduce heat transfer and improve brake system longevity. The zinc plating finish offers protection against rust and corrosion, extending the service life of the caliper. The silver color complements the vehicle’s brake assembly aesthetics.

The caliper includes a bleeder port sized M10x1.0 and an inlet port sized M10x1.5, ensuring compatibility with the brake hydraulic system of the specified vehicles. Installation hardware and a bracket are included for a complete replacement setup, although mounting bolts are not provided. This caliper is designed specifically for use on Chevrolet Equinox, Pontiac Torrent, and Saturn Vue models, ensuring proper fit and function.

Applications and Problem Solving

• Replacement for worn or damaged disc brake calipers on Chevrolet Equinox, Pontiac Torrent, and Saturn Vue
• Restores proper brake hydraulic pressure and piston movement
• Addresses brake fluid leaks from faulty calipers
• Improves braking response and safety by replacing corroded or seized calipers
• Supports brake system maintenance and rebuild projects

Installation Notes and Tips

• Ensure compatibility with vehicle make and model before installation
• Use the included hardware kit and bracket for secure mounting
• Bleed the brake system properly after installation to remove air
• Check piston movement and caliper alignment during installation
• Mounting bolts are not included; reuse existing bolts or source separately

Quality Assurance and Warranty

The Cardone Unloaded Caliper 2C-4950 is a new product built to meet OEM specifications for Chevrolet Equinox, Pontiac Torrent, and Saturn Vue vehicles. The phenolic pistons and zinc plating finish contribute to the caliper’s durability and corrosion resistance. Installation hardware is included to facilitate proper fitment. Warranty details should be confirmed with the supplier or manufacturer, as they may vary.
