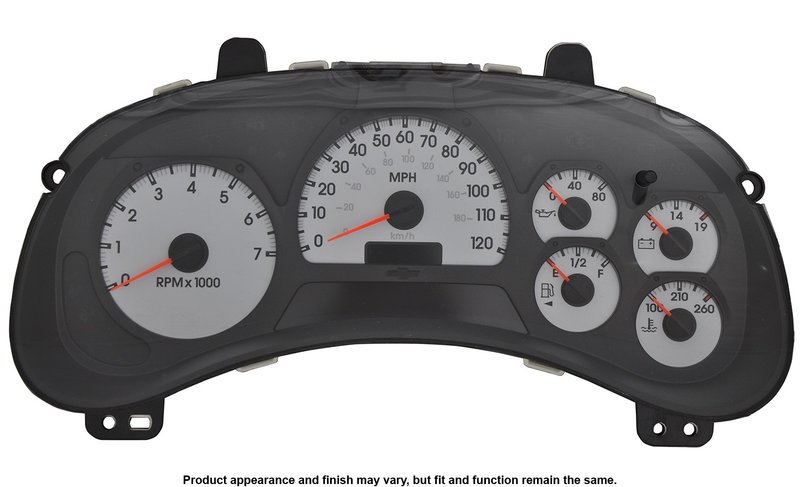

Cardone 2L-1023 Instrument Cluster

Overview of Cardone Instrument Cluster 2L-1023

The Cardone Instrument Cluster 2L-1023 is designed specifically for Chevrolet Trailblazer and Trailblazer EXT models. This remanufactured instrument panel cluster provides accurate analog gauge readings with a clean black bezel and white gauge face, ensuring clear visibility and reliable performance.

• Compatible with Chevrolet Trailblazer and Trailblazer EXT
• Part Number: 2L-1023
• Includes cluster light bulbs for immediate use
• Female rectangular connector with one connection point
• Analog gauge display with six gauges featuring red pointers
• Black gauge bezel and white gauge face for clear readability
• Environmentally friendly with E-Waste compliance

Cardone Instrument Cluster Product Line Details

The Cardone Instrument Cluster product line focuses on remanufactured instrument panel clusters that restore original functionality and appearance. This line includes clusters with analog gauges and replaces all stepper motors and halogen bulbs to ensure consistent operation. The 2L-1023 model is part of this line, offering a reliable replacement option for Chevrolet Trailblazer vehicles requiring precise instrumentation.

Detailed Product Description

This instrument cluster features six analog gauges with red pointers on a white face, housed within a black bezel for enhanced contrast. The cluster light bulbs are included, eliminating the need for additional parts during installation. The connector is female, rectangular in shape, and has a single connection point, matching the original equipment specifications for the Chevrolet Trailblazer and Trailblazer EXT. The cluster undergoes a thorough remanufacturing process including 100% replacement of stepper motors and halogen bulbs, hand cleaning of circuit boards, and vision system inspection to ensure quality and reliability.

Common Applications and Issues Addressed

• Replacement for faulty or non-functioning instrument clusters in Chevrolet Trailblazer and Trailblazer EXT
• Fixes inaccurate or non-responsive analog gauges
• Resolves issues with dim or burnt-out cluster lighting
• Addresses odometer discrepancies with factory reset based on affidavit
• Restores proper connector fit and electrical connection

Installation Notes and Tips

• Accurate VIN, mileage, and engine hours are required for ordering and programming
• On-car programming or relearn procedures are not necessary for this cluster
• Ensure the connector matches the female rectangular shape with one connection point
• Handle the cluster carefully to avoid damage to the analog gauges and pointers
• Follow vehicle-specific service calibration updates as needed

Quality Assurance and Warranty

Each Cardone Instrument Cluster 2L-1023 is fully disassembled, cleaned, and inspected using advanced vision systems. All stepper motors and halogen bulbs are replaced to meet original equipment standards. The odometer is factory reset based on a signed affidavit to ensure accuracy. The latest service calibration is flashed into the cluster before shipment. This product complies with E-Waste regulations, reflecting Cardone's commitment to environmental responsibility.
