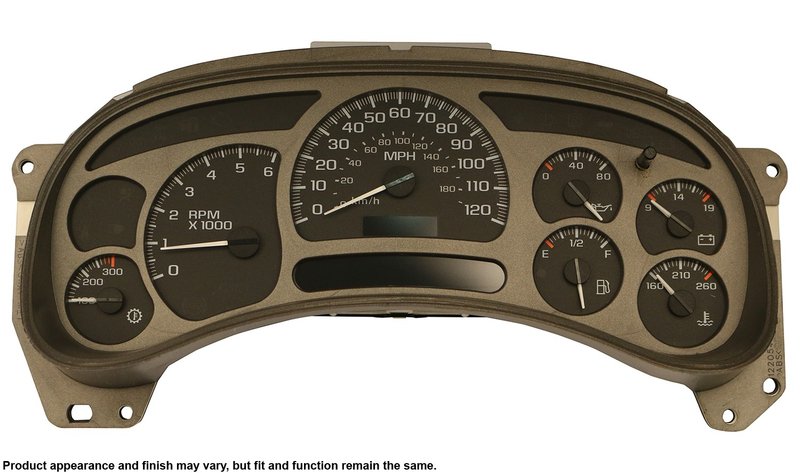

Cardone 2L-1066 Instrument Cluster
| Brand | Cardone 2L-1066 |
|---|---|
| Cluster Light Bulbs Included | Yes |
| Connector Gender | Female |
| Connector Shape | Rectangular |
| E-Waste | Yes |
| Gauge Bezel Color | Gray |
| Gauge Display Type | Analog |
| Gauge Face Color | Black |
| Gauge Pointer Color | White |
| Gauge Writing Color | White |
| Illuminated | Yes |
| Length (in) | 17.25 |
| Maximum Gauge Diameter (in) | 4.72 |
| Minimum Gauge Diameter (in) | 1.90 |
| Product Condition | Remanufactured |
| Terminal Gender | Male |
| Terminal Type | Pin |
| Universal or Specific Fit | Specific |
| Width (in) | 8.5 |
| Wiring Harness Included | No |
| Product line | Instrument Cluster |
| Fits | GMC · 9 vehicles |
Remanufactured OE part. Built for specific fit and restored to original-equipment standards.
Preprogrammed at the factory. VIN, mileage, and engine hours are set to minimize downtime.
New polycarbonate lens. Restores a showroom-new look and improves dashboard visibility.
Cross-references GMC 15105685, GMC 15287364 and GMC 15908649 for the same application. See all 3.
Remanufactured Instrument Cluster for GMC Trucks
This Cardone Instrument Cluster is a remanufactured OE-style replacement for select 2006-2007 GMC Sierra 1500, Sierra 1500 Classic, and Yukon models with a 7-gauge panel. Cardone Part Number 2L-1066 is preprogrammed with VIN, mileage, and engine hours when applicable to reduce downtime and restore accurate dashboard operation.
Key Features
- Fits select GMC Sierra 1500, Sierra 1500 Classic, and Yukon applications with analog gauges
- Preprogrammed with VIN, mileage, and engine hours, if applicable
- All gear-driven stepper motors are replaced with upgraded units
- Lens assembly is restored to like-new condition or replaced with new polycarbonate
- 100% inspected circuit boards with calibration and function testing
- Illuminated cluster with included light bulbs
- Specific-fit remanufactured Original Equipment part for proper vehicle fit
Product Details
Cardone’s Instrument Cluster line focuses on remanufactured dashboard electronics built to OE standards. For this application, critical components are replaced and tested for accurate gauge movement and reliable performance. The cluster is cleaned, inspected under magnification for circuit-board defects, and flashed with the latest service calibration using OEM tools and scanners. Cardone Part Number 2L-1066 is also restored for a showroom-style appearance with a renewed lens assembly and a gray bezel, black gauge face, white pointers, and white gauge lettering.
This part cross-references GMC 15105685 and 15287364 for the same application.
What It Helps Fix
- Inaccurate or erratic gauge readings
- Dead or intermittent instrument cluster illumination
- Failed stepper motors causing speedometer, tachometer, or temperature gauge issues
- Damaged, faded, or cloudy cluster lens visibility problems
- Faulty circuit-board components affecting cluster operation
Installation Notes
Compatible With 2006 GMC Sierra 1500, 2006 GMC Yukon, and 2007 GMC Sierra 1500 Classic, instrument panel applications with a 7-gauge panel, tachometer, and transmission fluid temperature gauge. Accurate VIN, mileage, and engine hours are required for ordering and programming. On-car programming or relearning is not necessary on analog-gauge IPCs. This unit uses one female rectangular connector with 24 male pin terminals and does not include a wiring harness.
Quality Assurance
Each cluster is remanufactured, fully disassembled, hand cleaned, and tested for calibration and function before release. Cardone replaces all stepper motors and halogen bulbs, replaces nonfunctioning LEDs, and restores or replaces faulty circuit-board components as needed. The remanufacturing process also reduces energy and raw material use compared with producing a new part.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2007 | GMC | Sierra 1500 Classic | 6.0L | V8 | N/A | with 7 Gauge Panel; with Tachometer; with Trans Fluid Temperature Gauge; ID #(s) 15105685; with Luxury Edition Package (Y91); Pre-Programmed before shipping and are only available Pre-Programmed - to Pre-Program Cluster you must provide Current Mileage, VIN and Matching ID number; Option Codes are on the Service Parts Identification Sticker; Instrument Cluster |
| 2007 | GMC | Sierra 1500 Classic | 6.0L | V8 | N/A | with 7 Gauge Panel; with Tachometer; with Trans Fluid Temperature Gauge; ID #(s) 15287364; with Luxury Edition Package (Y91); Pre-Programmed before shipping and are only available Pre-Programmed - to Pre-Program Cluster you must provide Current Mileage, VIN and Matching ID number; Option Codes are on the Service Parts Identification Sticker; Instrument Cluster |
| 2007 | GMC | Sierra 1500 Classic | 6.0L | V8 | N/A | with 7 Gauge Panel; with Tachometer; with Trans Fluid Temperature Gauge; ID #(s) 15908649; with Luxury Edition Package (Y91); Pre-Programmed before shipping and are only available Pre-Programmed - to Pre-Program Cluster you must provide Current Mileage, VIN and Matching ID number; Option Codes are on the Service Parts Identification Sticker; Instrument Cluster |
| 2006 | GMC | Sierra 1500 | 6.0L | V8 | N/A | with 7 Gauge Panel; with Tachometer; with Trans Fluid Temperature Gauge; ID #(s) 15287364; with Luxury Edition Package (Y91); Pre-Programmed before shipping and are only available Pre-Programmed - to Pre-Program Cluster you must provide Current Mileage, VIN and Matching ID number; Option Codes are on the Service Parts Identification Sticker; Instrument Cluster |
| 2006 | GMC | Sierra 1500 | 6.0L | V8 | N/A | with 7 Gauge Panel; with Tachometer; with Trans Fluid Temperature Gauge; ID #(s) 15908649; with Luxury Edition Package (Y91); Pre-Programmed before shipping and are only available Pre-Programmed - to Pre-Program Cluster you must provide Current Mileage, VIN and Matching ID number; Option Codes are on the Service Parts Identification Sticker; Instrument Cluster |
| 2006 | GMC | Sierra 1500 | 6.0L | V8 | N/A | with 7 Gauge Panel; with Tachometer; with Trans Fluid Temperature Gauge; ID #(s) 15105685; with Luxury Edition Package (Y91); Pre-Programmed before shipping and are only available Pre-Programmed - to Pre-Program Cluster you must provide Current Mileage, VIN and Matching ID number; Option Codes are on the Service Parts Identification Sticker; Instrument Cluster |
| 2006 | GMC | Yukon | 6.0L | V8 | N/A | with 7 Gauge Panel; with Tachometer; with Trans Fluid Temperature Gauge; ID #(s) 15105685; with Luxury Edition Package (Y91); Pre-Programmed before shipping and are only available Pre-Programmed - to Pre-Program Cluster you must provide Current Mileage, VIN and Matching ID number; Option Codes are on the Service Parts Identification Sticker; Instrument Cluster |
| 2006 | GMC | Yukon | 6.0L | V8 | N/A | with 7 Gauge Panel; with Tachometer; with Trans Fluid Temperature Gauge; ID #(s) 15287364; with Luxury Edition Package (Y91); Pre-Programmed before shipping and are only available Pre-Programmed - to Pre-Program Cluster you must provide Current Mileage, VIN and Matching ID number; Option Codes are on the Service Parts Identification Sticker; Instrument Cluster |
| 2006 | GMC | Yukon | 6.0L | V8 | N/A | with 7 Gauge Panel; with Tachometer; with Trans Fluid Temperature Gauge; ID #(s) 15908649; with Luxury Edition Package (Y91); Pre-Programmed before shipping and are only available Pre-Programmed - to Pre-Program Cluster you must provide Current Mileage, VIN and Matching ID number; Option Codes are on the Service Parts Identification Sticker; Instrument Cluster |
