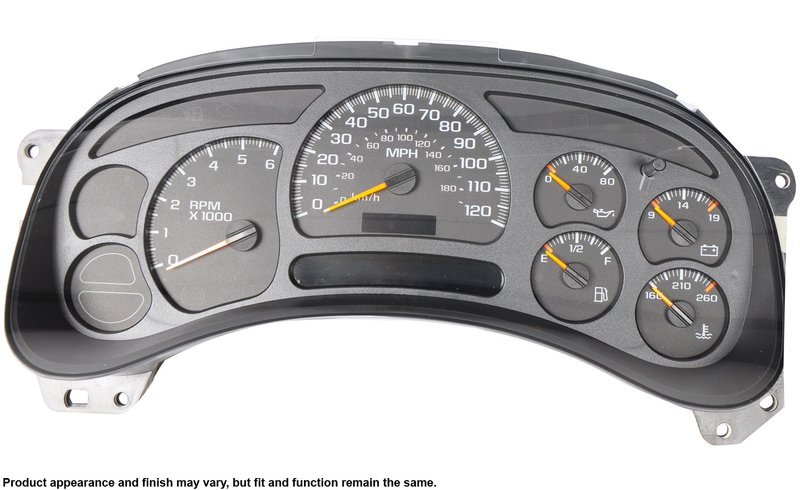

Cardone 2L-1209 Instrument Cluster

Overview of Cardone Instrument Cluster 2L-1209

The Cardone Instrument Cluster part number 2L-1209 is designed for select Chevrolet and GMC trucks and SUVs. This remanufactured instrument panel cluster provides reliable analog gauge functionality with included cluster light bulbs, ensuring clear visibility and accurate vehicle data display.

• Compatible with Chevrolet Avalanche 1500, Silverado 1500/1500 HD/2500 HD/3500, Suburban 1500/2500, Tahoe, and GMC Sierra 1500/1500 HD/2500 HD/3500, Yukon, Yukon XL 1500/2500
• Includes cluster light bulbs for immediate installation
• Features 6 analog gauges with black gauge face and bezel, and orange gauge pointers
• Equipped with two female rectangular connectors for secure fitment
• Remanufactured with 100% replacement of stepper motors and halogen bulbs
• Environmentally conscious with E-Waste compliance

About the Cardone Instrument Cluster Product Line

The Cardone Instrument Cluster line focuses on remanufactured instrument panel clusters that maintain original analog gauge functionality. Each unit undergoes thorough disassembly, cleaning, and inspection, including 100% printed circuit board inspection using vision systems. This ensures consistent performance and reliability for vehicles requiring accurate mileage, engine hours, and gauge readings.

Detailed Product Description

This Cardone Instrument Cluster 2L-1209 is a remanufactured unit tailored for Chevrolet and GMC trucks and SUVs, including models like the Silverado 1500 HD and Yukon XL 2500. It features six analog gauges with a black face and bezel, complemented by orange pointers for clear readability. The cluster includes two female rectangular connectors, facilitating straightforward installation. All stepper motors and halogen bulbs are fully replaced, and cluster light bulbs are included to ensure optimal illumination. The unit is factory reset with accurate VIN, mileage, and engine hours based on a signed affidavit, eliminating the need for on-car programming or relearning procedures for compatible vehicles.

Common Applications and Issues Addressed

• Replacement for faulty or non-functioning instrument clusters in Chevrolet Avalanche 1500 and GMC Sierra 2500 HD
• Restores accurate analog gauge readings including speedometer, tachometer, fuel, and temperature gauges
• Resolves issues with dim or burnt-out cluster lighting
• Corrects odometer discrepancies with factory reset mileage
• Addresses common failure modes such as stepper motor or bulb failure

Installation Notes and Tips

• Ensure accurate VIN, mileage, and engine hours are provided when ordering
• No on-car programming or relearn procedure is necessary for compatible analog gauge clusters
• Disconnect the battery before installation to prevent electrical damage
• Handle connectors carefully to avoid damage to the female rectangular connectors
• Verify all connections are secure before reassembling the instrument panel

Quality Assurance and Warranty

Each Cardone Instrument Cluster 2L-1209 is fully remanufactured with a 100% inspection of printed circuit boards using advanced vision systems. The cluster is disassembled and hand cleaned with alcohol to ensure optimal performance. All stepper motors and halogen bulbs are replaced to meet original equipment standards. The odometer is factory reset based on a signed affidavit to guarantee accurate mileage. This product complies with E-Waste regulations, reflecting Cardone's commitment to environmental responsibility. Warranty details are provided with the product to cover defects in materials and workmanship.
