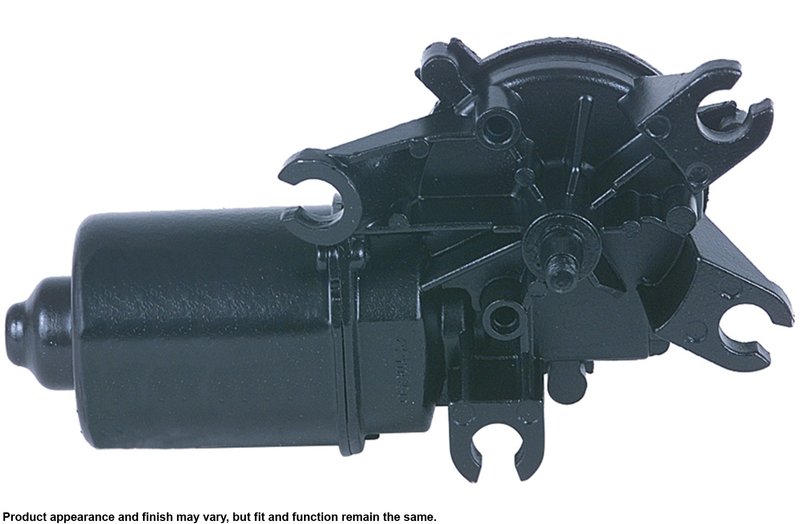

Cardone 40-1001 Windshield Wiper Motor - Front

OE-Style Wiper Motor for Toyota and Geo

The Cardone 40-1001 windshield wiper motor is a remanufactured OE-style replacement built for front wiper applications on select Toyota Corolla, Chevrolet Prizm, and Geo Prizm models. It is re-engineered and tested to match original equipment performance, with attention to fit, function, and long-term reliability.

Compatible With 1993-2002 Toyota Corolla, front; 1993-1997 Geo Prizm, front; and 1998-2002 Chevrolet Prizm, front. This Cardone 40-1001 wiper motor is supplied as a remanufactured original equipment part for vehicles using a blade terminal and grommet mounting design.

Key Features

• Remanufactured Original Equipment part for proper vehicle fit
• Tested against O.E. standards for core components including armature, field, bearing, parking switch, or pulse board
• Final function testing performed on the vehicle
• Motor bearings re-impregnated or replaced as needed
• Output gear lubricated for load capacity and service life
• Motor magnets recharged for performance and reliability
• Weak solder points reflowed to improve durability
• Earth-friendly remanufacturing process reduces raw material and energy use

Product Details

Cardone’s Windshield Wiper Motor line is built around remanufactured OE replacement parts that restore factory-style operation without changing the original mounting or electrical layout. Part number 40-1001 is designed for front windshield wiper systems and is listed without a washer pump, making it important to confirm your vehicle’s original configuration before ordering. This part cross-references Toyota 8511002051 for the same application.

Common Problems This Part Can Address

• Wipers that stop in the middle of the windshield
• Intermittent or slow wiper movement
• Parking misalignment after motor replacement
• Failure of the front wiper motor to operate
• Noise or drag caused by worn internal motor components

Installation Notes and Tips

Fits 1998-2002 Chevrolet Prizm, front; 1998-2002 Toyota Corolla, front with Delco type; and 1993-1997 Geo Prizm, front. The Toyota Corolla application is for vehicles with Delco type and motor without washer pump. If the vehicle uses hidden park wipers, follow the service manual reset procedure and set the crank arm angle correctly on the motor shaft so the blades park at the bottom of the windshield. If the original system includes a moisture-sensitive wiper control, verify the rain sensor and control module operation before replacing the motor. Bench test the wiper motor and washer pump before installation when diagnosing a no-operation concern.

Quality Assurance

Each Cardone 40-1001 remanufactured wiper motor is built to OE standards and tested for function before release. The remanufacturing process is designed to restore performance while reducing energy and raw material use compared with producing a new part.
