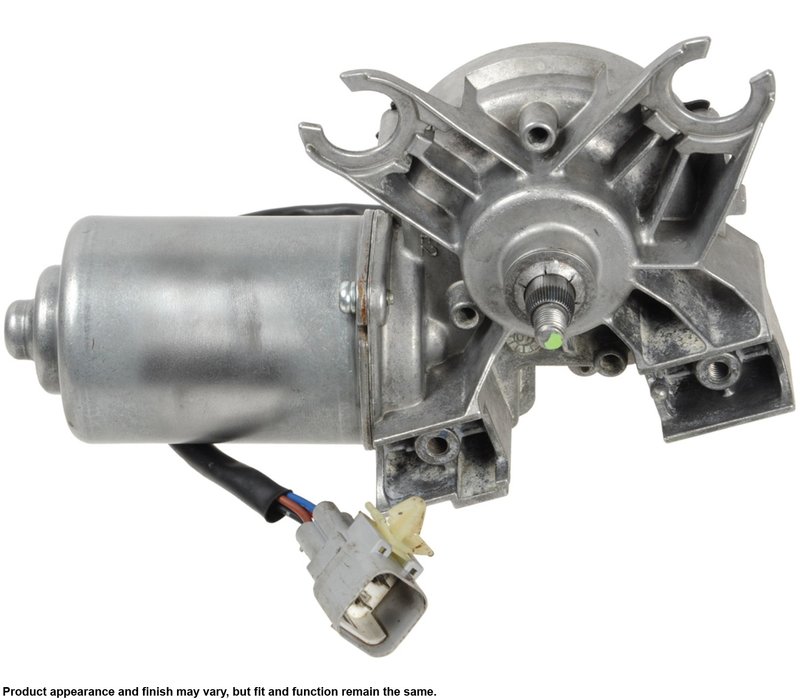

Cardone 40-10013 Windshield Wiper Motor - Front

Remanufactured OE Wiper Motor for Front Applications

CARDONE Windshield Wiper Motor 40-10013 is a remanufactured OE-style replacement built for direct fit and dependable windshield wiping performance. It is engineered, tested, and verified to match original equipment operation for the listed Chevrolet Captiva Sport and Saturn Vue front applications.

Key Features

• Remanufactured Original Equipment part for accurate vehicle fit
• Main components tested or gauged to O.E. standards, then final-tested on the vehicle
• Motor bearings re-impregnated or replaced as needed
• Output gear lubricated for load capacity and service life
• Motor magnets recharged for performance and reliability
• Weak solder points reflowed to improve durability
• Earth-friendly remanufacturing process reduces raw material and energy use versus new-part production
• Package contents: wiper motor and instruction sheet

Product Details

This CARDONE windshield wiper motor line is built around remanufactured OE components, with attention to the armature, field, bearing, parking switch, and pulse board where applicable. The result is a replacement that follows original fitment and operating characteristics for front wiper systems. Part number 40-10013 is listed for 2008-2015 Chevrolet Captiva Sport, front, and 2008-2010 Saturn Vue, front. This part cross-references Chevrolet 20829042 and Saturn 96673024 for the same application.

What It Helps Fix

• Inoperative front windshield wipers
• Slow or inconsistent wiper movement
• Wipers that stop in the wrong park position
• Intermittent operation caused by worn internal motor components
• Reduced wiping performance from weakened motor output

Installation Notes and Tips

Fits 2008-2015 Chevrolet Captiva Sport, front. Fits 2008-2010 Saturn Vue, front. This unit uses a direct bolt and grommet mounting style with a blade terminal type and four mounting holes. Washer pump included: no. If the vehicle uses a moisture-sensitive wiper system, confirm the rain sensor and control module operation before replacing the motor. If the wipers park incorrectly and the vehicle does not use hidden wiper blades, check crank arm position on the motor shaft and reset it to the proper park angle using the vehicle service procedure. If the motor does not operate after installation, bench test the wiper motor and washer pump together, since some systems will not run with a failed washer pump.

Quality Assurance

CARDONE remanufactured wiper motors are re-engineered and tested to match O.E. performance. The remanufacturing process restores key wear items, recharges magnets, and verifies final function before release. CARDONE has offered remanufactured wiper motors since 1970, and this product reflects that long-running OE replacement focus.
