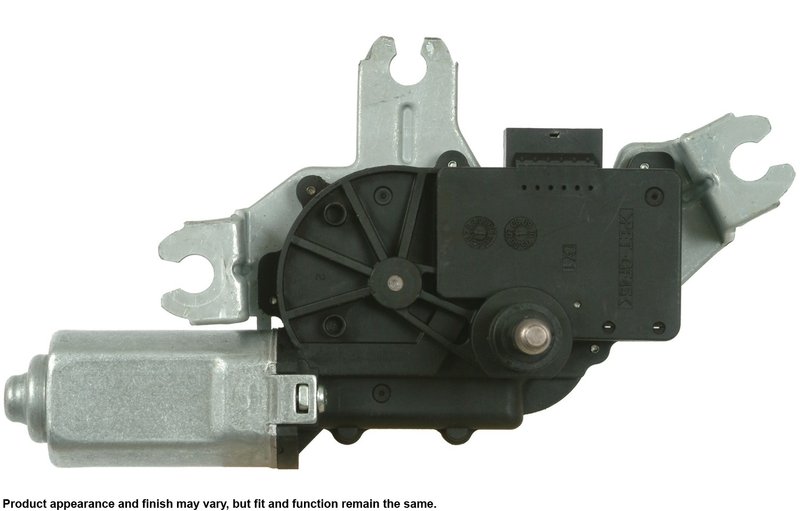

Cardone 40-10014 Windshield Wiper Motor - Rear

Rear Wiper Motor for Captiva Sport and Vue

Restore rear wiper operation with this remanufactured CARDONE windshield wiper motor, part number 40-10014. It is built to match original equipment performance and is a direct-fit replacement for select Chevrolet Captiva Sport and Saturn Vue rear applications.

Key Features

• Remanufactured Original Equipment part for proper vehicle fit
• Main components tested or gauged to O.E. standards, including armature, field, bearing, parking switch, or pulse board as applicable
• Final unit tested for full function on the vehicle
• Motor bearings re-impregnated or replaced as needed
• Output gear lubricated for load capacity and service life
• Motor magnets 100% recharged for performance and reliability
• Weak solder points fully reflowed to extend service life
• Earth-friendly remanufacturing process reduces energy and raw material use by 80%

Product Details

CARDONE’s Windshield Wiper Motor line is built around remanufactured OE components that are re-engineered, tested, and verified to deliver original-style operation. Part number 40-10014 is a rear wiper motor with a grommet mount, 3 mounting holes, and blade terminals. Package contents include the wiper motor and instruction sheet. Washer pump included: no. This part cross-references Saturn 25963804 and 96673001 for the same application.

What It Helps Fix

• Rear wiper motor failure or no movement
• Intermittent rear wiper operation
• Wipers stopping in the middle of the windshield
• Poor parking position after motor replacement
• Electrical wear related to weak internal solder joints or worn motor components

Installation Notes

Compatible With 2012-2015 Chevrolet Captiva Sport, rear, and 2008-2010 Chevrolet Captiva Sport, rear; also 2008-2010 Saturn Vue, rear. For vehicles without hidden wiper blades, parking misalignment is often caused by crank arm position, so the crank arm angle on the motor shaft may need to be adjusted to restore proper park position. If the vehicle uses a moisture-sensitive wiper system, verify the rain sensor and control module operation before replacing the motor. On some applications, a defective washer pump can prevent motor operation, so bench test the wiper motor and washer pump before installation.

Quality Assurance

Each CARDONE remanufactured wiper motor is tested against O.E. standards and then function-tested on the vehicle to confirm operation. The remanufacturing process is built to deliver OE-style fit and dependable performance while reducing material waste.
