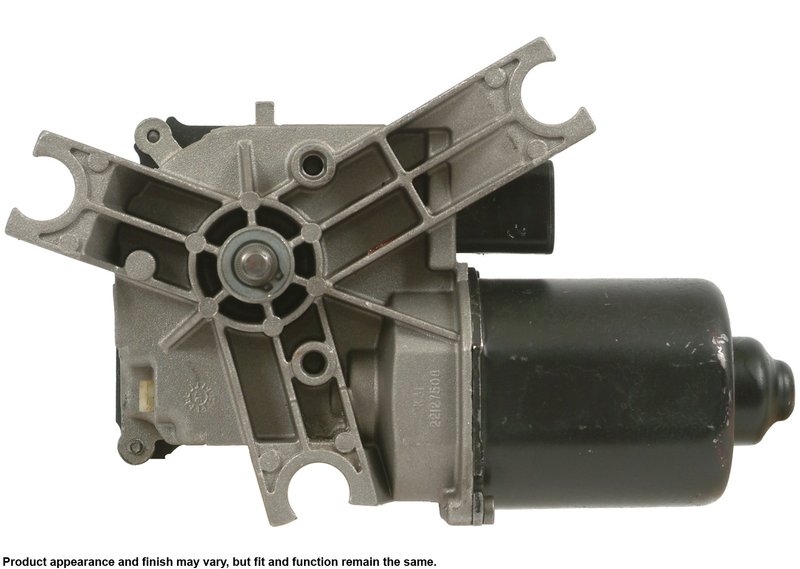

Cardone 40-1004 Windshield Wiper Motor - Front

Remanufactured OE Wiper Motor

The Cardone 40-1004 windshield wiper motor is a remanufactured Original Equipment replacement built for front wiper systems that use a circuit board and do not include a washer pump on the motor. It is engineered, tested, and reconditioned to match OE performance for dependable windshield clearing on the road.

Compatible With 1994-1997 Chevrolet S10, front; 1995-1997 Chevrolet Blazer, front; 1995-1997 GMC Jimmy, front; 1994-1997 GMC Sonoma, front; 1996-1997 Isuzu Hombre, front; and 1996-1997 Oldsmobile Bravada, front.

Key Features

• Remanufactured Original Equipment part for direct vehicle fit
• Built for front windshield wiper motor applications without washer pump
• Uses a blade terminal type and grommet mounting design
• Main components are tested or gauged to OE standards before final function testing
• Motor bearings are re-impregnated or replaced as needed
• Output gear lubrication is applied for load capacity and service life
• Motor magnets are fully recharged for consistent operation
• Weak solder points are reflowed to improve durability
• Earth-friendly remanufacturing process reduces raw material and energy use versus making a new part

Product Details

Cardone Windshield Wiper Motor 40-1004 is part of the brand’s remanufactured wiper motor line, a product category Cardone has supported since 1970. This unit is rebuilt to OE specifications and tested as a complete assembly so it can restore proper windshield wiper movement on the listed Chevrolet, GMC, Isuzu, and Oldsmobile applications. This part cross-references Isuzu 8221219670 for the same application.

Common Problems This Part Can Address

• Front wipers that stop mid-sweep
• Wipers that park in the wrong position
• Intermittent or slow wiper motor operation
• Loss of windshield wiping function on vehicles with circuit board control
• Noise or weak movement from a worn motor assembly

Installation Notes and Tips

Verify that the vehicle uses a motor without a washer pump and with a circuit board before ordering. If the wipers do not park correctly after installation, the crank arm position may need to be adjusted on the motor shaft using the vehicle service manual’s hidden-park reset procedure. If the vehicle has moisture-sensitive wipers, confirm the rain sensor and control module setup before diagnosis. Bench test the wiper motor and washer pump before replacing either part when electrical symptoms are present.

Quality Assurance

Each Cardone remanufactured wiper motor is re-engineered and tested to match OE performance. Main components are checked against OE standards, bearings are serviced or replaced as needed, and the final assembly is function-tested for reliable operation.
