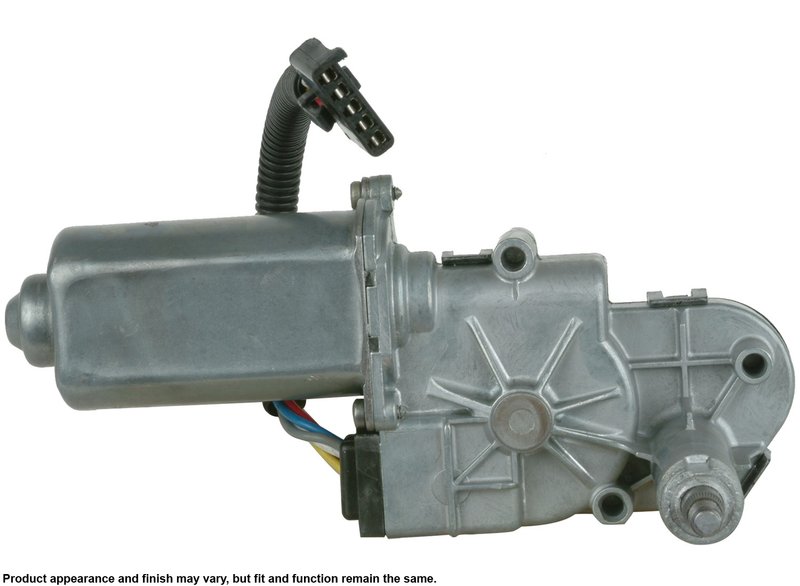

Cardone 40-1005 Windshield Wiper Motor - Rear

Rear Wiper Motor for GM SUVs

Restore rear windshield wiping performance with this remanufactured Cardone windshield wiper motor, part number 40-1005. It is built to match original equipment fit and function for select Chevrolet Blazer, GMC Jimmy, and Oldsmobile Bravada applications with rear wiper systems.

Cardone’s Windshield Wiper Motor line focuses on remanufactured OE-style replacements, and this unit follows that approach with tested components, recharged magnets, and final functional verification. For rear wiper service on 1995-2005 Chevrolet Blazer, 1995-2005 GMC Jimmy, and 1996-2001 Oldsmobile Bravada, 40-1005 provides a direct-bolt replacement path.

Key Features

• Remanufactured Original Equipment part for proper vehicle fit
• Direct bolt mounting with 3 mounting holes
• Blade terminal type
• Motor bearings re-impregnated or replaced as needed
• Output gear lubricated for load capacity and service life
• Motor magnets 100% recharged for performance and reliability
• Weak solder points reflowed during remanufacturing
• Final testing performed on the vehicle for function verification
• Package includes the wiper motor and instruction sheet
• Washer pump not included

Product Details

Cardone 40-1005 is a remanufactured rear windshield wiper motor engineered to meet OE performance standards. Main components are tested or gauged against original equipment specifications, then the finished unit is checked for proper operation. This process supports consistent rear wiper movement on vehicles such as the Chevrolet Blazer, GMC Jimmy, and Oldsmobile Bravada. The remanufacturing process also reduces energy and raw material use compared with producing a new part.

This part cross-references Chevrolet and GMC OE numbers 12365368 and 12494790 for the same application.

Common Problems This Part Can Address

• Rear wiper blade does not move
• Rear wiper motor runs but the arm does not sweep correctly
• Intermittent rear wiper operation
• Weak or slow rear wiper movement
• Rear wiper parking or stop-position issues

Installation Notes and Tips

• Fits 1995-2005 Chevrolet Blazer, rear
• Fits 1995-2005 GMC Jimmy, rear
• Fits 1996-2001 Oldsmobile Bravada, rear
• Excludes washer pump compatibility on listed applications
• Bench test the wiper motor and washer pump before replacement when diagnosing a no-operation concern
• If the wipers stop in the middle of the windshield and the vehicle does not use hidden blades, check crank arm position and reset park alignment as needed
• For moisture-sensitive systems, verify the rain sensor and control module operation before replacing the motor

Quality Assurance

Cardone remanufactured wiper motors are re-engineered to match OE performance, with tested internal components and final functional checks completed before release. The brand’s remanufacturing process is built around long-term reliability and reduced material waste.
