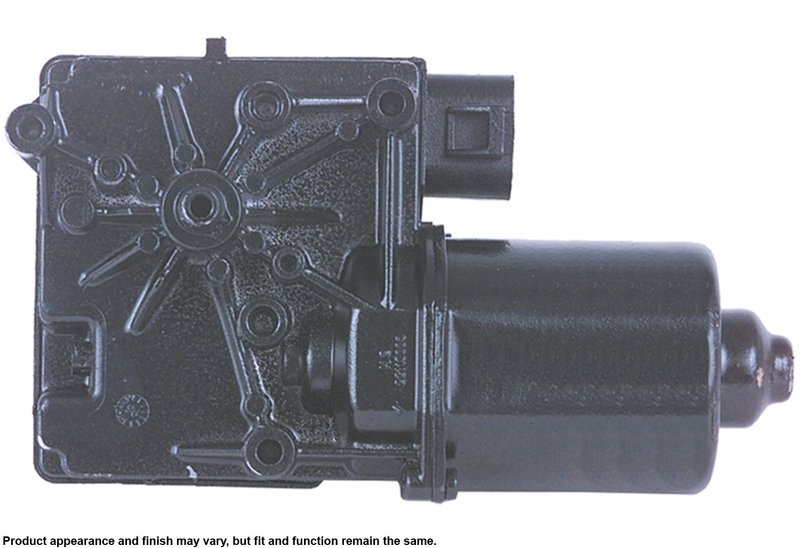

Cardone 40-1010 Windshield Wiper Motor - Front

Remanufactured Wiper Motor for OE Fit

Cardone 40-1010 is a remanufactured windshield wiper motor built for direct replacement on select front applications. It is engineered and tested to match original equipment performance for dependable operation on 1995-1997 Chevrolet Cavalier and 1995-1997 Pontiac Sunfire models.

Key Features

• Remanufactured Original Equipment part for a precise vehicle fit
• Direct bolt mounting with 3 mounting holes
• Blade terminal type for factory-style electrical connection
• Main components tested or gauged to O.E. standards, then function-tested on the vehicle
• Motor bearings re-impregnated or replaced as needed
• Output gear lubricated for load capacity and service life
• Motor magnets recharged for performance and reliability
• Weak solder points reflowed to extend life expectancy
• Earth-friendly remanufacturing process reduces energy and raw material use versus making a new part

Product Details

The Cardone Windshield Wiper Motor line traces back to the company’s first remanufactured product offering, and this part reflects that focus on OE-style restoration. Cardone 40-1010 is remanufactured to restore proper windshield wiping performance on the front of the vehicle, with attention to the armature, field, bearing, parking switch, and pulse board where applicable. This part cross-references Chevrolet and Pontiac OE number 12363317 for the same application.

Fits 1995-1997 Chevrolet Cavalier, front. Fits 1995-1997 Pontiac Sunfire, front. Search terms such as 1995 1996 1997 Chevrolet Cavalier front windshield wiper motor and 1995 1996 1997 Pontiac Sunfire front wiper motor apply to this OE-style replacement.

Common Problems This Part Can Address

• Wipers that stop in the middle of the windshield
• Wipers that do not park correctly at the bottom of the glass
• Intermittent or slow wiper motor operation
• Noisy or weak wiper movement caused by worn internal components
• Electrical faults related to worn terminals, solder joints, or internal motor wear

Installation Notes and Tips

Package contents include the wiper motor and instruction sheet. Washer pump is not included. If the vehicle uses a hidden park setup, set the crank arm position on the motor shaft according to the service procedure so the blades park correctly. If the motor does not operate after installation and the washer pump was transferred from the old unit, bench test both the wiper motor and washer pump before replacing either. For moisture-sensitive systems, verify the rain sensor and control module operation before condemning the motor.

Quality Assurance

Each unit is remanufactured to OE standards, with core components tested, bearings serviced, magnets recharged, and final function checks performed on the vehicle. Cardone’s remanufacturing process also reduces energy and raw material use compared with producing a new part.
