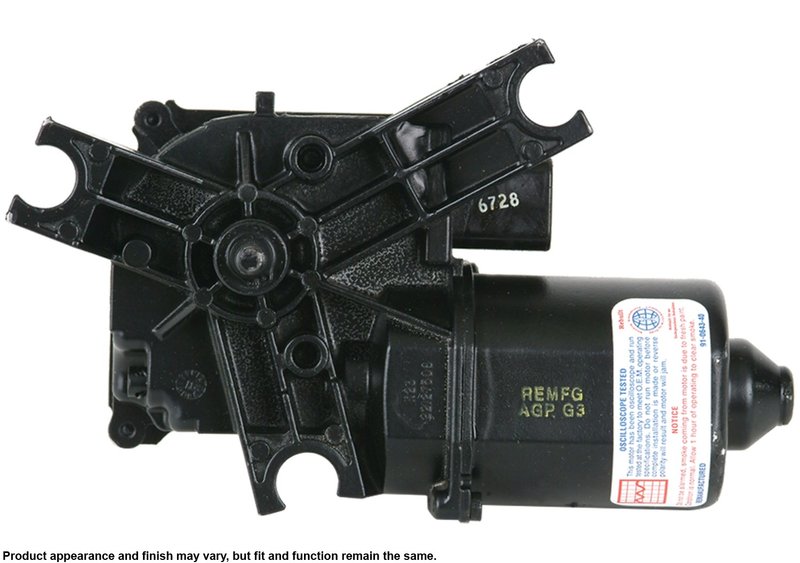

Cardone 40-1030 Windshield Wiper Motor - Front

Cardone 40-1030 Windshield Wiper Motor

Restore front windshield wiping performance with this remanufactured Cardone windshield wiper motor. Cardone 40-1030 is built and tested to match original equipment operation, with OE-style fitment for select Chevrolet, GMC, Oldsmobile, and Isuzu applications.

Compatible With 1998-2004 Chevrolet S10, front; 1998-2004 GMC Sonoma, front; 1998-2001 Chevrolet Blazer, front; 1998-2001 GMC Jimmy, front; 1998-2001 Oldsmobile Bravada, front; and 1998-2000 Isuzu Hombre, front. This part cross-references Isuzu (e.g., 8123653190, 8150360080) for the same application.

Key Features

• Remanufactured Original Equipment part for direct vehicle fit
• Cardone 40-1030 is re-engineered, assembled, and tested to OE performance standards
• Main components are tested or gauged, including the armature, field, bearing, parking switch, or pulse board
• Motor bearings are re-impregnated or replaced as needed
• Output gear lubrication is applied for load capacity and service life
• Motor magnets are recharged for consistent operation
• Weak solder points are reflowed during remanufacturing
• Earth-friendly remanufacturing reduces raw material and energy use versus making a new part
• Blade terminal type, 3 mounting holes, grommet mount
• Washer pump not included

Detailed Description

The Cardone Windshield Wiper Motor line was built around remanufactured OE components, and the 40-1030 continues that approach for front wiper systems that require a motor without linkage and without a washer pump. Each unit is rebuilt to restore original function, then final-tested on the vehicle for proper operation. For drivers searching for a 1998-2004 Chevrolet S10 wiper motor, a 1998-2004 GMC Sonoma windshield wiper motor, or a 1998-2001 Chevrolet Blazer front wiper motor, this part number provides a direct replacement path.

Cardone remanufacturing focuses on the parts that matter most to motor durability and electrical performance. Bearings are serviced, magnets are recharged, solder joints are renewed, and the output gear receives lubrication to support long-term use. The result is a remanufactured windshield wiper motor that follows OE fitment and function for the listed vehicles.

What It Helps Fix

• Inoperative front windshield wipers
• Slow or inconsistent wiper movement
• Wipers stopping mid-sweep
• Poor parking position at the base of the windshield
• Electrical wear inside the wiper motor assembly

Installation Notes and Tips

Use this Cardone 40-1030 only on applications listed with a motor without linkage and without washer pump. Verify the connector style, mounting type, and circuit board configuration before installation. If the wipers park incorrectly and the vehicle does not use hidden wiper blades, check crank arm position on the motor shaft and reset it according to the vehicle service procedure. If the washer pump is defective on certain systems, the wiper motor may not operate; bench test both components before replacement. Package contents include the wiper motor and instruction sheet.

Quality Assurance

Each Cardone remanufactured wiper motor is tested against OE standards for fit and function before release. The remanufacturing process is designed to restore reliable operation while reducing material and energy use compared with manufacturing a new part.
