Cardone 40-1036 Windshield Wiper Motor - Front

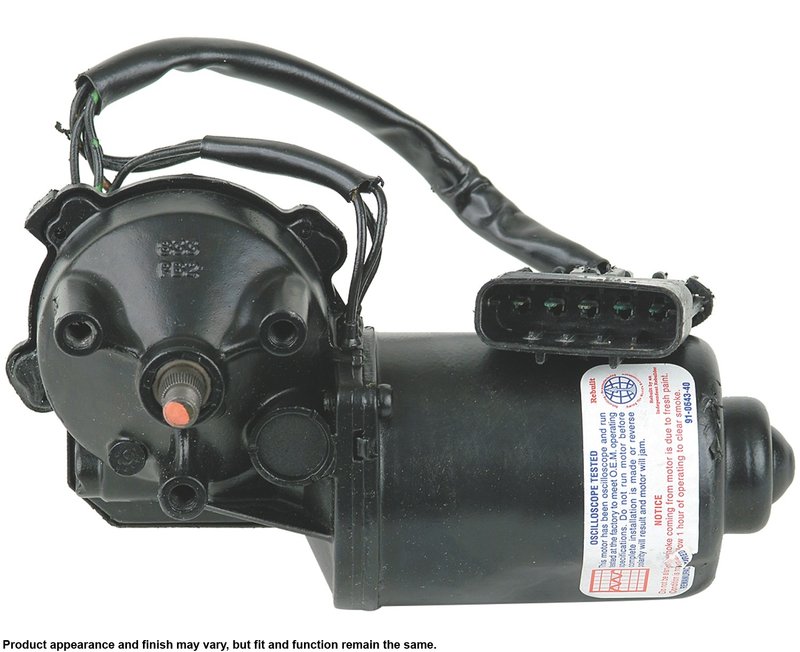

Cardone 40-1036 Remanufactured Wiper Motor

Restore dependable windshield wiping performance with the Cardone 40-1036 remanufactured windshield wiper motor. Built for direct bolt mounting and tested to OE standards, this front wiper motor is a practical replacement for the 1997-2001 Cadillac Catera. It is remanufactured to match original fit and function while supporting long-term reliability.

Key Features

• Remanufactured Original Equipment part for a precise vehicle fit
• Main components are tested or gauged to OE standards, then the finished unit is function-tested
• Motor bearings are re-impregnated or replaced as needed
• Output gear lubrication is applied for load capacity and service life
• Motor magnets are fully recharged for performance and reliability
• Weak solder points are reflowed to help extend service life
• Earth-friendly remanufacturing process reduces energy and raw material use versus new-part production
• Direct bolt mounting with blade terminal type

Product Details

Cardone’s Windshield Wiper Motor line is built around remanufactured OE cores that are re-engineered, tested, and prepared to deliver original-style operation. The Cardone 40-1036 is a front windshield wiper motor for the Cadillac Catera, and it is listed for 1997-2001 Cadillac Catera applications. This part cross-references Cadillac OE part number 22117137 for the same application. Package contents include the wiper motor and instruction sheet.

For buyers searching for a 1997-2001 Cadillac Catera front windshield wiper motor, this remanufactured unit addresses OE fitment and function without changing the original mounting style. The 40-1036 part number is also useful when verifying replacement needs against service information or existing component markings.

Common Problems This Part Can Help Resolve

• Wipers stop mid-windshield
• Wipers do not park correctly at the bottom of the glass
• Intermittent or slow wiper movement
• Loss of windshield wiping function at the front position
• Noise or drag from a worn motor assembly

Installation Notes and Tips

Confirm the vehicle is a 1997-2001 Cadillac Catera, front application before installation. This motor uses a direct bolt mount and blade terminals. If the vehicle has a hidden-park setup, parking alignment may depend on crank arm position; adjust the crank arm angle on the motor shaft as needed using vehicle-specific service information. If the original system includes a washer pump interaction concern, bench test the wiper motor and washer pump before replacing either component. Washer pump is not included.

Quality Assurance

Each Cardone remanufactured wiper motor is re-engineered and tested to match OE performance. The remanufacturing process includes component inspection, functional testing, bearing service, magnet recharging, and solder-point reflow to support consistent operation. Cardone’s wiper motor program has been part of its product line since 1970, with a focus on remanufactured OE-style replacement parts.
