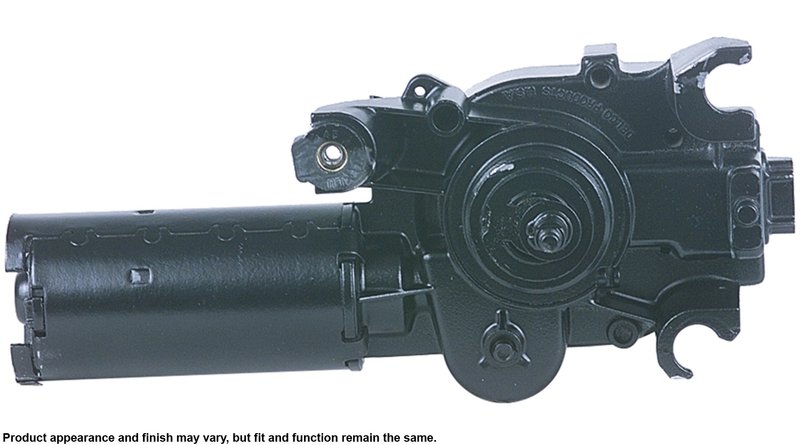

Cardone 40-176 Windshield Wiper Motor - Front

Cardone 40-176 Windshield Wiper Motor

Restore dependable windshield wiping with the Cardone 40-176 remanufactured windshield wiper motor. Built for direct OE-style fit and tested to match original performance, this front wiper motor is a practical replacement for vehicles such as the Buick Riviera, Cadillac Eldorado, and Pontiac Grand Am.

Key Features

• Remanufactured Original Equipment part for a precise vehicle fit
• Main components are tested or gauged to OE standards, then the finished unit is function-tested on the vehicle
• Motor bearings are re-impregnated or replaced as needed
• Output gear lubrication supports load capacity and service life
• Motor magnets are recharged for consistent performance
• Weak solder points are reflowed to improve durability
• Earth-friendly remanufacturing process reduces raw material and energy use versus building a new part
• Package contents: wiper motor and instruction sheet

Product Details

The Cardone Windshield Wiper Motor line was built around remanufactured wiper motors from the start, and the 40-176 continues that focus with OE-based engineering and testing. This remanufactured wiper motor is designed for front windshield applications and uses a grommet mounting type with a blade terminal connection. It does not include a washer pump, so verify your vehicle’s washer pump condition before installation. This part cross-references Buick, Cadillac, Chevrolet, Oldsmobile, and Pontiac OE numbers for the same application, including 22054198 and 22072789.

Vehicle Fitment

• Fits 1986-1987 Buick Riviera, front
• Fits 1986-1987 Buick Skylark, front
• Fits 1987 Cadillac Allante, front
• Fits 1986-1987 Cadillac Eldorado, front
• Fits 1986-1987 Cadillac Seville, front
• Fits 1987 Chevrolet Corsica, front
• Fits 1985-1987 Oldsmobile Calais, front
• Fits 1986-1987 Oldsmobile Toronado, front
• Fits 1985-1987 Pontiac Grand Am, front
• Fits 1986 Buick LeSabre, front
• Fits 1985-1986 Cadillac Commercial Chassis, front
• Fits 1985-1986 Cadillac DeVille, front
• Fits 1985-1986 Cadillac Fleetwood, front
• Fits 1985-1986 Oldsmobile 98, front
• Fits 1986 Oldsmobile Delta 88, front

What It Helps Fix

• Slow or inconsistent windshield wiper movement
• Wipers that stop in the middle of the windshield
• Failure of the wiper motor to park correctly
• Noise or wear related to aging motor bearings and internal components
• Electrical performance issues tied to worn solder joints or weakened motor magnets

Installation Notes

Confirm the vehicle uses a front-mounted wiper motor with a grommet mount and blade terminals before ordering. If the wipers do not park correctly after installation, the crank arm position may need to be adjusted on the motor shaft using the vehicle-specific hidden park reset procedure. If the vehicle has a moisture-sensitive wiper system, inspect the rain sensor and control module operation as part of diagnosis. When the original motor and washer pump are linked in operation, bench test both components before replacing either one.

Quality Assurance

Each Cardone 40-176 remanufactured wiper motor is re-engineered, built, and tested to match OE performance. The remanufacturing process is designed to restore function while reducing waste and material use, supporting a more resource-efficient repair.
