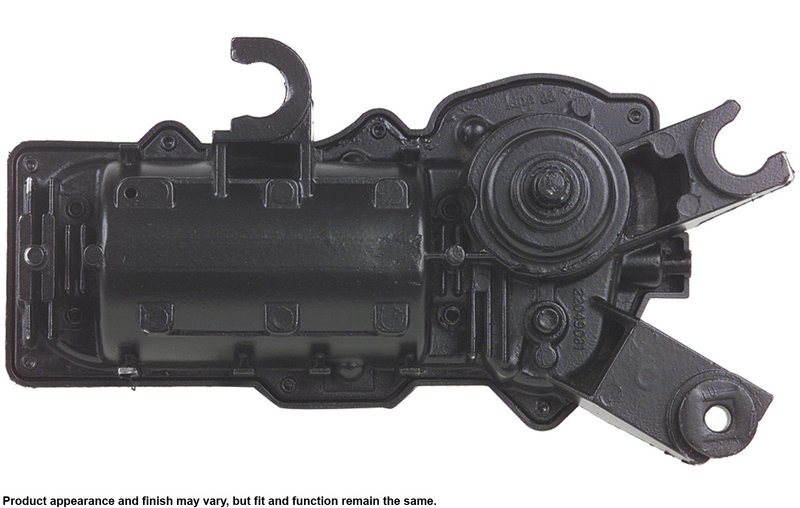

Cardone 40-191 Windshield Wiper Motor - Front

Remanufactured OE Wiper Motor

Restore consistent windshield wiping with this remanufactured Cardone windshield wiper motor. Cardone 40-191 is built to match original equipment performance for vehicles that use intermittent wipers and a motor without a washer pump, including select Chevrolet Cavalier, S10, Astro, and GMC Jimmy applications.

Cardone’s remanufactured wiper motor line has been part of the brand since 1970, with each unit re-engineered, tested, and verified to OE standards for fit and function. Part number 40-191 is a direct replacement for front wiper systems that need dependable parking, sweep speed, and long-term operation.

Key Features

• Remanufactured Original Equipment part for a precise vehicle fit
• Main components tested or gauged to OE standards before final assembly
• Armature, field, bearing, parking switch, or pulse board checked as applicable
• Motor bearings re-impregnated or replaced as needed
• Output gear lubricated for load capacity and service life
• Motor magnets recharged for performance and reliability
• Weak solder points reflowed to improve durability
• Earth-friendly remanufacturing process reduces raw material and energy use

Product Details

This Cardone 40-191 windshield wiper motor is a remanufactured OE-style replacement for front wiper systems. It is designed for vehicles with intermittent wipers, supplied without a pulse board, and without a washer pump. The package includes the wiper motor and instruction sheet. This part cross-references GM OE 22062913 for the same application.

Compatible with select 1982-1994 Chevrolet, GMC, Pontiac, Buick, Cadillac, and Oldsmobile models, including Chevrolet Cavalier, Chevrolet S10, Chevrolet Astro, GMC Jimmy, and GMC Sonoma. Use this part number 40-191 when replacing a worn or failed front windshield wiper motor on the listed applications.

Common Problems This Part Can Solve

• Wipers stop mid-sweep or fail to return to park
• Intermittent wiper operation becomes inconsistent
• Front wiper motor no longer runs or runs weakly
• Parking position is misaligned after motor replacement
• Wiper system performance drops in rain or road spray

Installation Notes and Tips

Verify the vehicle uses intermittent wipers and a motor without a washer pump before installation. If the vehicle does not use hidden wipers, parking misalignment is often caused by crank arm position; adjust the crank arm angle on the motor shaft to restore proper park location. For concealed or hidden park systems, follow the vehicle-specific reset procedure in a service manual.

If the original system includes a washer pump, bench test both the wiper motor and washer pump before replacing either component. A defective washer pump can prevent some wiper motors from operating. Confirm connector style, mounting type, and terminal layout match the original unit before installation.

Quality Assurance

Cardone remanufactures this wiper motor to OE performance standards and tests the finished unit for function on the vehicle. The remanufacturing process includes component inspection, bearing service, lubrication, magnet recharging, and solder reflow where needed to support reliable operation. Part number 40-191 is built for front wiper applications on select Chevrolet Cavalier, S10, Astro, GMC Jimmy, and related models.
