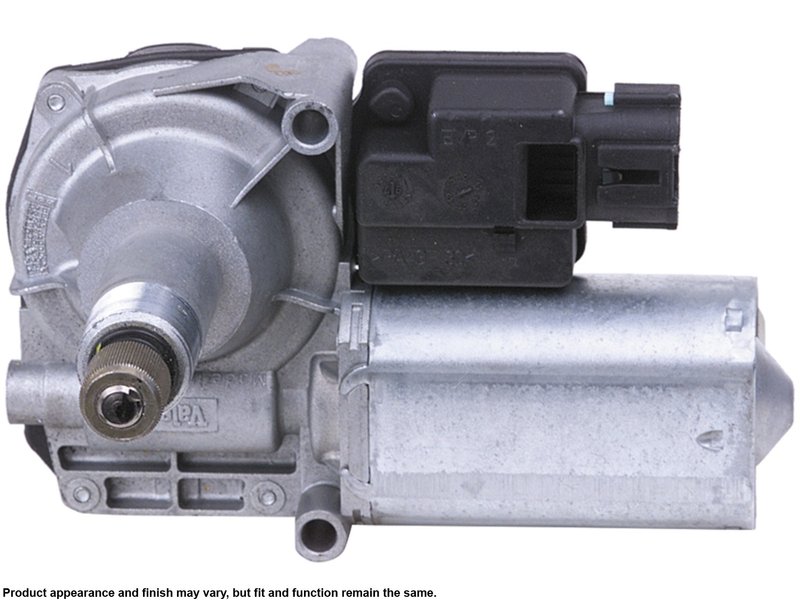

Cardone 40-2022 Windshield Wiper Motor - Rear

Cardone Rear Wiper Motor for Villager and Quest

Restore rear wiper operation with this remanufactured Cardone windshield wiper motor, part number 40-2022. Built for the rear position on select Mercury Villager and Nissan Quest models, it is engineered and tested to match original equipment performance for dependable operation.

Key Features

• Remanufactured Original Equipment-style replacement for a precise vehicle fit
• Main components are tested or gauged to O.E. standards, then the finished unit is function-tested on the vehicle
• Motor bearings are re-impregnated or replaced as needed
• Output gear lubrication supports load capacity and service life
• Motor magnets are fully recharged for consistent performance
• Weak solder points are reflowed to improve durability
• Earth-friendly remanufacturing process reduces energy and raw material use versus making a new part

Product Details

Cardone’s Windshield Wiper Motor line is built around remanufactured OE cores and re-engineered to deliver original fit and function. Part number 40-2022 is a rear wiper motor with a grommet mount, three mounting holes, and blade terminals. It does not include a washer pump and comes with a wiper motor and instruction sheet. This part cross-references Mercury F6XY17508CC and Nissan 287001B310 for the same application.

Compatible With 1996-2002 Mercury Villager, rear, with opening rear window and motor without washer pump. Compatible With 1996-2002 Nissan Quest, rear, with opening rear window and motor without washer pump. Search terms such as rear windshield wiper motor for 1996-2002 Mercury Villager or Nissan Quest rear wiper motor replacement apply directly to this application. Part number 40-2022 is also a useful reference when verifying the correct rear wiper motor before ordering.

Common Problems This Part Can Address

• Rear wiper motor failure or no rear wiper movement
• Intermittent rear wiper operation
• Wiper motor stopping in the middle of the glass
• Poor parking position after replacement or service
• Electrical wear related to aging motor components

Installation Notes and Tips

Verify that the vehicle uses a rear wiper motor without a washer pump before installation. If the wipers stop in the middle of the windshield or park incorrectly, check crank arm position and follow the vehicle-specific hidden park reset procedure when applicable. If the vehicle uses a moisture-sensitive wiper system, confirm the rain sensor and control module operation before replacing the motor. Bench test the wiper motor and washer pump before installation when diagnosing a no-operation condition.

Quality Assurance

Each Cardone remanufactured wiper motor is re-engineered, tested, and built to match O.E. performance. The remanufacturing process includes component inspection, bearing service, magnet recharging, solder reflow, and final functional testing to support reliable operation in daily use.
