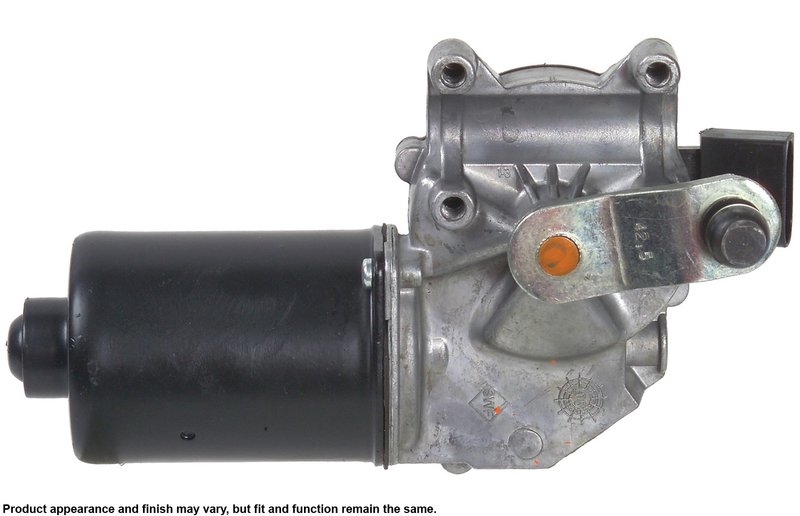

Cardone 43-2122 Windshield Wiper Motor - Front

BMW Windshield Wiper Motor Replacement

Restore consistent windshield wiping with this remanufactured CARDONE windshield wiper motor. Built for direct bolt mounting and OE-style fit, it is engineered and tested to match original performance on select BMW 3 Series and M3 applications.

Cardone 43-2122 is a remanufactured BMW wiper motor for front windshield applications, including 2006-2013 BMW 323i, 325i, 328i, 328i xDrive, 328xi, 330i, 330xi, 335i, 335i xDrive, 335is, 335d, 335xi, and M3 models. This part cross-references BMW 61617161711 for the same application.

Key Features

• Remanufactured Original Equipment part for OE-style fit and function
• Direct bolt mounting with 4 mounting holes
• Blade terminal connection
• Washer pump not included
• Main components tested or gauged to OE standards
• Motor bearings re-impregnated or replaced as needed
• Output gear lubricated for load capacity and service life
• Motor magnets recharged for performance and reliability
• Weak solder points reflowed to extend service life
• Earth-friendly remanufacturing process reduces raw material and energy use

Product Details

Cardone’s Windshield Wiper Motor line began with remanufactured wiper motors and remains focused on OE-level restoration. Part number 43-2122 is rebuilt, tested, and function-checked to support proper windshield wiper operation on BMW 328i, 335i, and M3 front applications, along with related 3 Series variants listed below. The remanufacturing process addresses wear items and electrical integrity so the finished motor is ready for dependable operation.

What It Helps Fix

• Inoperative front windshield wipers
• Slow or inconsistent wiper movement
• Wipers stopping in the middle of the windshield
• Poor park position or misalignment at the base of the glass
• Electrical wear inside the motor assembly

Installation Notes

• Verify vehicle-specific fitment before installation on BMW 323i, 325i, 328i, 328i xDrive, 328xi, 330i, 330xi, 335i, 335i xDrive, 335is, 335d, 335xi, and M3 front applications.
• Use the existing washer pump only if your vehicle setup supports it; this motor is supplied without a washer pump.
• If the wipers park incorrectly, inspect crank arm position and reset the park angle as needed.
• Some BMW wiper systems will not operate correctly if the washer pump is defective, so bench test both components when diagnosing a failure.
• For moisture-sensitive systems, confirm the rain sensor and control module operation before replacing the motor.

Quality Assurance

Each CARDONE remanufactured wiper motor is re-engineered and tested to match OE performance. Main internal components are checked against original standards, and final function testing is performed on the vehicle application to help confirm proper operation.
