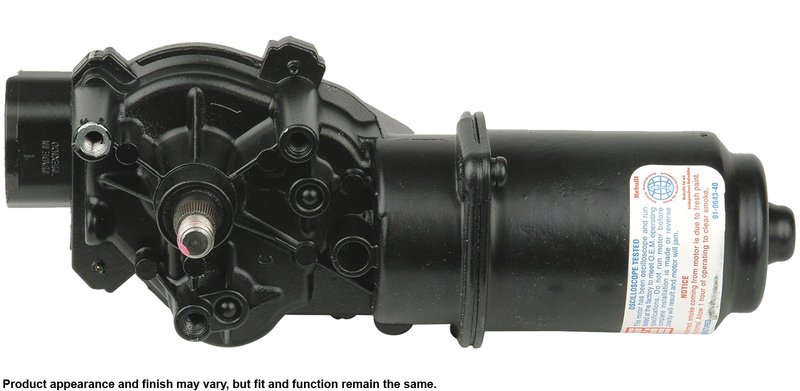

Cardone 43-4013 Windshield Wiper Motor - Front

Remanufactured OE Wiper Motor

The Cardone 43-4013 windshield wiper motor is a remanufactured OE-style replacement built for direct fit and dependable front wiper operation. It is engineered and tested to match original equipment performance for select Acura CL, Acura TL, Honda Accord, and Honda Civic applications.

Cardone’s remanufactured wiper motor line focuses on restoring factory function with OE-level fitment and function checks. For drivers searching for a remanufactured windshield wiper motor for a 1998-2002 Honda Accord or a 2001-2003 Acura TL, this part number 43-4013 is built to meet the application requirements listed below.

Key Features

• Remanufactured Original Equipment part for a direct vehicle fit
• Main components tested or gauged to OE standards before final assembly
• Final function testing performed on the vehicle
• Motor bearings re-impregnated or replaced as needed
• Output gear lubricated for load capacity and service life
• Motor magnets recharged for performance and reliability
• Weak solder points reflowed to extend service life
• Earth-friendly remanufacturing process reduces raw material and energy use
• Direct bolt mounting with blade terminals
• Package includes the wiper motor and instruction sheet

Detailed Description

Cardone 43-4013 is a remanufactured windshield wiper motor designed for front wiper systems that require OE-style operation and mounting. This part is listed for 2001-2003 Acura CL, 1999-2003 Acura TL, 1998-2002 Honda Accord, and 2001 Honda Civic applications, including the Civic with 12 mm shaft and 10 mm threads and no washer pump. The motor is supplied without a washer pump, so the existing washer pump arrangement must match the vehicle’s original configuration.

This part cross-references Acura 76505S84A01 and Honda 76505S4KA01 for the same application. If you are replacing a failed front windshield wiper motor on an Acura TL, Acura CL, or Honda Accord, part number 43-4013 provides an OE-style remanufactured solution built around the original mounting and electrical design.

Common Problems This Part Can Address

• Front wipers stop moving or do not respond
• Wipers park in the wrong position after shutdown
• Wiper motor runs intermittently or loses speed
• Wiper movement becomes weak or inconsistent
• Motor failure related to worn bearings, solder joints, or weakened magnets

Installation Notes and Tips

• Confirm the vehicle uses the listed front wiper motor configuration before ordering.
• Do not assume washer pump interchangeability; this motor is listed without a washer pump.
• If the wipers stop in the middle of the windshield, inspect crank arm position and park alignment during installation.
• For moisture-sensitive systems, verify the rain sensor and control module operation before replacing the motor.
• Bench test the wiper motor and washer pump before installation if the original system showed electrical faults.

Quality Assurance

Each Cardone remanufactured wiper motor is re-engineered, built, and tested to match OE performance. The remanufacturing process includes component inspection, functional testing, and restoration steps intended to return the unit to factory-style operation while reducing material waste.
