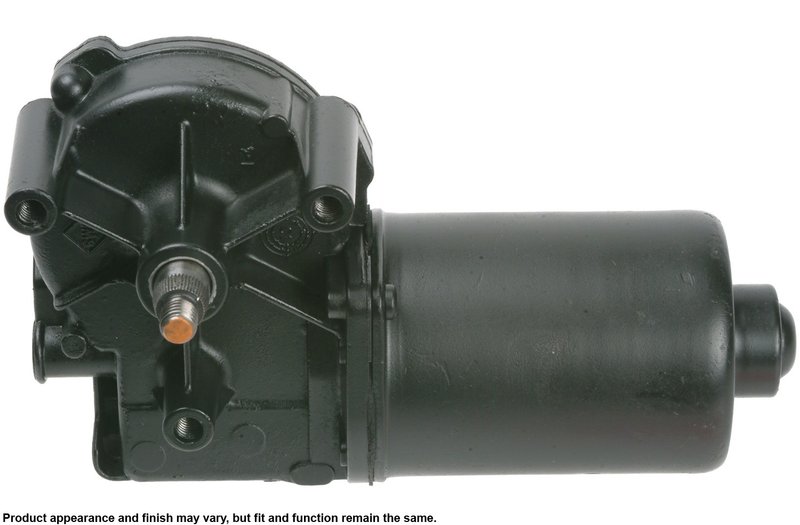

Cardone 43-4817 Windshield Wiper Motor - Front

Cardone 43-4817 Windshield Wiper Motor

The Cardone 43-4817 windshield wiper motor is a remanufactured OE-style replacement built for direct fit and dependable front wiper operation. It is engineered and tested to match original equipment performance for the 2004-2014 Volvo XC90, front, with washer pump compatibility excluded.

Key Features

• Remanufactured Original Equipment part for a precise vehicle fit
• Direct bolt mounting with 3 mounting holes
• Blade terminal connection for straightforward electrical hookup
• Motor bearings are re-impregnated or replaced as needed
• Output gear lubrication is applied for load capacity and service life
• Motor magnets are fully recharged for consistent performance
• Weak solder points are reflowed to improve durability
• Package includes the wiper motor and instruction sheet
• Earth-friendly remanufacturing process reduces raw material and energy use

Product Details

Cardone’s remanufactured wiper motor line traces back to the company’s original product offering and remains focused on OE-level function and fit. Each unit is re-engineered, with core components such as the armature, field, bearing, parking switch, or pulse board tested against OE standards before final vehicle-function testing. For Volvo XC90 owners, Cardone 43-4817 provides a direct replacement for front windshield wiper motor service on 2004-2014 models.

This part cross-references Volvo 8693848 and 86938480 for the same application.

Common Problems This Part Can Address

• Front wipers that stop mid-windshield
• Wipers that do not park correctly at the bottom of the glass
• Intermittent or slow wiper motor operation
• Loss of wiper movement caused by worn internal motor components
• Electrical or mechanical wear in the original Volvo XC90 wiper motor

Installation Notes and Tips

Fits 2004-2014 Volvo XC90, front. This application excludes washer pump compatibility. If the vehicle uses a moisture-sensitive wiper system, verify the rain sensor and control module operation before replacing the motor. If the wipers park in the wrong position, the crank arm angle on the motor shaft may need to be adjusted using the vehicle-specific hidden park reset procedure. Bench test the wiper motor and washer pump before installation when diagnosing a no-operation concern.

Quality Assurance

Each Cardone remanufactured wiper motor is tested to OE standards and then checked again for final function on the vehicle. The remanufacturing process restores key wear items, recharges magnets, and reflows weak solder joints to support reliable operation over time.
