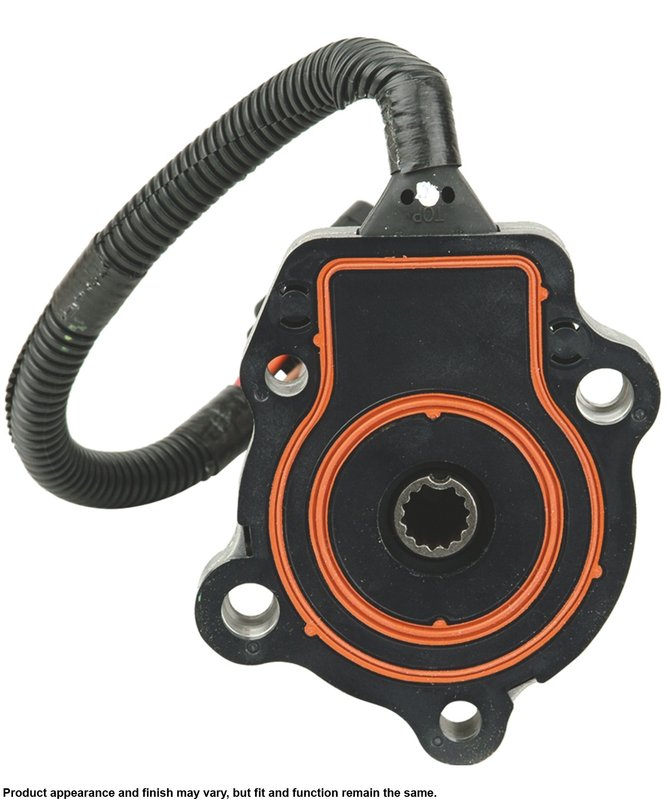

Cardone 48-101 Transfer Case Motor

Transfer Case Motor for GM 4WD Systems

Cardone 48-101 is a remanufactured transfer case motor built for direct replacement in select GM and Isuzu four-wheel-drive applications. It is engineered to restore transfer case shifting performance on vehicles such as the Chevrolet Trailblazer and GMC Envoy when the original motor no longer moves the transfer case correctly.

Key Features

• Remanufactured transfer case motor for 4WD shift operation
• Steel component housing for durable service
• Blade connector/terminal configuration
• Motor magnets are fully recharged for consistent operation
• Transfer case motor sensors are replaced with new, O.E.-quality sensors
• Lubricant is applied in the correct amount for quiet operation and long service life
• 100% computer tested at three points during remanufacturing

Product Details

Cardone’s Transfer Case Motor line focuses on direct-replacement service parts for electronically shifted transfer cases. Part number 48-101 is remanufactured using reverse-engineering feedback from failed units so original design weaknesses can be corrected during the rebuild process. The result is a transfer case motor intended to restore reliable engagement and shifting performance in applications including Chevrolet Trailblazer, GMC Envoy, and related platforms.

This part cross-references Chevrolet OE numbers 88935650 and 88996637 for the same application.

What It Helps Fix

• Service 4WD light illuminated
• Four-wheel drive inoperative in high or low range
• Transfer case motor failure to shift the case
• Weak or inconsistent motor engagement
• Error codes related to transfer case motor operation

Installation Notes and Tips

Before installing Cardone 48-101, manually shift the transfer case into the 2-wheel drive position. The replacement motor drive is factory-set in 2WD, and the transfer case must match that position during installation. Do not operate the motor while it is off the transfer case, as this can damage the unit and set an error code that must be cleared before operation resumes.

A crescent wrench can be used for the manual shifting operation. Confirm the vehicle uses a 7-terminal plug and rectangular harness plug before ordering. Fits 2002-2009 Chevrolet Trailblazer, N/A; 2002-2009 GMC Envoy, N/A; 2003-2008 Isuzu Ascender, N/A; 2002-2006 Chevrolet Trailblazer EXT, N/A; 2002-2006 GMC Envoy XL, N/A; and 2004-2005 GMC Envoy XUV, N/A.

Quality Assurance

Each Cardone remanufactured transfer case motor is computer tested at three stages during the remanufacturing process. The unit is rebuilt to meet or exceed original equipment performance targets, with new O.E.-quality sensors and recharged magnets used to support reliable operation.
