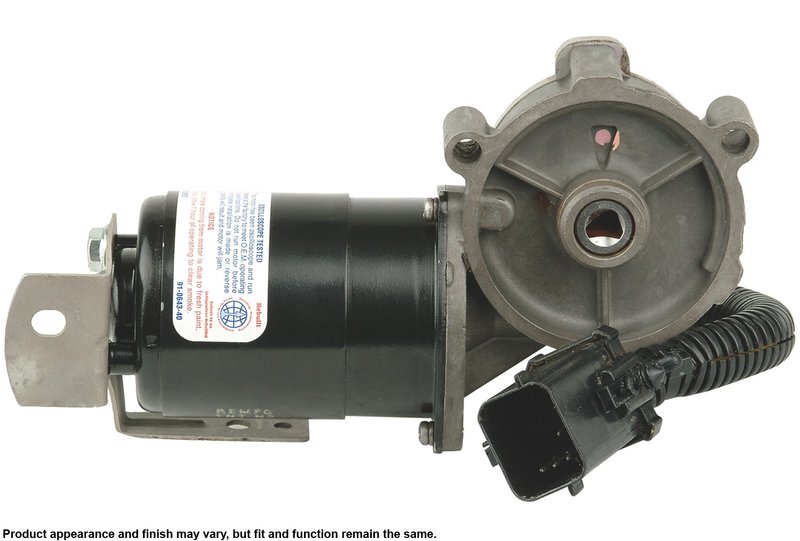

Cardone 48-204 Transfer Case Motor

Cardone Transfer Case Motor for Ford Explorer

Restore transfer case shifting with this remanufactured Cardone transfer case motor. Built for direct replacement use, it is designed for Ford Explorer and Mercury Mountaineer applications that need reliable 4WD engagement and consistent transfer case operation.

Key Features

• Remanufactured transfer case motor for electronic 4WD systems
• Steel component housing for durable construction
• Bullet connector/terminal configuration
• Motor magnets are fully recharged for dependable operation
• Transfer case motor sensors are replaced with new, O.E.-quality sensors
• Lubricant is applied in the correct amount for quiet operation and long service life
• Computer tested at three points during remanufacturing
• Package includes the transfer case motor and instruction sheet

Product Details

Cardone 48-204 is a remanufactured transfer case motor engineered to meet or exceed original equipment performance. The remanufacturing process is based on reverse engineering of failed units, allowing Cardone to address common design weaknesses and return the transfer case motor to dependable service. This part is a direct-replacement solution for 1996-2001 Ford Explorer, 2000-2001 Mercury Mountaineer, and 1995 Ford Explorer models with a 7 terminal rectangle plug. It is also a practical replacement when searching for a Ford Explorer transfer case motor or Mercury Mountaineer 4WD shift motor.

This part cross-references Ford F77Z7G360AA and XL2Z7G360AA for the same application.

What It Helps Fix

• Service 4WD light illuminated
• Transfer case not shifting into 4WD High or 4WD Low
• Weak or inconsistent transfer case motor movement
• Error codes related to transfer case motor operation
• Loss of electronic transfer case engagement

Installation Notes

Before installation, manually shift the transfer case into the 2-wheel drive position. The replacement motor drive is factory-set in 2WD, and the motor should not be operated while it is off the transfer case because that can damage the unit and set a fault code. If the transfer case is not in the correct position, shift it to match the motor position before mounting. For 1995 Ford Explorer applications, confirm the 7 terminal rectangle plug configuration before ordering. If the motor attempts to shift but sounds weak, inspect the front axle lock actuator and check for diagnostic trouble codes and calibration updates.

Quality Assurance

Each Cardone 48-204 transfer case motor is computer tested at three stages during remanufacturing to verify performance and reliability. The unit is remanufactured with replaced sensors, recharged magnets, and controlled lubrication to support consistent operation in Ford Explorer and Mercury Mountaineer transfer case systems.
