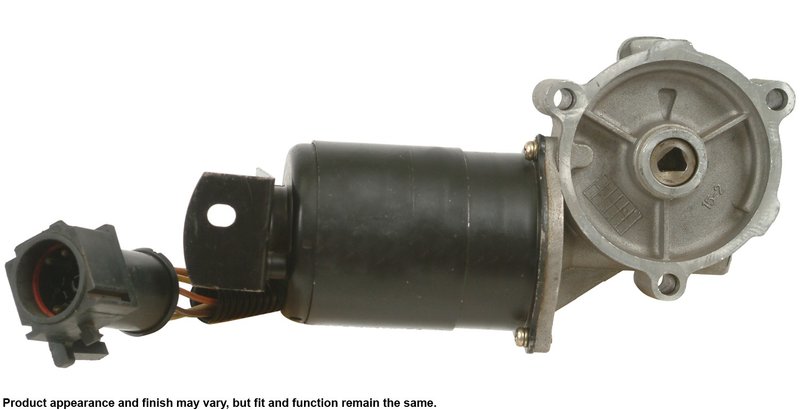

Cardone 48-206 Transfer Case Motor

Reliable Transfer Case Motor Replacement for Ford and Mazda Vehicles

The Cardone Transfer Case Motor 48-206 is a remanufactured component designed to restore proper transfer case function in select Ford and Mazda models. Engineered with a durable steel housing and bullet-style connector terminals, this motor ensures compatibility and reliable performance for your Bronco II, Explorer, Navajo, or Ranger.

• Remanufactured transfer case motor with steel component housing
• Bullet connector/terminal configuration for secure electrical connection
• Compatible with Ford Bronco II, Explorer, Mazda Navajo, and Ranger models
• Environmentally conscious design with E-Waste compliance
• Includes instruction sheet for installation guidance

About the Cardone Transfer Case Motor Product Line

The Cardone Transfer Case Motor product line focuses on remanufactured motors that meet OEM specifications for transfer case operation. These motors are designed to provide a cost-effective solution for restoring 4WD functionality by replacing faulty or worn transfer case motors. The 48-206 part number is part of this line, offering a reliable replacement option with quality-tested components and a steel housing for durability.

Product Details and Specifications

This transfer case motor features a robust steel housing that protects internal components from wear and environmental damage. The bullet-style connector ensures a secure and straightforward electrical connection, reducing installation complexity. The motor is factory-set in the 2-wheel drive position, which is standard for replacement units. It is important to note that the motor should not be operated off the transfer case to avoid damage. This remanufactured motor complies with E-Waste standards, reflecting an environmentally responsible manufacturing process.

Common Applications and Issues Addressed

• Restores 4WD operation in Ford Bronco II, Explorer, Mazda Navajo, and Ranger
• Resolves service 4WD light illumination and inoperative 4WD systems
• Fixes transfer case motor failure symptoms such as inability to shift drivetrain modes
• Addresses transfer case control module calibration issues related to motor function
• Corrects manual shifting difficulties into 2-wheel drive mode

Installation Notes and Tips

Before installation, ensure the transfer case is manually shifted into the 2-wheel drive position. Use appropriate tools to avoid damaging the motor or transfer case components. The replacement motor drive is factory-set in the 2-wheel drive position; verify alignment before securing. Do not operate the motor while it is off the transfer case to prevent damage. Follow the included instruction sheet carefully for proper installation procedures.

Quality Assurance and Warranty

This Cardone Transfer Case Motor 48-206 is a remanufactured product that undergoes rigorous testing to meet performance standards. The steel housing and bullet connector configuration contribute to its durability and reliable operation. While specific warranty details are not provided here, Cardone products typically include a limited warranty covering defects in materials and workmanship. Refer to the product documentation for exact warranty terms.
