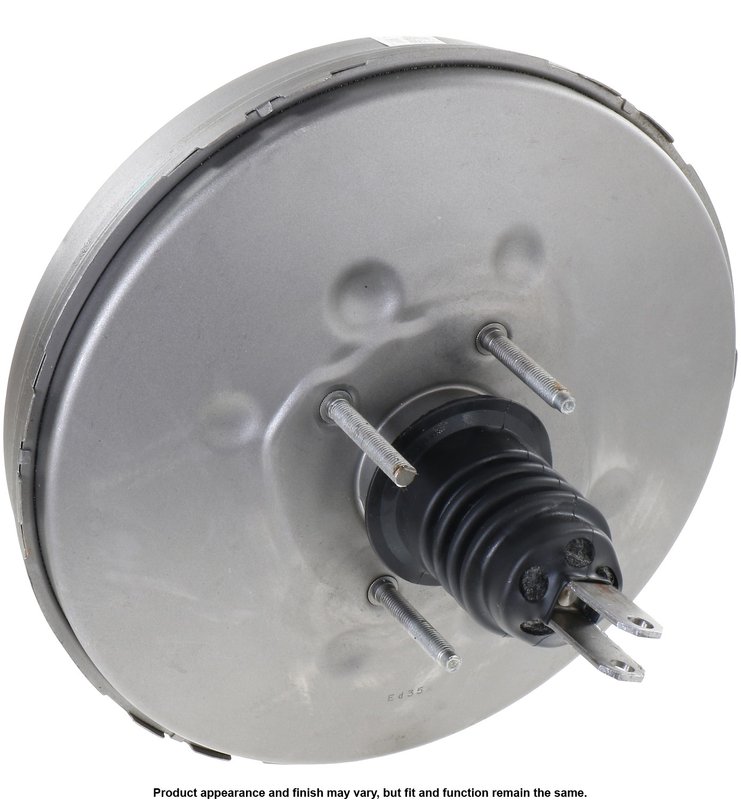

Cardone 54-74232 Power Brake Booster

Overview of Cardone Vacuum Power Brake Booster 54-74232

The Cardone Vacuum Power Brake Booster 54-74232 is a remanufactured power brake booster designed for select Ford, Lincoln, and Mazda vehicles. Engineered with a single diaphragm style and constructed from durable steel, this booster provides reliable brake assist for models like the Ford Edge, Lincoln MKX, and Mazda CX-9.

• Remanufactured power brake booster with single diaphragm design
• Diaphragm diameter: 10.978 inches (278.84 mm)
• Steel construction for durability and strength
• Compatible with Ford Edge, Lincoln MKX, and Mazda CX-9
• Master cylinder stud thread size: M8 x 1.25
• Includes booster and instruction manual; master cylinder not included
• Gray color finish

Details on the Vacuum Power Brake Booster Product Line

The Cardone Vacuum Power Brake Booster product line focuses on remanufactured brake boosters that restore original braking performance. This line emphasizes quality materials and precise diaphragm specifications to ensure consistent vacuum assist. The 54-74232 model fits within this line by offering a single diaphragm style booster with a 10.978-inch diameter, suitable for specific Ford, Lincoln, and Mazda vehicles requiring reliable brake hardware replacement.

Product Features and Specifications

This power brake booster features a single diaphragm style that provides effective vacuum assistance to reduce pedal effort. The booster’s diaphragm diameter measures 10.978 inches (278.84 mm), which is critical for matching the original equipment specifications. Constructed from steel, the booster offers strength and longevity under typical operating conditions. The master cylinder stud thread size is M8 x 1.25, ensuring compatibility with the corresponding brake system components. The product is finished in gray and comes with an instruction manual for installation guidance. Note that the master cylinder is not included with this part.

Compatible Vehicles and Applications

• Ford Edge models requiring a remanufactured power brake booster
• Lincoln MKX vehicles compatible with M8 x 1.25 stud thread size
• Mazda CX-9 models needing a single diaphragm vacuum power brake booster

Common Issues Addressed by Part Number 54-74232

• Reduced brake pedal responsiveness or increased pedal effort
• Vacuum leaks causing poor brake assist performance
• Damaged or worn diaphragm affecting brake booster function
• Brake pedal sinking or inconsistent braking feel
• Failure of original brake booster components in Ford, Lincoln, or Mazda models

Installation Notes and Tips

When installing the Cardone 54-74232 power brake booster, ensure the master cylinder stud thread size (M8 x 1.25) matches your vehicle’s specifications. Follow the included instruction manual carefully to avoid vacuum leaks and ensure proper mounting. It is recommended to inspect related brake system components during installation to maintain overall braking performance. Proper torque specifications should be observed to prevent damage to the booster or mounting hardware.

Quality Assurance and Warranty

This Cardone Vacuum Power Brake Booster is remanufactured to meet or exceed original equipment standards. The steel construction and precise diaphragm sizing contribute to reliable brake assist performance. While specific warranty details are not provided here, Cardone products typically come with a limited warranty covering defects in materials and workmanship. Consult product documentation or Cardone directly for exact warranty terms.
