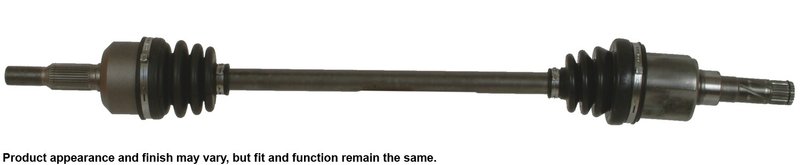

Cardone 60-1403 CV Axle Assembly - Rear Left

Remanufactured CV Axle for Rear Left Applications

Cardone CV Axle Assembly 60-1403 is a remanufactured driveline replacement built for direct vehicle fit and stable, vibration-free operation. It is engineered for rear left use on select Chevrolet, Pontiac, and Saturn models, including the Saturn Vue, Chevrolet Equinox, and Pontiac Torrent.

As part of the Cardone CV Axle Assembly line, this unit focuses on restoring smooth power transfer with verified shaft straightness, controlled grease flow, and a sealed boot design that helps keep contaminants out of the joint.

Key Features

• Remanufactured Original Equipment-style CV axle assembly for direct fit
• Fits 2002-2007 Saturn Vue, rear left
• Fits 2005-2006 Chevrolet Equinox, rear left
• Fits 2006 Pontiac Torrent, rear left
• Compressed length: 30.25 in.
• Spline input and output shaft connection style
• Self-lock axle nut locking type
• Spindle nut included; M20x1.5 thread size
• No ABS ring included
• Boot clamps are pneumatically crimped for a tight seal
• Shafts are inspected for runout to reduce vibration

Product Details

Cardone remanufactures CV drive axles with a focus on fit, seal integrity, and joint durability. The boot-to-housing seal is formed with pneumatic clamping equipment, helping create a water-tight connection that resists contamination. The internal geometry is maintained to support proper grease movement through the joint, while each shaft is checked for straightness to help deliver smooth performance at speed. This part cross-references Chevrolet and Saturn OE numbers 21991245 and 22717558 for the same application.

Common Problems This Part Can Address

• Clicking or snapping noises during turns
• Grease leakage around the axle boot
• Vibration during acceleration or at road speed
• Grinding from a worn outer CV joint
• ABS warning light caused by damaged sensor components during axle service

Installation Notes and Tips

• Do not let the CV axle hang unsupported during service.
• Use a torque wrench for the retaining nut and follow the vehicle manufacturer’s specifications.
• Do not reuse a prevailing-torque lock nut; install a new nut during service.
• Replace transaxle seals when installing CV drive axle assemblies to help prevent leaks.
• If the hub stub shaft is seized, use the proper removal method to avoid damage to the hub assembly.

Quality Assurance

Cardone remanufacturing uses inspected shafts, controlled grinding processes, and high-temperature grease to support long service life. The process also reduces energy and raw material use compared with manufacturing a new part, while maintaining OE-style fit and performance for applications such as the Saturn Vue, Chevrolet Equinox, and Pontiac Torrent. Part number 60-1403 is built to meet the listed fitment requirements for rear left installation.
