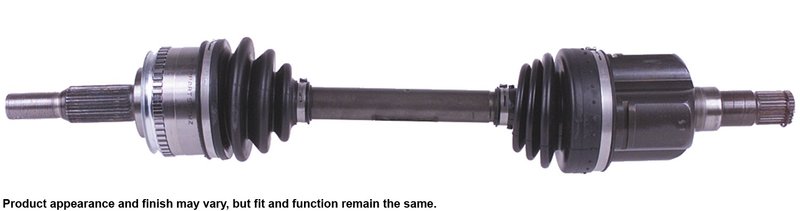

Cardone 60-2066 CV Axle Assembly - Front Left

Cardone 60-2066 CV Axle Assembly

Cardone 60-2066 is a remanufactured front left CV axle assembly for select Mercury Villager and Nissan Quest applications. It is built for direct OE-style fitment and stable driveline performance, with attention to boot sealing, shaft straightness, and joint geometry.

Key Features

• Remanufactured Original Equipment part for direct vehicle fit
• Fits 1993-2002 Mercury Villager, front left
• Fits 1993-2002 Nissan Quest, front left
• ABS ring included with 50 teeth
• Compressed length: 26.9375 in.
• Spline input and output shaft connection style
• Neoprene boots for improved resistance to environmental stress
• High-temperature, high-pressure grease for joint durability
• Shafts verified for straightness and runout control

Product Details

This Cardone CV axle assembly is remanufactured using processes developed from decades of CV drive axle experience. The boot clamps are pneumatically crimped to help create a tight seal between the boot and housing, while the original housing, race, and cage geometry is maintained through precision grinding. That helps support proper grease flow and consistent operation in Mercury Villager and Nissan Quest front left driveline service. Cardone 60-2066 is a practical OE-style replacement for drivers addressing worn or damaged axle components on these vehicles.

This part cross-references Mercury 1F5Z3B437AA and Nissan 392100B015 for the same application.

Common Problems This Part Can Address

• Clicking or snapping noises during hard turns and acceleration
• Grease leakage around a torn outer CV boot
• Front-end vibration caused by axle runout or shaft imbalance
• Grinding or binding from a worn outer CV joint
• ABS warning light concerns related to axle-mounted sensor ring damage

Installation Notes and Tips

• Do not let the axle hang unsupported during service; this can damage the inner joint.
• Use a torque wrench on the retaining nut and follow manufacturer torque specifications.
• Replace the prevailing torque lock nut rather than reusing the old one.
• Install new transaxle seals when replacing CV axle assemblies to help prevent leaks.
• Inspect the ABS sensor, ring, and wiring during installation to avoid signal issues.

Quality Assurance

Cardone remanufactures CV drive axles with 100% runout inspection to help reduce vibration and verify straight shafts before assembly. The process also uses materials and methods developed to reduce raw material and energy use compared with producing a new part.
