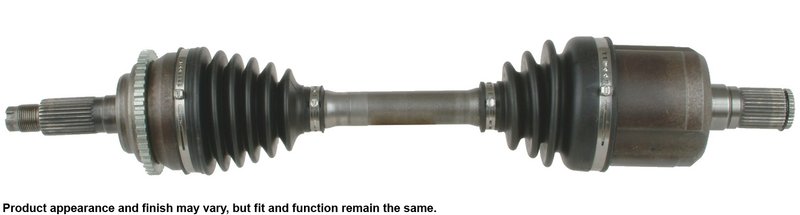

Cardone 60-2196 CV Axle Assembly - Front Left

Overview of Cardone CV Axle Assembly 60-2196

The Cardone CV Axle Assembly 60-2196 is designed specifically for Ford Fusion and Lincoln MKZ models. This complete axle assembly includes an ABS ring and is engineered to meet the demands of driveline and axle repairs, ensuring reliable performance and fitment.

• Includes ABS ring with 44 teeth for accurate wheel speed sensor readings
• Stake-type axle nut locking for secure installation
• Compressed length of 22.8125 inches for precise fit
• Spline connection style on both input and output shafts
• Comes with a complete axle and instruction sheet for installation guidance

About the Cardone CV Axle Assembly Product Line

The Cardone CV Axle Assembly product line focuses on delivering fully assembled constant velocity axles that are factory balanced to reduce vibrations. These assemblies are designed to replace worn or damaged CV axles in specific vehicle applications, such as the Ford Fusion and Lincoln MKZ. Each unit includes critical components like the ABS ring and uses a stake-type locking nut to ensure secure attachment and proper function within the driveline system.

Detailed Product Description

This Cardone CV Axle Assembly (part number 60-2196) features a 44-tooth ABS ring that integrates with your vehicle’s anti-lock braking system to maintain accurate sensor feedback. The axle nut locking type is stake, which provides a reliable mechanical lock to prevent loosening during operation. Both the input and output shafts use spline connections, ensuring compatibility with the vehicle’s drivetrain components. The compressed length of 22.8125 inches is engineered to match the factory specifications for a proper fit without modification. This assembly is supplied complete with an instruction sheet to assist with installation.

Common Applications and Problem Solving

• Replacement of worn or damaged CV axles on Ford Fusion and Lincoln MKZ
• Eliminating front-end grinding noises caused by faulty CV joints
• Resolving ABS warning lights triggered by damaged or missing ABS rings
• Fixing vibrations or wheel wobble during turns due to axle imbalance
• Addressing clicking or thumping noises when accelerating or turning

Installation Notes and Tips

• Never allow the CV drive axles to hang unsupported during installation to avoid joint damage
• Do not use an impact wrench to install the retaining nut; use a torque wrench to the manufacturer’s specifications
• Always replace the axle nut with a new one; do not reuse prevailing torque lock nuts
• Inspect the axle shaft for run out before installation to prevent vibrations
• Ensure the ABS ring is properly seated to maintain accurate sensor readings

Quality Assurance and Warranty

Each Cardone CV Axle Assembly 60-2196 undergoes 100% inspection for run out to prevent vibrations and ensure smooth operation. The shafts are factory balanced and include a properly installed ABS ring to maintain vehicle safety systems. While specific warranty details are not provided here, Cardone products typically meet or exceed OEM standards for durability and performance.
