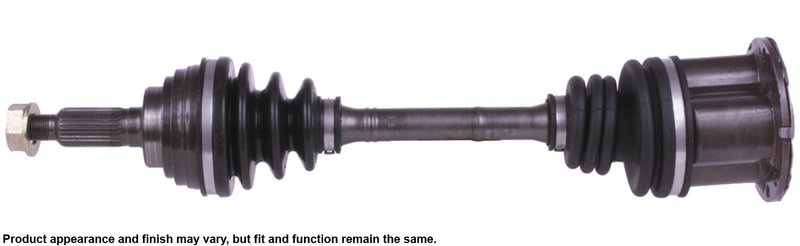

Cardone 60-5000 CV Axle Assembly - Front Left or Front Right

Overview of Cardone CV Axle Assembly 60-5000 for Toyota Camry

The Cardone CV Axle Assembly part number 60-5000 is designed specifically for Toyota Camry models. This complete axle assembly provides a reliable driveline solution, engineered to meet factory specifications and restore proper vehicle performance.

• Compatible with Toyota Camry vehicles
• Compressed length of 20.875 inches for precise fitment
• Standard axle nut locking type for secure installation
• Input shaft bolt-on connection style with 6 bolts
• Output shaft spline connection for durability
• Does not include ABS ring
• Comes with complete axle and instruction sheet

About the Cardone CV Axle Assembly Product Line

The Cardone CV Axle Assembly product line focuses on delivering complete constant velocity axle solutions that meet or exceed OEM standards. These assemblies are designed to provide a direct replacement for worn or damaged CV axles, ensuring proper driveline function and vehicle safety. The 60-5000 model is part of this line, offering a balanced shaft inspected for run out to minimize vibrations and maintain smooth operation.

Detailed Product Description

This Cardone CV Axle Assembly (60-5000) features a compressed length of 20.875 inches, making it suitable for specific Toyota Camry applications. The axle nut locking type is standard, which requires a new nut upon installation to ensure secure fastening. The input shaft uses a bolt-on connection style with six bolts, while the output shaft connects via spline, providing a robust and reliable drivetrain link. Note that this assembly does not include an ABS ring, so it is intended for vehicles without ABS sensor requirements or where the ABS ring is retained from the original axle.

Common Applications and Issues Addressed

• Replacement of worn or damaged CV axle shafts on Toyota Camry
• Eliminating front-end grinding noises caused by faulty CV joints
• Resolving vibrations or wheel wobble during turns
• Fixing clicking sounds when accelerating or turning
• Addressing driveline shifting or vibration issues related to CV axle failure

Installation Notes and Tips

When installing the Cardone CV Axle Assembly 60-5000, avoid letting the CV axles hang unsupported to prevent joint damage. Use a standard axle nut locking type and always replace the axle nut with a new one; do not reuse prevailing torque lock nuts. The input shaft bolts should be securely fastened following the torque specifications for your Toyota Camry. Avoid using impact wrenches on the retaining nut to prevent damage. Refer to the included instruction sheet for detailed installation guidance.

Quality Assurance and Warranty

Each Cardone CV Axle Assembly undergoes 100% inspection for run out to prevent vibrations and ensure smooth operation. The shafts are factory balanced and tested to meet OEM standards. While specific warranty details are not provided here, Cardone products typically come with a limited warranty covering defects in materials and workmanship. Consult the product packaging or Cardone documentation for exact warranty terms.
