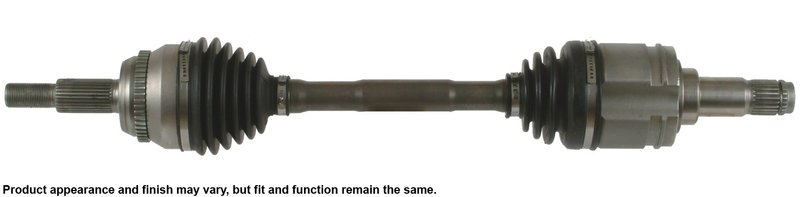

Cardone 60-5285 CV Axle Assembly - Front Left

Reliable CV Axle Assembly for Lexus and Toyota Vehicles

The Cardone CV Axle Assembly 60-5285 is engineered to restore driveline performance for select Lexus and Toyota models. Designed with precision, this axle assembly ensures smooth power transfer and maintains ABS functionality for vehicles like the Avalon, Highlander, and RX450h.

• Includes ABS ring with 48 teeth for accurate wheel speed sensing
• Stake-type axle nut locking for secure installation
• Compressed length of 26 inches for proper fitment
• Spline input shaft with 24 splines for reliable connection
• Outboard and input shaft connection styles use spline design

About the Cardone CV Axle Assembly Product Line

The Cardone CV Axle Assembly line focuses on delivering complete constant velocity axle solutions that meet or exceed OEM specifications. Each assembly, including part number 60-5285, is factory balanced to reduce vibrations and includes necessary components such as the ABS ring to maintain vehicle safety systems. This product line is tailored for driveline and axle repairs on various Lexus and Toyota models, ensuring compatibility and durability.

Product Details and Specifications

This CV axle assembly features a 48-tooth ABS ring that integrates seamlessly with the vehicle’s anti-lock braking system, helping to maintain accurate wheel speed data. The stake-type axle nut locking mechanism provides a secure fit, preventing loosening during operation. With a compressed length of 26 inches, this axle assembly fits the driveline geometry of Lexus Avalon, Highlander, and RX450h models. Both input and output shafts utilize spline connections, with the input shaft having 24 splines for a precise and durable fit.

Common Applications and Problem Resolution

• Eliminates front-end grinding noises caused by worn CV joints
• Resolves vibrations and wheel wobble during turns
• Restores ABS sensor functionality by replacing damaged ABS rings
• Fixes clicking sounds when accelerating or turning
• Addresses drivetrain shifting or vibration issues related to faulty axles

Installation Notes and Tips

When installing the Cardone CV Axle Assembly 60-5285, avoid letting the CV axles hang unsupported to prevent joint damage. Use a torque wrench rather than an impact wrench to install the retaining nut, and always replace the axle nut with a new one to ensure proper locking. Ensure the ABS ring is correctly positioned to maintain sensor accuracy. Factory balancing of the shaft reduces the risk of vibrations after installation.

Quality Assurance and Warranty

Each Cardone CV Axle Assembly undergoes 100% run-out inspection to minimize vibrations and ensure smooth operation. The assemblies are built to meet OEM standards for fit and function. While specific warranty details are not provided here, Cardone products typically come with a limited warranty covering defects in materials and workmanship.
