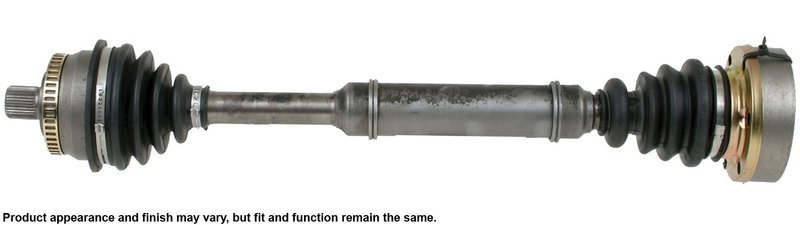

Cardone 60-7205 CV Axle Assembly - Front Left

Overview of Cardone CV Axle Assembly 60-7205

The Cardone CV Axle Assembly 60-7205 is designed specifically for Audi A4 and Volkswagen Passat models. This complete axle assembly includes an ABS ring with 45 teeth, ensuring proper integration with your vehicle's anti-lock braking system for reliable performance.

• Includes ABS ring with 45 teeth for accurate ABS sensor operation
• Compressed length of 24.0625 inches for precise fitment
• Bolt-on input shaft connection style with 6 bolts
• Spline output shaft connection for secure installation
• Comes with complete axle and instruction sheet for ease of installation

About the Cardone CV Axle Assembly Product Line

The Cardone CV Axle Assembly product line focuses on delivering fully assembled constant velocity axles that meet or exceed OEM specifications. These assemblies are factory balanced and inspected for run out to minimize vibrations, providing a reliable driveline component for vehicles like the Audi A4 and Volkswagen Passat. The inclusion of an ABS ring ensures compatibility with modern vehicle safety systems.

Detailed Product Description

This Cardone CV Axle Assembly 60-7205 is engineered to replace worn or damaged CV axles on select Audi and Volkswagen models. The assembly features a bolt-on input shaft connection with six bolts and a spline output shaft connection, ensuring a secure and precise fit. The ABS ring included with 45 teeth supports the vehicle’s anti-lock braking system, maintaining proper sensor function and safety. With a compressed length of 24.0625 inches, this axle assembly is designed to match factory dimensions for straightforward installation and optimal driveline performance.

Common Applications and Issues Addressed

• Eliminates front-end grinding noises caused by worn CV joints
• Resolves ABS warning light issues related to faulty ABS rings
• Fixes wheel wobble or vibrations during turns
• Replaces ruptured or damaged CV axle boots to prevent grease leakage
• Corrects drivetrain vibrations caused by unbalanced or damaged axles

Installation Notes and Tips

• Never allow CV axles to hang unsupported during installation to avoid joint damage
• Do not reuse prevailing torque lock nuts; always install new ones
• Avoid using impact wrenches on retaining nuts to prevent damage
• Ensure the ABS ring is properly seated to maintain sensor accuracy
• Follow the included instruction sheet carefully for bolt torque specifications

Quality Assurance and Warranty

Each Cardone CV Axle Assembly 60-7205 undergoes 100% inspection for run out to prevent vibrations and ensure smooth operation. The shafts are factory balanced to meet OEM standards. While specific warranty details are not provided here, Cardone products typically come with a limited warranty covering defects in materials and workmanship.
