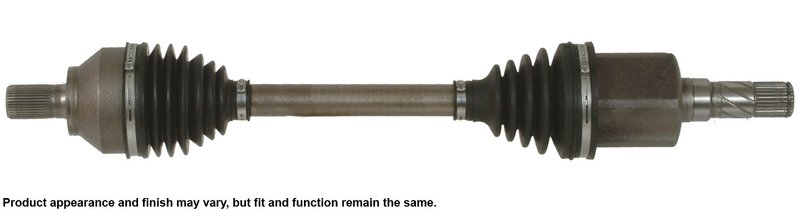

Cardone 60-8162 CV Axle Assembly - Front Left

Cardone CV Axle Assembly for Mazda 3

Cardone 60-8162 is a remanufactured CV axle assembly for the front left position on select 2004-2005 Mazda 3 models. It is built for direct OE-style fitment and vibration-free operation, with attention to boot sealing, joint geometry, and shaft straightness.

Key Features

• Remanufactured original equipment part for a precise vehicle fit
• Fits 2004 Mazda 3, front left
• Fits 2005 Mazda 3, front left, for vehicles manufactured up to January 6, 2005
• Pneumatically crimped boot clamps help create a tight seal at the boot and housing
• 100% run-out inspection helps reduce vibration at speed
• High-temperature, high-pressure grease supports joint durability
• Neoprene boots provide resistance to environmental stress and cracking
• Compressed length: 22.6875 in.
• Spline input and output shaft connection styles
• Cardone part number 60-8162

Product Details

Cardone’s CV Axle Assembly line focuses on remanufactured driveline components that restore OE fit and function. For this Mazda 3 front left axle, the remanufacturing process preserves the original housing, race, and cage geometry while verifying shaft straightness to help maintain smooth power transfer. The sealed boot design and durable grease formulation are used to support long service life in demanding driveline conditions. This part number, 60-8162, is a direct replacement choice for drivers searching for a front left CV axle for a 2004 Mazda 3 or a 2005 Mazda 3 built before January 6, 2005.

Common Problems This Part Can Address

• Clicking or snapping noises during hard turns
• Grease on the chassis or suspension from a torn outer boot
• Front-end vibration or thumping during acceleration
• Wobble or noise caused by a worn outer CV joint
• Binding or driveline movement related to axle wear

Installation Notes and Tips

• Do not let the axle hang unsupported during service; this can damage the inner joint.
• Use a torque wrench on the retaining nut and tighten to manufacturer specifications.
• Do not reuse a prevailing-torque lock nut; install a new nut.
• Replace transaxle seals when installing CV drive axle assemblies to help prevent leaks.
• If the ABS warning light appears after installation, inspect the sensor ring, sensor, and nearby wiring for damage.

Quality Assurance

Cardone remanufactures CV drive axles with 100% run-out verification to help prevent vibration and maintain consistent performance. The process also uses controlled boot clamping, precision grinding, and OE-based geometry to support reliable operation in the Mazda 3 application. Part number 60-8162 is a remanufactured driveline component built to OE-style standards.
