Cardone 65-1029 Drive Shaft - Front
OE Quality 60-Day Returns
Cardone
 Driveshaft / Prop Shaft

Cardone 65-1029 Drive Shaft - Front

Brand Cardone 65-1029
Position Front
Drive Shaft Material Steel
E-Waste No
Greasable Yes
Length (in) 32 1/2"
Length (mm) 826
Measurement Method Measurement is taken from U-Joint to end of CV Dust Shield
Product Condition New
Tubing Outer Diameter (in) 2.01
Tubing Outer Diameter (mm) 51
Product line Driveshaft / Prop Shaft
Fits Chevrolet, GMC, and Buick · 26 vehicles

O.E. matched design. Built to match form, fit and function for straightforward replacement.

100% dynamically balanced. Helps deliver vibration-free operation and smoother performance at speed.

Steel construction. Durable driveline tubing with greasable joints for easier maintenance.

Cross-references Buick 25833035 and Chevrolet 25833035 for the same application. See all 2.

$450.03Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.

Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Order total $450.03
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Drive Shaft options

Cardone 65-1029 Front Drive Shaft

Restore driveline performance with this Cardone Driveshaft / Prop Shaft for select Chevrolet, GMC, and Buick front applications. Cardone 65-1029 is built to OE form, fit, and function, with steel construction and dynamic balancing for smoother operation across the speed range.

Key Features

  • Steel drive shaft construction for durable service
  • Built to match OE form, fit, and function
  • 100% dynamically balanced at 3200 RPM for reduced vibration
  • Greasable design for serviceability
  • Lubricated slip yokes help reduce premature wear

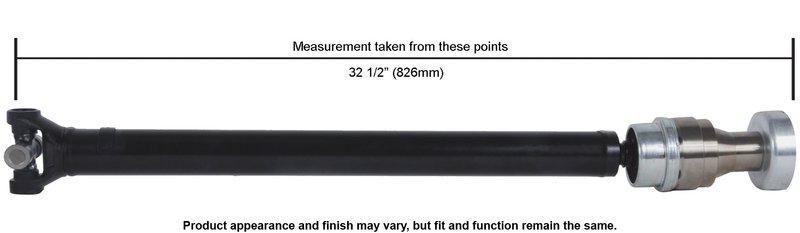

  • 32 1/2 in. length, measured from U-joint to end of CV dust shield
  • 2.01 in. tubing outer diameter

Product Details

This Cardone driveshaft is engineered from years of prop shaft testing and material analysis to deliver a replacement that follows original equipment dimensions and operating characteristics. The Cardone 65-1029 is a new front drive shaft for vehicles that require a 32-1/2 in. shaft length, with measurement taken from the U-joint to the end of the CV dust shield. It is a direct-fit driveline component for Trailblazer, Envoy, Rainier, Trailblazer EXT, Envoy XL, and Envoy XUV front applications.

This part cross-references Buick 25833035 and Chevrolet 25833035 for the same application.

What It Helps Fix

  • Driveline vibration at highway or acceleration speeds
  • Worn slip yoke movement and related driveline noise
  • Excessive play from a damaged or fatigued prop shaft
  • Loss of smooth power transfer to the front driveline
  • Fitment issues caused by an incorrect shaft length or tubing size

Installation Notes

Verify the measurement method before ordering: this shaft is measured from the U-joint to the end of the CV dust shield. Confirm front-position fitment and compare the 32 1/2 in. length and 2.01 in. tubing outer diameter against the original part before installation. Proper driveline alignment and torque procedures help maintain balance and joint life.

Quality Assurance

Cardone engineers and builds this prop shaft to OE-level specifications and balances each unit dynamically for vibration-free performance. The greasable design and lubricated slip yokes support long-term service in demanding driveline use.

Compatible Vehicles

  • Fits 2006-2009 Chevrolet Trailblazer, front
  • Fits 2005-2009 GMC Envoy, front
  • Fits 2004-2007 Buick Rainier, front
  • Fits 2003-2006 Chevrolet Trailblazer EXT, front
  • Fits 2003-2006 GMC Envoy XL, front
  • Fits 2004-2005 GMC Envoy XUV, front

Related reading

This part fits 26 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelLitersCylindersPositionNotes
2009ChevroletTrailblazer6.0LV8FrontSupplied as new; with 32-1/2" (825 mm) Long Driveshaft; Measurement taken from U-Joint to end of CV Dust Shield; Driveshaft / Prop Shaft
2009GMCEnvoy5.3LV8FrontSupplied as new; with 32-1/2" (825 mm) Long Driveshaft; Measurement taken from U-Joint to end of CV Dust Shield; Driveshaft / Prop Shaft
2008ChevroletTrailblazer6.0LV8FrontSupplied as new; with 32-1/2" (825 mm) Long Driveshaft; Measurement taken from U-Joint to end of CV Dust Shield; Driveshaft / Prop Shaft
2008ChevroletTrailblazer5.3LV8FrontSupplied as new; with 32-1/2" (825 mm) Long Driveshaft; Measurement taken from U-Joint to end of CV Dust Shield; Driveshaft / Prop Shaft
2008GMCEnvoy5.3LV8FrontSupplied as new; with 32-1/2" (825 mm) Long Driveshaft; Measurement taken from U-Joint to end of CV Dust Shield; Driveshaft / Prop Shaft
2007BuickRainier5.3LV8FrontSupplied as new; with 32-1/2" (825 mm) Long Driveshaft; Measurement taken from U-Joint to end of CV Dust Shield; Driveshaft / Prop Shaft
2007ChevroletTrailblazer6.0LV8FrontSupplied as new; with 32-1/2" (825 mm) Long Driveshaft; Measurement taken from U-Joint to end of CV Dust Shield; Driveshaft / Prop Shaft
2007ChevroletTrailblazer5.3LV8FrontSupplied as new; with 32-1/2" (825 mm) Long Driveshaft; Measurement taken from U-Joint to end of CV Dust Shield; Driveshaft / Prop Shaft
2007GMCEnvoy5.3LV8FrontSupplied as new; with 32-1/2" (825 mm) Long Driveshaft; Measurement taken from U-Joint to end of CV Dust Shield; Driveshaft / Prop Shaft
2006BuickRainier5.3LV8FrontSupplied as new; with 32-1/2" (825 mm) Long Driveshaft; Measurement taken from U-Joint to end of CV Dust Shield; Driveshaft / Prop Shaft
2006ChevroletTrailblazer6.0LV8FrontSupplied as new; with 32-1/2" (825 mm) Long Driveshaft; Measurement taken from U-Joint to end of CV Dust Shield; Driveshaft / Prop Shaft
2006ChevroletTrailblazer5.3LV8FrontSupplied as new; with 32-1/2" (825 mm) Long Driveshaft; Measurement taken from U-Joint to end of CV Dust Shield; Driveshaft / Prop Shaft
2006ChevroletTrailblazer EXT5.3LV8FrontSupplied as new; with 32-1/2" (825 mm) Long Driveshaft; Measurement taken from U-Joint to end of CV Dust Shield; Driveshaft / Prop Shaft
2006GMCEnvoy5.3LV8FrontSupplied as new; with 32-1/2" (825 mm) Long Driveshaft; Measurement taken from U-Joint to end of CV Dust Shield; Driveshaft / Prop Shaft
2006GMCEnvoy XL5.3LV8FrontSupplied as new; with 32-1/2" (825 mm) Long Driveshaft; Measurement taken from U-Joint to end of CV Dust Shield; Driveshaft / Prop Shaft
2005BuickRainier5.3LV8FrontSupplied as new; with 32-1/2" (825 mm) Long Driveshaft; Measurement taken from U-Joint to end of CV Dust Shield; Driveshaft / Prop Shaft
2005ChevroletTrailblazer EXT5.3LV8FrontSupplied as new; with 32-1/2" (825 mm) Long Driveshaft; Measurement taken from U-Joint to end of CV Dust Shield; Driveshaft / Prop Shaft
2005GMCEnvoy5.3LV8FrontSupplied as new; with 32-1/2" (825 mm) Long Driveshaft; Measurement taken from U-Joint to end of CV Dust Shield; Driveshaft / Prop Shaft
2005GMCEnvoy XL5.3LV8FrontSupplied as new; with 32-1/2" (825 mm) Long Driveshaft; Measurement taken from U-Joint to end of CV Dust Shield; Driveshaft / Prop Shaft
2005GMCEnvoy XUV5.3LV8FrontSupplied as new; with 32-1/2" (825 mm) Long Driveshaft; Measurement taken from U-Joint to end of CV Dust Shield; Driveshaft / Prop Shaft
2004BuickRainier5.3LV8FrontSupplied as new; with 32-1/2" (825 mm) Long Driveshaft; Measurement taken from U-Joint to end of CV Dust Shield; Driveshaft / Prop Shaft
2004ChevroletTrailblazer EXT5.3LV8FrontSupplied as new; with 32-1/2" (825 mm) Long Driveshaft; Measurement taken from U-Joint to end of CV Dust Shield; Driveshaft / Prop Shaft
2004GMCEnvoy XL5.3LV8FrontSupplied as new; with 32-1/2" (825 mm) Long Driveshaft; Measurement taken from U-Joint to end of CV Dust Shield; Driveshaft / Prop Shaft
2004GMCEnvoy XUV5.3LV8FrontSupplied as new; with 32-1/2" (825 mm) Long Driveshaft; Measurement taken from U-Joint to end of CV Dust Shield; Driveshaft / Prop Shaft
2003ChevroletTrailblazer EXT5.3LV8FrontSupplied as new; with 32-1/2" (825 mm) Long Driveshaft; Measurement taken from U-Joint to end of CV Dust Shield; Driveshaft / Prop Shaft
2003GMCEnvoy XL5.3LV8FrontSupplied as new; with 32-1/2" (825 mm) Long Driveshaft; Measurement taken from U-Joint to end of CV Dust Shield; Driveshaft / Prop Shaft
Directly replaces or cross-references 2 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
Buick — 25833035Chevrolet — 25833035
