Cardone 65-2004 Drive Shaft - Rear
OE Quality 60-Day Returns
Cardone
 Driveshaft / Prop Shaft

Cardone 65-2004 Drive Shaft - Rear

Brand Cardone 65-2004
Position Rear
Drive Shaft Material Steel
E-Waste No
Greasable No
Length (in) 88 3/8"
Length (mm) 2244
Measurement Method Measurement taken from end of CV joint flange face to end of CV joint flange face
Product Condition New
Tubing Outer Diameter (in) 2.5
Tubing Outer Diameter (mm) 63.5
Product line Driveshaft / Prop Shaft
Fits Ford and Mercury · 9 vehicles

OE direct replacement. Built to match O.E. form, fit and function.

Steel construction. Engineered for durability and dependable driveline performance.

100% dynamically balanced. Helps deliver vibration-free operation and longer joint life.

Cross-references Ford 5F9Z4R602AA, Ford 6F9Z4R602A and Mercury 5F9Z4R602AA for the same application. See all 4.

$669.20Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.

Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Order total $669.20
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Drive Shaft options

Cardone 65-2004 Rear Drive Shaft

Cardone 65-2004 is a new rear drive shaft for select Ford and Mercury applications, including the Ford Five Hundred, Ford Freestyle, and Mercury Montego. Built to OE form, fit, and function, it is engineered for direct replacement service with balanced operation at highway speeds.

Key Features

  • Steel drive shaft construction for driveline service

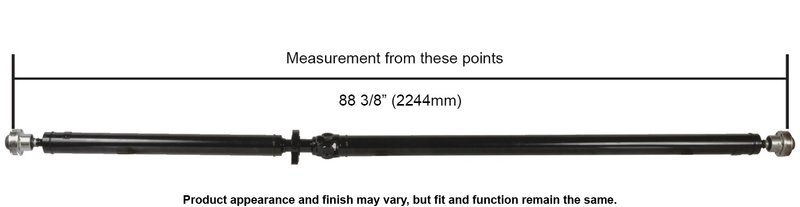

  • 88 3/8 in. overall length, measured from CV joint flange face to CV joint flange face
  • 2.5 in. tubing outer diameter
  • 100% dynamically balanced at 3200 RPM for vibration-free operation and longer joint life
  • Lubricated slip yokes help reduce premature wear
  • New unit built to match OE dimensions and performance

Product Details

This Cardone Driveshaft / Prop Shaft line focuses on replacement driveline components engineered from the ground up for OE-style fit and function. Part number 65-2004 is a rear drive shaft made from steel and built for the 2005-2007 Ford Five Hundred, 2005-2007 Ford Freestyle, and 2005-2007 Mercury Montego. It is measured end-to-end at the CV joint flange faces, which helps confirm correct length during replacement. This part cross-references Ford and Mercury OE numbers 5F9Z4R602AA and 6F9Z4R602A for the same application.

What It Helps Correct

  • Driveline vibration at speed
  • Noise caused by worn or out-of-balance prop shaft components
  • Fitment issues from an incorrect shaft length
  • Wear related to dry slip yokes
  • Loss of smooth rear driveline operation

Installation Notes and Tips

Verify the vehicle’s rear driveline configuration and compare the existing shaft length to the listed 88 3/8 in. measurement before installation. Confirm flange-to-flange measurement points, inspect related driveline joints and mounting points, and replace only after the vehicle is properly supported. For best results, match the application to the exact year, make, and model listed for the Ford Five Hundred, Ford Freestyle, or Mercury Montego.

Quality Assurance

Cardone engineers and tests prop shafts to meet OE performance targets, and each unit is dynamically balanced for smooth operation. The part is supplied new and built for consistent driveline performance in the specified rear applications.

Related reading

This part fits 9 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelDrive TypePositionNotes
2007FordFive HundredAWDRearSupplied as new; with 88-3/8" (2244 mm) Long Driveshaft; Measurement taken from end of CV joint flange face to end of CV joint flange face; Driveshaft / Prop Shaft
2007FordFreestyleAWDRearSupplied as new; with 88-3/8" (2244 mm) Long Driveshaft; Measurement taken from end of CV joint flange face to end of CV joint flange face; Driveshaft / Prop Shaft
2007MercuryMontegoAWDRearSupplied as new; with 88-3/8" (2244 mm) Long Driveshaft; Measurement taken from end of CV joint flange face to end of CV joint flange face; Driveshaft / Prop Shaft
2006FordFive HundredAWDRearSupplied as new; with 88-3/8" (2244 mm) Long Driveshaft; Measurement taken from end of CV joint flange face to end of CV joint flange face; Driveshaft / Prop Shaft
2006FordFreestyleAWDRearSupplied as new; with 88-3/8" (2244 mm) Long Driveshaft; Measurement taken from end of CV joint flange face to end of CV joint flange face; Driveshaft / Prop Shaft
2006MercuryMontegoAWDRearSupplied as new; with 88-3/8" (2244 mm) Long Driveshaft; Measurement taken from end of CV joint flange face to end of CV joint flange face; Driveshaft / Prop Shaft
2005FordFive HundredAWDRearSupplied as new; with 88-3/8" (2244 mm) Long Driveshaft; Measurement taken from end of CV joint flange face to end of CV joint flange face; Driveshaft / Prop Shaft
2005FordFreestyleAWDRearSupplied as new; with 88-3/8" (2244 mm) Long Driveshaft; Measurement taken from end of CV joint flange face to end of CV joint flange face; Driveshaft / Prop Shaft
2005MercuryMontegoAWDRearSupplied as new; with 88-3/8" (2244 mm) Long Driveshaft; Measurement taken from end of CV joint flange face to end of CV joint flange face; Driveshaft / Prop Shaft
Directly replaces or cross-references 4 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
Ford — 5F9Z4R602AAFord — 6F9Z4R602AMercury — 5F9Z4R602AAMercury — 6F9Z4R602A
