Cardone 65-7002 Drive Shaft - Front
| Brand | Cardone 65-7002 |
|---|---|
| Position | Front |
| Drive Shaft Material | Steel |
| E-Waste | No |
| Greasable | Yes |
| Length (in) | 29 1/2" |
| Length (mm) | 749 |

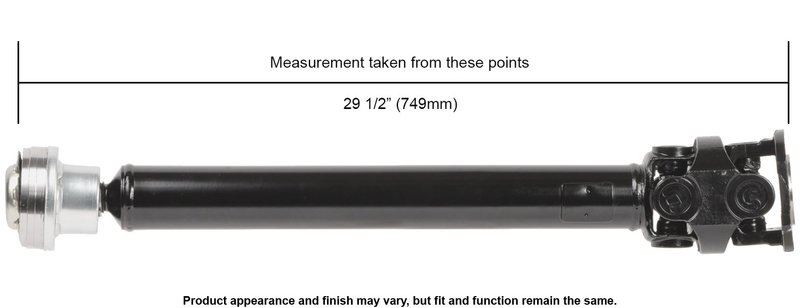

| Measurement Method | Measurement taken from end of flange face to end of CV joint flange face |
| Product Condition | New |
| Tubing Outer Diameter (in) | 2.5 |
| Tubing Outer Diameter (mm) | 63.5 |
| Product line | Driveshaft / Prop Shaft |
| Fits | Mercedes-Benz · 11 vehicles |
OE match. Built to match O.E. form, fit and function.
Steel construction. Durable driveline strength with a 2.5 in. tube diameter.
Balanced for smoothness. 100% dynamically balanced for vibration-free operation and longer joint life.
Cross-references Mercedes-Benz 1634100301 for the same application. See all 1.
Mercedes-Benz ML Front Drive Shaft Replacement
Restore driveline smoothness with this CARDONE driveshaft / prop shaft for select Mercedes-Benz ML applications. Built as a new steel drive shaft and engineered to match original equipment form, fit, and function, it is designed for front-position service on the ML500, ML55 AMG, and ML430.
Cardone’s Driveshaft / Prop Shaft line focuses on OE-style replacement parts built from tested materials and balanced for stable operation. This part number, 65-7002, is 100% dynamically balanced at 3200 RPMs and uses greasable joints with lubricated slip yokes to support long-term service life.
Key Features
- Steel drive shaft construction
- New replacement part for front driveline service
- Built to match OE form, fit, and function
- 100% dynamically balanced at 3200 RPMs for vibration-free operation
- Greasable design for serviceability
- Lubricated slip yokes help reduce premature wear
- 29 1/2 in. overall length, measured from flange face to CV joint flange face
- 2.5 in. tubing outer diameter
Detailed Description
Cardone 65-7002 is a front drive shaft for Mercedes-Benz ML models that require a 29-1/2 in. long prop shaft. It is engineered for OE-style replacement performance and built from steel tubing with a 2.5 in. outer diameter. The shaft is dynamically balanced to help reduce vibration at speed and support smoother driveline operation. This part cross-references Mercedes-Benz 1634100301 for the same application.
Common Driveline Issues This Part Addresses
- Driveline vibration at highway speeds
- Worn or noisy front prop shaft operation
- Excess play from aging slip yokes or joints
- Loss of smooth power transfer through the driveline
- Replacement needs after shaft wear, damage, or imbalance
Installation Notes and Fitment
- Fits 2002-2005 Mercedes-Benz ML500, front; supplied as new; with 29-1/2 in. (749 mm) long driveshaft.
- Fits 2000-2003 Mercedes-Benz ML55 AMG, front; supplied as new; with 29-1/2 in. (749 mm) long driveshaft.
- Fits 1999-2001 Mercedes-Benz ML430, front; supplied as new; with 29-1/2 in. (749 mm) long driveshaft.
- Measurement is taken from end of flange face to end of CV joint flange face.
- Verify flange-to-flange length and driveline configuration before installation.
- Greasable joints allow routine service where applicable.
Quality Assurance
Cardone engineers and tests prop shafts to deliver OE-matched performance and consistent balance. Part number 65-7002 is a new replacement driveshaft built for vibration-free operation and dependable driveline service in select Mercedes-Benz ML front applications.
| Year | Make | Model | Drive Type | Position | Notes |
|---|---|---|---|---|---|
| 2005 | Mercedes-Benz | ML500 | 4WD | Front | Supplied as new; with 29-1/2" (749 mm) Long Driveshaft; Measurement taken from end of flange face to end of CV joint flange face; Driveshaft / Prop Shaft |
| 2004 | Mercedes-Benz | ML500 | 4WD | Front | Supplied as new; with 29-1/2" (749 mm) Long Driveshaft; Measurement taken from end of flange face to end of CV joint flange face; Driveshaft / Prop Shaft |
| 2003 | Mercedes-Benz | ML500 | 4WD | Front | Supplied as new; with 29-1/2" (749 mm) Long Driveshaft; Measurement taken from end of flange face to end of CV joint flange face; Driveshaft / Prop Shaft |
| 2003 | Mercedes-Benz | ML55 AMG | 4WD | Front | Supplied as new; with 29-1/2" (749 mm) Long Driveshaft; Measurement taken from end of flange face to end of CV joint flange face; Driveshaft / Prop Shaft |
| 2002 | Mercedes-Benz | ML500 | 4WD | Front | Supplied as new; with 29-1/2" (749 mm) Long Driveshaft; Measurement taken from end of flange face to end of CV joint flange face; Driveshaft / Prop Shaft |
| 2002 | Mercedes-Benz | ML55 AMG | 4WD | Front | Supplied as new; with 29-1/2" (749 mm) Long Driveshaft; Measurement taken from end of flange face to end of CV joint flange face; Driveshaft / Prop Shaft |
| 2001 | Mercedes-Benz | ML430 | 4WD | Front | Supplied as new; with 29-1/2" (749 mm) Long Driveshaft; Measurement taken from end of flange face to end of CV joint flange face; Driveshaft / Prop Shaft |
| 2001 | Mercedes-Benz | ML55 AMG | 4WD | Front | Supplied as new; with 29-1/2" (749 mm) Long Driveshaft; Measurement taken from end of flange face to end of CV joint flange face; Driveshaft / Prop Shaft |
| 2000 | Mercedes-Benz | ML430 | 4WD | Front | Supplied as new; with 29-1/2" (749 mm) Long Driveshaft; Measurement taken from end of flange face to end of CV joint flange face; Driveshaft / Prop Shaft |
| 2000 | Mercedes-Benz | ML55 AMG | 4WD | Front | Supplied as new; with 29-1/2" (749 mm) Long Driveshaft; Measurement taken from end of flange face to end of CV joint flange face; Driveshaft / Prop Shaft |
| 1999 | Mercedes-Benz | ML430 | 4WD | Front | Supplied as new; with 29-1/2" (749 mm) Long Driveshaft; Measurement taken from end of flange face to end of CV joint flange face; Driveshaft / Prop Shaft |
