Cardone 65-9109 Drive Shaft - Front
OE Quality 60-Day Returns
Cardone
 Driveshaft / Prop Shaft

Cardone 65-9109 Drive Shaft - Front

Brand Cardone 65-9109
Position Front
Drive Shaft Material Steel
E-Waste No
Greasable No
Length (in) 28 7/8"
Length (mm) 734

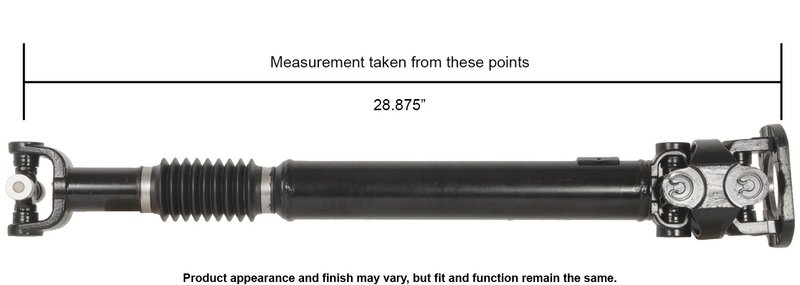

Measurement Method Measurement is taken from end of the flange to the center of U-joint on the opposite side
Product Condition New
Tubing Outer Diameter (in) 2.5
Tubing Outer Diameter (mm) 63.5
Product line Driveshaft / Prop Shaft
Fits Dodge · 6 vehicles

OE-matched design. Built to match O.E. form, fit and function.

Steel construction. Durable driveline shaft built for dependable service.

Dynamically balanced. Helps deliver vibration-free operation and longer joint life.

Cross-references Dodge 52105840AB for the same application. See all 1.

$397.33Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.

Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Order total $397.33
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Drive Shaft options

OE-Style Front Drive Shaft for Ram 2500/3500

This Cardone driveshaft / prop shaft is built for front driveline service on select 2000-2002 Dodge Ram 2500 and Ram 3500 models. Part number 65-9109 is engineered to match OE form, fit, and function while delivering balanced operation for smoother performance.

Key Features

  • Steel drive shaft construction for strength and durability
  • Built to match original equipment dimensions and mounting points
  • 100% dynamically balanced at 3200 RPM for vibration-free operation
  • Slip yokes are lubricated to help reduce premature wear
  • 28 7/8 in. overall length, measured from flange end to the center of the opposite U-joint
  • 2.5 in. tubing outer diameter
  • New condition replacement part

Product Details

Cardone’s Driveshaft / Prop Shaft line focuses on engineered replacement driveline components built from testing and material analysis. This front drive shaft is designed for the Dodge Ram 2500 and Dodge Ram 3500 applications listed below, including vehicles with a Dana Model 60 axle and NV241HD transfer case. The balanced steel construction helps support consistent driveline performance, while the lubricated slip yokes help reduce wear at critical contact points. Part number 65-9109 is a direct-fit style replacement for the specified OE application.

This part cross-references Dodge (e.g., 52105840AB) for the same application.

What It Helps Address

  • Driveline vibration at road speed
  • Worn or damaged front prop shaft assembly
  • Noise from imbalance or driveline wear
  • Fitment issues from incorrect shaft length or configuration
  • Reduced joint life caused by uneven shaft balance

Installation Notes and Tips

Fits 2000-2002 Dodge Ram 2500, front, supplied as new; except Heavy Duty; with Dana Model 60 axle; with NV241HD transfer case; with 28-7/8 in. (734 mm) long driveshaft. Fits 2000-2002 Dodge Ram 3500, front, supplied as new; except Heavy Duty; with Dana Model 60 axle; with NV241HD transfer case; with 28-7/8 in. (734 mm) long driveshaft. Verify flange-to-U-joint measurement before installation, since this shaft is measured from the end of the flange to the center of the U-joint on the opposite side. Confirm axle, transfer case, and length details against the vehicle before ordering.

Quality Assurance

Cardone engineers and builds its prop shafts to OE performance targets and balances each unit dynamically for vibration control. The result is a replacement driveline component developed for consistent operation in the specified Dodge Ram 2500 and Ram 3500 front applications.

Related reading

This part fits 6 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelTransmissionLitersCylindersFuel TypePositionNotes
2002DodgeRam 2500Manual5.9LL6DIESELFrontSupplied as new; Except Heavy Duty; with Dana Model 60 Axle; with NV241HD Transfer Case; with 28-7/8" (734 mm) Long Driveshaft; Measurement taken from End of the Flange to the Center of U-Joint on the Opposite Side; Driveshaft / Prop Shaft
2002DodgeRam 3500Manual5.9LL6DIESELFrontSupplied as new; Except Heavy Duty; with Dana Model 60 Axle; with NV241HD Transfer Case; with 28-7/8" (734 mm) Long Driveshaft; Measurement taken from End of the Flange to the Center of U-Joint on the Opposite Side; Driveshaft / Prop Shaft
2001DodgeRam 2500Manual5.9LL6DIESELFrontSupplied as new; Except Heavy Duty; with Dana Model 60 Axle; with NV241HD Transfer Case; with 28-7/8" (734 mm) Long Driveshaft; Measurement taken from End of the Flange to the Center of U-Joint on the Opposite Side; Driveshaft / Prop Shaft
2001DodgeRam 3500Manual5.9LL6DIESELFrontSupplied as new; Except Heavy Duty; with Dana Model 60 Axle; with NV241HD Transfer Case; with 28-7/8" (734 mm) Long Driveshaft; Measurement taken from End of the Flange to the Center of U-Joint on the Opposite Side; Driveshaft / Prop Shaft
2000DodgeRam 2500Manual5.9LL6DIESELFrontSupplied as new; Except Heavy Duty; with Dana Model 60 Axle; with NV241HD Transfer Case; with 28-7/8" (734 mm) Long Driveshaft; Measurement taken from End of the Flange to the Center of U-Joint on the Opposite Side; Driveshaft / Prop Shaft
2000DodgeRam 3500Manual5.9LL6DIESELFrontSupplied as new; Except Heavy Duty; with Dana Model 60 Axle; with NV241HD Transfer Case; with 28-7/8" (734 mm) Long Driveshaft; Measurement taken from End of the Flange to the Center of U-Joint on the Opposite Side; Driveshaft / Prop Shaft
Directly replaces or cross-references 1 part number
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
Dodge — 52105840AB
