Cardone 65-9359 Drive Shaft - Front

Cardone 65-9359 Front Drive Shaft

Cardone 65-9359 is a new front drive shaft for select Chevrolet and GMC trucks and SUVs with the specified transfer case and prop shaft code applications. Built for OE-style fit and balanced for smooth operation, it is engineered to restore driveline performance on vehicles such as the Chevrolet Blazer, Chevrolet S10, GMC Jimmy, and GMC Sonoma.

Key Features

• Built to match OE form, fit, and function
• 100% dynamically balanced at 3200 RPM for vibration-free operation and longer joint life
• Steel shaft construction for durable driveline service
• Slip yokes are lubricated to help prevent premature wear

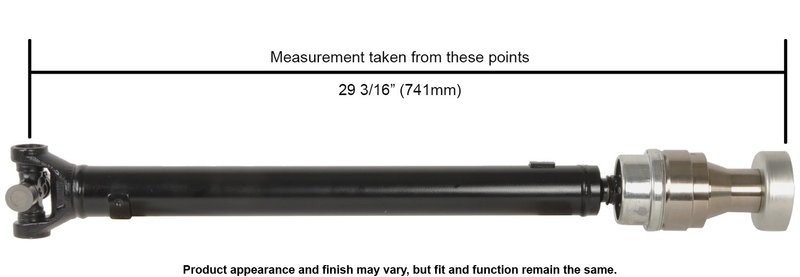

• 29 1/8 in. (740 mm) length measured from U-joint to end of CV dust shield
• 2.01 in. (51 mm) tubing outer diameter

Product Details

The Cardone Driveshaft / Prop Shaft line is engineered from years of testing and material analysis to deliver a replacement prop shaft that matches original equipment performance. Part number 65-9359 is a front drive shaft designed for specific 1992-2005 Chevrolet and GMC applications, including front-drive configurations on the Chevrolet Blazer, GMC Jimmy, Chevrolet S10, and GMC Sonoma. This part cross-references Chevrolet 15114531 for the same application.

Common Driveline Issues This Part Can Address

• Driveline vibration at highway speeds
• Worn or noisy front prop shaft operation
• Fitment problems caused by incorrect shaft length or configuration
• Premature wear from dry slip yokes
• Loss of smooth power transfer through the front driveline

Installation Notes and Fitment

• Fits 1995-2005 Chevrolet Blazer, front, with NP1 transfer case and propshaft code CNR
• Fits 2000-2005 GMC Jimmy, front
• Fits 1995-2004 Chevrolet S10, front, with NPI transfer case
• Fits 1995-2004 GMC Sonoma, front, with NPI transfer case
• Fits 1995-1999 GMC Jimmy, front, with CNR code located on axle
• Fits 1992-1994 Chevrolet S10 Blazer, front, with NP1 transfer case and propshaft code CNR

Verify shaft length, transfer case type, and driveline codes before installation. Measurement is taken from the U-joint to the end of the CV dust shield, which is important when matching the replacement shaft to the original unit. Part number 65-9359 is supplied as new and is intended for direct replacement in the listed front driveline applications.

Quality Assurance

Cardone applies extensive prop shaft testing and engineering to produce a replacement that aligns with OE performance targets. Each unit is dynamically balanced for smooth operation across the speed range and built to support consistent driveline service in the listed Chevrolet and GMC applications.
