Cardone 65-9774 Drive Shaft - Front
| Brand | Cardone 65-9774 |
|---|---|
| Position | Front |
| Drive Shaft Material | Steel |
| E-Waste | No |
| Greasable | Yes |
| Length (in) | 30 11/16" |
| Length (mm) | 780 |
| Product Condition | New |
| Tubing Outer Diameter (in) | 2.01 |
| Tubing Outer Diameter (mm) | 50.93 |
| Product line | Driveshaft / Prop Shaft |
| Fits | Jeep · 8 vehicles |
O.E. match. Built to match original form, fit and function.
Dynamically balanced. Helps deliver vibration-free operation and longer joint life.
Steel construction. Provides a durable driveline shaft with lubricated slip yokes.
Front Drive Shaft for Jeep Grand Cherokee
This Cardone driveshaft / prop shaft is built for front driveline service on select 1993-1995 Jeep Grand Cherokee models. Part number 65-9774 is engineered to match OE form, fit, and function while delivering balanced operation for smoother performance.
Key Features
- Steel drive shaft construction for durable driveline service
- Built to match OE form, fit, and function
- 100% dynamically balanced at 3200 RPM for vibration-free operation
- Greasable design for serviceability
- Lubricated slip yokes help reduce premature wear
- 30 11/16 in. overall length; 2.01 in. tubing outer diameter
Product Details
Cardone Driveshaft / Prop Shaft 65-9774 is part of the Cardone driveshaft line, developed from extensive testing and engineering of prop shafts. The design focuses on dimensional accuracy, balanced rotation, and long-term driveline performance. For Jeep Grand Cherokee front driveline repair, this steel prop shaft is a direct-fit replacement for applications that require the specified collapsed length and transfer case configuration.
Compatible With 1993-1995 Jeep Grand Cherokee front applications with a 30-1/2 in. (774 mm) long driveshaft and Dana Model 30 axle. Fits 1993-1995 Jeep Grand Cherokee, front, with 231 transfer case; fits 1993-1995 Jeep Grand Cherokee, front, with 242 transfer case; fits 1993-1994 Jeep Grand Cherokee, front, with 249 transfer case. Part number 65-9774 is a practical choice when replacing a worn front driveshaft on a Jeep Grand Cherokee.
What It Helps Fix
- Driveline vibration at speed
- Worn or noisy front prop shaft operation
- Slip yoke wear from inadequate lubrication
- Imbalance-related U-joint stress
- Incorrect OE-length replacement issues
Installation Notes

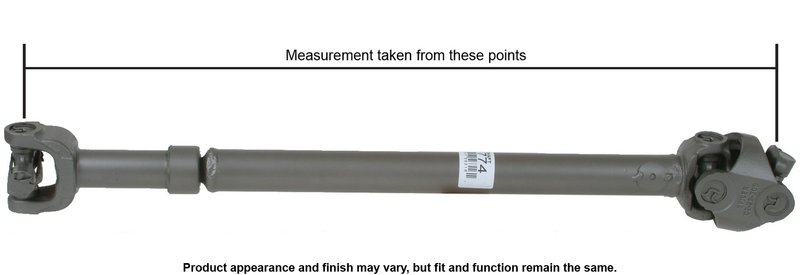

Verify the collapsed shaft measurement before ordering and confirm transfer case and axle configuration against the vehicle. This front driveshaft is specified for 30-1/2 in. (774 mm) long driveshaft applications with Dana Model 30 axle fitment. Measure from the centerline of the furthest U-joint at one end to the centerline of the furthest U-joint on the opposite end of the collapsed prop shaft to confirm fit.
Quality Assurance
Cardone engineers and tests prop shafts to match OE performance targets, and each unit is dynamically balanced for vibration-free operation. The greasable design and lubricated slip yokes support serviceable driveline use in the Jeep Grand Cherokee front application.
| Year | Make | Model | Drive Type | Transmission | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|---|
| 1995 | Jeep | Grand Cherokee | 4WD | Automatic | 4.0L | L6 | Front | with 30-1/2" (774 mm) Long Driveshaft; with 231 Transfer Case; with Dana Model 30 Axle; Measurement taken from the centerline of the furthest U-Joint at one end to the centerline of the furthest U-Joint on the opposite end of the collapsed Prop Shaft; Driveshaft / Prop Shaft |
| 1995 | Jeep | Grand Cherokee | 4WD | Automatic | 4.0L | L6 | Front | with 30-1/2" (774 mm) Long Driveshaft; with 242 Transfer Case; with Dana Model 30 Axle; Measurement taken from the centerline of the furthest U-Joint at one end to the centerline of the furthest U-Joint on the opposite end of the collapsed Prop Shaft; Driveshaft / Prop Shaft |
| 1994 | Jeep | Grand Cherokee | 4WD | Automatic | 4.0L | L6 | Front | with 30-1/2" (774 mm) Long Driveshaft; with 231 Transfer Case; with Dana Model 30 Axle; Measurement taken from the centerline of the furthest U-Joint at one end to the centerline of the furthest U-Joint on the opposite end of the collapsed Prop Shaft; Driveshaft / Prop Shaft |
| 1994 | Jeep | Grand Cherokee | 4WD | Automatic | 4.0L | L6 | Front | with 30-1/2" (774 mm) Long Driveshaft; with 249 Transfer Case; with Dana Model 30 Axle; Measurement taken from the centerline of the furthest U-Joint at one end to the centerline of the furthest U-Joint on the opposite end of the collapsed Prop Shaft; Driveshaft / Prop Shaft |
| 1994 | Jeep | Grand Cherokee | 4WD | Automatic | 4.0L | L6 | Front | with 30-1/2" (774 mm) Long Driveshaft; with 242 Transfer Case; with Dana Model 30 Axle; Measurement taken from the centerline of the furthest U-Joint at one end to the centerline of the furthest U-Joint on the opposite end of the collapsed Prop Shaft; Driveshaft / Prop Shaft |
| 1993 | Jeep | Grand Cherokee | 4WD | Automatic | 4.0L | L6 | Front | with 30-1/2" (774 mm) Long Driveshaft; with 231 Transfer Case; with Dana Model 30 Axle; Measurement taken from the centerline of the furthest U-Joint at one end to the centerline of the furthest U-Joint on the opposite end of the collapsed Prop Shaft; Driveshaft / Prop Shaft |
| 1993 | Jeep | Grand Cherokee | 4WD | Automatic | 4.0L | L6 | Front | with 30-1/2" (774 mm) Long Driveshaft; with 242 Transfer Case; with Dana Model 30 Axle; Measurement taken from the centerline of the furthest U-Joint at one end to the centerline of the furthest U-Joint on the opposite end of the collapsed Prop Shaft; Driveshaft / Prop Shaft |
| 1993 | Jeep | Grand Cherokee | 4WD | Automatic | 4.0L | L6 | Front | with 30-1/2" (774 mm) Long Driveshaft; with 249 Transfer Case; with Dana Model 30 Axle; Measurement taken from the centerline of the furthest U-Joint at one end to the centerline of the furthest U-Joint on the opposite end of the collapsed Prop Shaft; Driveshaft / Prop Shaft |
