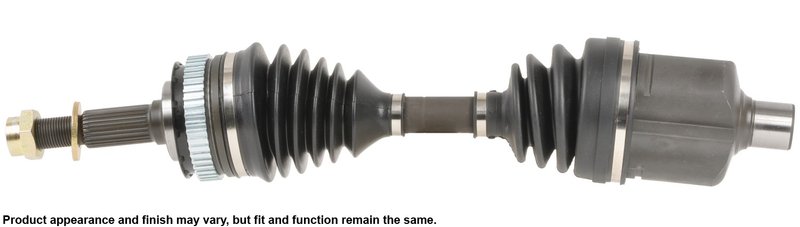

Cardone 66-1004 CV Axle Assembly - Front Left

Front Left CV Axle for Buick, Chevrolet, Oldsmobile, Pontiac

Cardone 66-1004 is a new front left CV axle assembly engineered for select Buick Century, Chevrolet Celebrity, Oldsmobile Cutlass Ciera, and Pontiac 6000 applications. It is built for OE-style driveline fitment with attention to boot durability, shaft straightness, and smooth operation at speed.

Key Features

• Cardone CV Axle Assembly, part number 66-1004
• Fits front left applications on select Buick, Chevrolet, Oldsmobile, and Pontiac models
• ABS ring included with 47-tooth count
• New spindle nut included with M24 x 2.1 thread size
• Splined input shaft with 34 spline count
• Splined output shaft with 27 spline count
• Compressed length: 21.77 in.
• Neoprene boot design with added bellows where needed to reduce stress and cracking
• Boot clamps are pneumatically crimped for a secure seal
• High-temperature, high-torque grease is used for long-lasting joint performance
• Shafts are individually verified for straightness to reduce vibration

Product Details

Cardone’s CV axle program is built around testing and engineering practices developed to address common failure points in original drive axles. For this application, the axle uses a neoprene boot design that helps resist ozone cracking and bellows stress, while the shaft is checked for runout to support vibration-free performance. The Cardone 66-1004 is a direct-fit front left CV axle assembly for 1983-1993 Buick Century, 1990-1990 Chevrolet Celebrity, 1990-1991 Chevrolet Lumina APV, 1983-1989 Chevrolet Celebrity, 1990-1993 Oldsmobile Cutlass Ciera, 1987-1989 Oldsmobile Cutlass Cruiser, 1990-1991 Oldsmobile Silhouette, 1983-1989 Pontiac 6000, and 1990-1991 Pontiac Trans Sport. This part cross-references OE numbers such as 7848168 and 26000330 for the same application.

Common Problems This Part Can Address

• Clicking or snapping noise during hard turns
• Grease leakage around a torn outer CV boot
• Front-end vibration caused by axle runout or shaft distortion
• Grinding noise from a worn CV joint
• ABS warning light after axle replacement when the sensor ring is damaged or mismatched

Installation Notes

• Fits 1990-1993 Buick Century, front left; 1983-1989 Buick Century, front left with 24 mm diameter outboard spindle
• Fits 1990-1991 Chevrolet Lumina APV, front left; 1990 Chevrolet Celebrity, front left; 1983-1989 Chevrolet Celebrity, front left with 24 mm diameter outboard spindle
• Fits 1990-1993 Oldsmobile Cutlass Ciera, front left; 1987-1989 Oldsmobile Cutlass Cruiser, front left with 24 mm diameter outboard spindle; 1990-1991 Oldsmobile Silhouette, front left
• Fits 1983-1989 Pontiac 6000, front left with 24 mm diameter outboard spindle; 1990-1991 Pontiac Trans Sport, front left
• Do not let the axle hang unsupported during service; this can damage the inner joint
• Use a torque wrench on the retaining nut and follow manufacturer torque specifications
• Do not reuse a prevailing-torque lock nut
• Replace transaxle seals when servicing CV drive axles to help prevent leaks
• Inspect the ABS sensor ring, sensor, and wiring during installation to avoid speed signal issues

Quality Assurance

Cardone applies 100% runout inspection to shafts used in remanufacturing and verifies straightness on axle shafts to help control vibration. The brand’s CV axle engineering focuses on reducing repeat failure by addressing boot cracking, seal wear, and joint contamination at the source.
