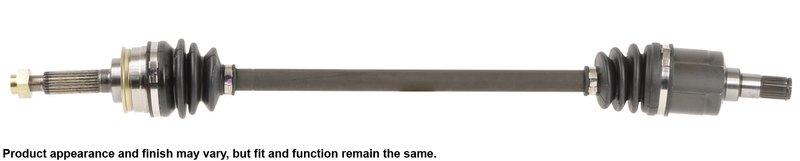

Cardone 66-1039 CV Axle Assembly - Front Right

Cardone CV Axle Assembly for Metro and Sprint

Cardone CV Axle Assembly Part Number 66-1039 is a new front right driveline replacement for select Geo Metro and Chevrolet Sprint applications. It is built with a splined input and output connection, includes an ABS ring, and comes with a spindle nut for a cleaner service job.

Fits 1989-1994 Geo Metro, front right. Fits 1989-1991 Chevrolet Sprint, front right.

Key Features

• Part number 66-1039 for direct identification
• New CV axle assembly with complete axle and instruction sheet
• ABS ring included for vehicles equipped with wheel speed sensing
• Spindle nut included with M18 x 1.5 thread size
• Splined input shaft with 22 splines
• Splined output shaft with 23 splines
• Compressed length: 30.2756 in.
• Neoprene boot design with added bellows where needed to reduce stress and ozone cracking
• Boot clamps are pneumatically crimped for a tight seal
• Heat-treated transmission seal diameter is precision-machined for proper sealing surface finish
• High-temperature, high-torque grease is used for durable operation

Detailed Description

This Cardone CV axle assembly is engineered for front right service on the Geo Metro and Chevrolet Sprint, with fitment covering 1989-1994 Geo Metro and 1989-1991 Chevrolet Sprint. Cardone designs its CV drive axles around common failure points such as boot cracking, seal wear, and vibration, then applies manufacturing controls to improve durability and driveline smoothness. Each shaft is individually verified for straightness to help support vibration-free performance at speed.

Part number 66-1039 is a practical replacement when servicing a worn or noisy front right axle on a Geo Metro or Chevrolet Sprint. This part cross-references Chevrolet 96068969 and Geo 30009077 for the same application.

Common Problems This Part Can Address

• Clicking or snapping during turns from a worn outer CV joint
• Grease leakage around the axle boot or chassis area
• Front-end vibration caused by axle runout or shaft distortion
• ABS warning light concerns after axle replacement when the sensor ring is damaged or missing
• Grinding or thumping noises related to CV joint wear

Installation Notes and Tips

• Fits 1989-1994 Geo Metro, front right, and 1989-1991 Chevrolet Sprint, front right.
• Do not let the axle hang unsupported during service; this can damage the inner joint.
• Use a torque wrench on the retaining nut and tighten to the manufacturer specification.
• Do not reuse a prevailing-torque lock nut; install the supplied new spindle nut.
• Replace transaxle seals when servicing CV drive axles to help prevent leaks.
• If the ABS light remains on after installation, inspect the sensor ring, sensor, and nearby wiring for damage.

Quality Assurance

Cardone applies testing and engineering methods developed from CV axle remanufacturing experience to meet or exceed original equipment performance targets. The axle shaft is checked for straightness, and the boot, grease, and seal interfaces are designed to support long-term service life in driveline applications.
