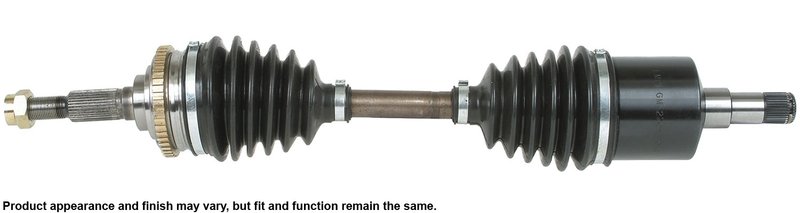

Cardone 66-1055 CV Axle Assembly - Front Right

Cardone CV Axle Assembly 66-1055

Cardone 66-1055 is a new front right CV axle assembly engineered for consistent driveline performance on select GM compact and midsize front-wheel-drive vehicles. It is built with a verified straight shaft, a new axle retaining nut, and a design focused on reducing common CV axle failure points.

Compatible with applications such as the Chevrolet Cavalier, Pontiac Grand Am, and Buick Skylark, this CV axle assembly is built for direct replacement service on the front right side.

Key Features

• New CV axle assembly for front right applications
• ABS ring included with 48 teeth for proper wheel speed signal operation
• Self-lock axle nut style with spindle nut included
• Compressed length: 24.625 in.
• Splined input and output shaft connection styles
• Neoprene boot design with added bellows where needed to reduce stress and cracking
• Pneumatically crimped boot clamps for a secure seal
• High-temperature, high-torque grease for demanding driveline conditions
• Transmission seal diameter is precision-machined after heat treatment for seal life

Product Details

Cardone’s CV axle assembly line is engineered from testing and remanufacturing experience focused on the causes of repeat CV joint failure. The boot design addresses ozone cracking and bellows stress, while the shaft is individually checked for straightness to help maintain smooth operation at speed. Part number 66-1055 is a direct-fit driveline replacement for vehicles that require a front right CV axle with ABS ring integration.

This part cross-references Buick 7842344 and Chevrolet 7847624 for the same application.

Common Problems This Part Can Address

• Clicking or snapping during hard turns and acceleration
• Grease leakage around the axle boot or suspension area
• Front-end vibration caused by axle runout or shaft distortion
• ABS warning light issues related to a damaged sensor ring or axle-mounted ABS components
• Grinding or clunking noises from a worn outer CV joint

Installation Notes

• Fits 1982-1994 Chevrolet Cavalier, front right
• Fits 1985-1995 Pontiac Grand Am, front right
• Fits 1986-1995 Buick Skylark, front right
• Fits 1987-1996 Chevrolet Corsica, front right
• Fits 1986-1994 Pontiac Sunbird, front right
• Fits 1982-1988 Cadillac Cimarron, front right
• Fits 1982-1989 Buick Skyhawk, front right
• Fits 1982-1988 Oldsmobile Firenza, front right
• Fits 1985-1987 Oldsmobile Calais, front right
• Fits 1992-1995 Oldsmobile Achieva, front right
• Fits 1988-1991 Chevrolet Corsica, front right, with Heavy Duty Suspension (FE7)
• Fits 1988-1991 Chevrolet Corsica, front right, with Sport Suspension (FE3)
• Fits 1988-1991 Oldsmobile Cutlass Calais, front right
• Fits 1984-1985 Pontiac J2000 Sunbird, front right
• Fits 1982-1983 Pontiac J2000, front right

Do not let the CV axle hang unsupported during service, as this can separate the axle and damage the inner joint. Use a torque wrench to install the retaining nut to manufacturer specifications, and replace the prevailing torque lock nut rather than reusing the old one. When replacing CV drive axle assemblies, install new transaxle seals to help prevent leaks.

Quality Assurance

Cardone designs its CV drive axles around known failure modes and verifies each shaft for straightness to support vibration-free operation at all speeds. The axle is supplied new and includes the components listed in the product data for a straightforward replacement process.
