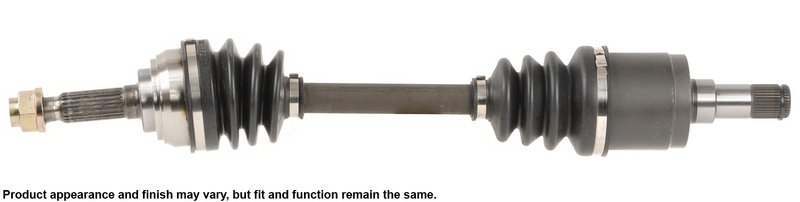

Cardone 66-1091 CV Axle Assembly - Front Left
| Brand | Cardone 66-1091 |
|---|---|
| Position | Front Left |
| ABS Ring Included | Yes |
| Axle Nut Locking Type | Self-lock |
| Compressed Length (in) | 22.3228346456693 |
| E-Waste | No |
| Input Shaft Connection Style | Splined |
| Input Shaft Spline Count | 34 |
| Output Shaft Connection Style | Splined |
| Output Shaft Spline Count | 33 |
| Package Contents | Complete Axle, Instruction Sheet |
| Product Condition | New |
| Spindle Nut Included | Yes |
| Spindle Nut Thread Size | M20 X 1.5 |
| Product line | CV Axle Assembly |
| Fits | Geo, Isuzu, Chevrolet, and Pontiac · 18 vehicles |
OE-level performance. Engineered to meet or exceed original equipment standards.
Vibration-free operation. Each shaft is individually verified for straightness.
New axle nut included. Supplied for a smoother, hassle-free installation.
Cross-references Chevrolet 94364332, Isuzu 8941086353 and Isuzu 8944676670 for the same application. See all 4.
Cardone CV Axle Assembly for Front Left Applications
Cardone CV Axle Assembly 66-1091 is a new front left driveline replacement built for select Geo, Chevrolet, Pontiac, and Isuzu applications. It is engineered to address common CV axle failure points with a straightness-verified shaft, improved boot design, and a new axle retaining nut for service-friendly installation.
Key Features
- Fits 1989 Geo Spectrum, front left
- Fits 1985-1989 Isuzu I-Mark, front left
- Fits 1985-1988 Chevrolet Spectrum, front left
- Fits 1985-1988 Pontiac Sunburst, front left
- New Cardone CV axle assembly, part number 66-1091
- ABS ring included for applications that use wheel speed sensing
- Self-lock axle nut style with spindle nut included
- Splined input and output shaft connections for OE-style fitment
- Neoprene boot design with added bellows where needed to reduce stress and cracking
- High-temperature grease formulated for torque and heat demands
- Shafts verified for straightness to help reduce vibration
Product Details
Cardone builds this CV axle assembly using testing and engineering methods developed around common original-equipment failure modes. The boot design is intended to resist ozone cracking and bellows stress, while the shaft is individually checked for straightness to support smooth operation at speed. For buyers searching for a replacement CV axle for a 1985-1988 Chevrolet Spectrum front left or a 1985-1989 Isuzu I-Mark front left, 66-1091 provides a direct driveline service part with OE-style construction details.
This part cross-references Chevrolet 94364332 and Isuzu 8941086353 for the same application.
Common Problems This Part Can Address
- Clicking or snapping during hard turns
- Grease on the chassis or suspension from a torn outer boot
- Front-end vibration caused by axle runout or shaft distortion
- ABS warning light after axle replacement when the sensor ring is damaged or missing
- Grinding noise from a worn outer CV joint
Installation Notes
- Do not let the CV axle hang unsupported during service; this can damage the inner joint.
- Use a torque wrench on the retaining nut and tighten to manufacturer specifications.
- Do not reuse a prevailing-torque lock nut; install the supplied new spindle nut.
- Replace transaxle seals when servicing CV axle assemblies to help prevent leaks.
- Inspect the ABS sensor, wiring, and ring during installation to avoid speed-signal faults.
Quality Assurance
Cardone applies axle testing and engineering practices focused on OE-level performance, including 100% shaft runout inspection for vibration control and precision-machined seal surfaces for proper sealing life. The CV axle assembly is new and built for dependable service in the listed Geo, Chevrolet, Pontiac, and Isuzu front left applications.
| Year | Make | Model | Drive Type | Transmission | Position | Notes |
|---|---|---|---|---|---|---|
| 1989 | Geo | Spectrum | — | Automatic | Front Left | with Stake-on Style Nut; CV Axle Assembly |
| 1989 | Isuzu | I-Mark | FWD | Automatic | Front Left | CV Axle Assembly |
| 1988 | Chevrolet | Spectrum | — | Automatic | Front Left | with Stake-on Style Nut; CV Axle Assembly |
| 1988 | Chevrolet | Spectrum | — | Automatic | Front Left | Cotter Pin Type; CV Axle Assembly |
| 1988 | Isuzu | I-Mark | FWD | Automatic | Front Left | CV Axle Assembly |
| 1988 | Pontiac | Sunburst | — | Automatic | Front Left | CV Axle Assembly |
| 1987 | Chevrolet | Spectrum | — | Automatic | Front Left | with Stake-on Style Nut; CV Axle Assembly |
| 1987 | Chevrolet | Spectrum | — | Automatic | Front Left | Cotter Pin Type; CV Axle Assembly |
| 1987 | Isuzu | I-Mark | FWD | Automatic | Front Left | CV Axle Assembly |
| 1987 | Pontiac | Sunburst | — | Automatic | Front Left | CV Axle Assembly |
| 1986 | Chevrolet | Spectrum | — | Automatic | Front Left | with Stake-on Style Nut; CV Axle Assembly |
| 1986 | Chevrolet | Spectrum | — | Automatic | Front Left | Cotter Pin Type; CV Axle Assembly |
| 1986 | Isuzu | I-Mark | FWD | Automatic | Front Left | CV Axle Assembly |
| 1986 | Pontiac | Sunburst | — | Automatic | Front Left | CV Axle Assembly |
| 1985 | Chevrolet | Spectrum | — | Automatic | Front Left | with Stake-on Style Nut; CV Axle Assembly |
| 1985 | Chevrolet | Spectrum | — | Automatic | Front Left | Cotter Pin Type; CV Axle Assembly |
| 1985 | Isuzu | I-Mark | FWD | Automatic | Front Left | CV Axle Assembly |
| 1985 | Pontiac | Sunburst | — | Automatic | Front Left | CV Axle Assembly |
