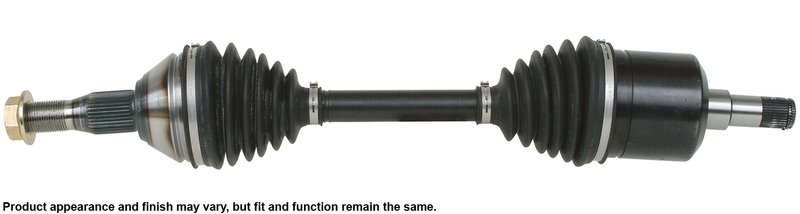

Cardone 66-1092 CV Axle Assembly - Front Right

Cardone CV Axle Assembly for Front Right Applications

Cardone CV Axle Assembly 66-1092 is a new front right driveline replacement for select Buick, Cadillac, Oldsmobile, and Pontiac vehicles. It is engineered for OE-level performance with attention to boot durability, shaft straightness, and seal fit for smoother operation.

Key Features

• Fits front right applications on select 1991-1997 Buick, Cadillac, Oldsmobile, and Pontiac models
• ABS ring included for vehicles equipped with ABS
• Self-lock axle nut locking type with spindle nut included
• Compressed length: 24.75 in.
• Splined input and output shaft connection styles
• Neoprene boots with added bellows where needed to reduce stress and ozone cracking
• High-temperature, high-torque grease for long service life
• Boot clamps are pneumatically crimped for a tight seal
• Transmission seal diameter is precision-machined after heat treatment
• Each shaft is verified for straightness to reduce vibration

Product Details

Cardone builds its CV Drive Axle line around failure prevention, using engineering updates that address common causes of repeat axle problems. The 66-1092 CV axle assembly is designed for front right service on vehicles such as the Buick LeSabre, Buick Park Avenue, Cadillac DeVille, Oldsmobile 88, Oldsmobile 98, and Pontiac Bonneville. This part number 66-1092 is a direct replacement choice for drivers needing a dependable CV axle assembly with ABS ring support and a new spindle nut for service work.

This part cross-references Pontiac 26035210 and 26078585 for the same application.

Common Problems This Part Can Address

• Clicking or snapping noise during turns
• Grease leakage around the axle boot or suspension area
• Front-end vibration during acceleration
• Grinding noise from a worn outer CV joint
• ABS warning light after axle replacement when the sensor ring or wiring is affected

Installation Notes

• Fits 1997 Buick LeSabre, front right, with 3.06 axle ratio (FW2) and without LeSabre Timing (WA2)
• Fits 1996 Buick LeSabre, front right, with 3.06 axle ratio (FW2)
• Fits 1995-1996 Buick Park Avenue, front right, with 3.06 axle ratio (FW2)
• Fits 1995-1996 Oldsmobile 88, front right, with 3.06 axle ratio (FW2)
• Fits 1995-1996 Oldsmobile 98, front right, with 3.06 axle ratio (FW2)
• Fits 1996 Oldsmobile LSS, front right, with 3.06 axle ratio (FW2)
• Fits 1995-1996 Pontiac Bonneville, front right, with 3.06 axle ratio (FW2)
• Fits 1991-1995 Buick Park Avenue, front right
• Fits 1994-1995 Cadillac DeVille, front right
• Fits 1995 Oldsmobile 88, front right
• Fits 1992-1995 Oldsmobile 98, front right
• Fits 1992-1995 Pontiac Bonneville, front right
• Fits 1992-1993 Buick Riviera, front right
• Fits 1992-1993 Cadillac DeVille, front right, with GM Brake Code J41
• Fits 1992-1993 Cadillac DeVille, front right, with Brake Code JM4
• Fits 1992-1993 Cadillac Eldorado, front right
• Fits 1992-1993 Cadillac Seville, front right
• Fits 1992 Cadillac Brougham, front right, with light duty brakes
• Fits 1992 Cadillac Commercial Chassis, front right, with light duty brakes
• Fits 1992 Cadillac Fleetwood, front right, with light duty brakes
• Fits 1992 Oldsmobile Toronado, front right

Do not let the axle hang unsupported during service, and do not reuse the old prevailing-torque axle nut. Use a torque wrench and tighten the retaining nut to the vehicle manufacturer’s specification. When replacing CV drive axles, install new transaxle seals to help prevent leaks.

Quality Assurance

Cardone uses 100% run-out inspection on shafts to help prevent vibration and verifies straightness before assembly. The brand’s CV axle engineering focuses on correcting common failure points such as boot cracking, seal wear, and joint contamination to support consistent OE-style performance.
