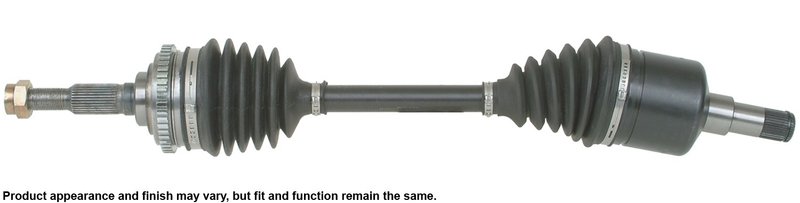

Cardone 66-1224 CV Axle Assembly - Front Right

Front Right CV Axle for Cavalier and Sunfire

The Cardone 66-1224 CV axle assembly is a new front right driveline replacement for select Chevrolet Cavalier and Pontiac Sunfire models. It is built with attention to OE-style fit, straightness, and joint durability for smooth power transfer and reduced vibration.

Cardone’s CV axle engineering focuses on the common failure points found in original drive axles, including boot stress, seal wear, and shaft runout. The result is a replacement axle designed for dependable operation on 1995-2001 Chevrolet Cavalier and 1995-2001 Pontiac Sunfire front right applications.

Key Features

• Part number 66-1224 CV axle assembly for front right applications
• Fits 1995-2001 Chevrolet Cavalier, front right
• Fits 1995-2001 Pontiac Sunfire, front right
• ABS ring included with 48 teeth for proper speed signal operation
• Self-lock axle nut style with spindle nut included
• Splined input and output shaft connection styles
• Compressed length: 25.5625 in.
• Neoprene boot design with added bellows where needed to reduce stress cracking
• High-temperature, high-torque grease for long service life
• Boot clamps are pneumatically crimped for a secure seal

Product Details

This Cardone CV axle assembly is engineered for OE-level driveline performance in front-wheel-drive service. The shaft is individually verified for straightness to help reduce vibration, while the transmission seal diameter is precision-machined after heat treatment to support proper sealing and long seal life. The included ABS ring helps maintain correct wheel speed input for vehicles equipped with ABS, making this a practical replacement for a worn or damaged front right axle on a Chevrolet Cavalier or Pontiac Sunfire.

This part cross-references Chevrolet and Pontiac OE numbers 26039153 and 26051143 for the same application.

Common Problems This Part Can Address

• Clicking or snapping noises during turns from a worn CV joint
• Grease leakage around the axle boot from a ruptured boot
• Front-end vibration caused by axle runout or shaft damage
• ABS warning light issues after axle replacement when the sensor ring is damaged or incorrect
• Grinding or clunking from a failing outer or inner CV joint

Installation Notes

• Fits 2001, 2000, 1999, 1998, 1997, 1996, and 1995 Chevrolet Cavalier, front right.
• Fits 2001, 2000, 1999, 1998, 1997, 1996, and 1995 Pontiac Sunfire, front right.
• Do not let the CV axle hang unsupported during service; this can damage the inner joint.
• Use a torque wrench on the retaining nut and tighten to the vehicle manufacturer’s specification.
• Do not reuse a prevailing-torque lock nut; install the supplied spindle nut.
• Replace transaxle seals when servicing CV drive axles to help prevent leaks.
• If the ABS light remains on after installation, inspect the sensor ring, sensor, and nearby wiring for damage.

Quality Assurance

Cardone applies testing and engineering methods developed from CV axle failure analysis to improve durability and fit. Each shaft is checked for straightness to support vibration-free operation, and the boot and grease system are selected to help resist common wear conditions in daily driving.
