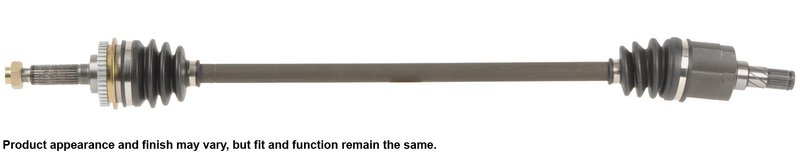

Cardone 66-1305 CV Axle Assembly - Front Right

Overview of Cardone CV Axle Assembly 66-1305

The Cardone CV Axle Assembly 66-1305 is designed for reliable driveline performance in Chevrolet Metro and Suzuki Swift vehicles. This CV axle assembly includes an ABS ring and features a self-locking axle nut for secure installation.

• Includes ABS ring with 42 teeth for accurate wheel speed sensor readings
• Self-locking axle nut to prevent loosening during operation
• Compressed length of approximately 35.2 inches for precise fitment
• Splined input and output shaft connection styles for secure drivetrain engagement
• Compatible with Chevrolet Metro and Suzuki Swift models

About the Cardone CV Axle Assembly Product Line

The Cardone CV Axle Assembly product line focuses on delivering complete constant velocity axle solutions that meet or exceed OEM specifications. These assemblies are engineered to provide balanced shafts inspected for run out to reduce vibrations and ensure smooth driveline operation. The inclusion of ABS rings in assemblies like part number 66-1305 supports proper ABS sensor function, critical for vehicle safety systems.

Detailed Product Description

This CV axle assembly features a 42-tooth ABS ring integrated into the design, ensuring compatibility with the vehicle’s anti-lock braking system. The axle nut uses a self-locking mechanism, eliminating the need for a prevailing torque lock nut and enhancing installation security. The compressed length of 35.1968503937008 inches ensures a precise fit for the Chevrolet Metro and Suzuki Swift models. Both input and output shafts are splined, with the input shaft having 22 splines, providing a secure connection to the drivetrain components.

Common Applications and Problem Resolution

• Replaces worn or damaged CV axle assemblies on Chevrolet Metro and Suzuki Swift
• Eliminates front-end grinding noises caused by defective CV joints
• Resolves ABS warning light issues related to faulty or missing ABS rings
• Addresses vibrations and wheel wobble during turns due to axle shaft run out
• Fixes clicking noises when accelerating or turning caused by worn outer CV joints

Installation Notes and Tips

• Do not allow CV axles to hang unsupported during installation to avoid joint damage
• Use a torque wrench to tighten the self-locking axle nut; avoid impact wrenches
• Always replace axle nuts with new ones; do not reuse prevailing torque lock nuts
• Inspect and replace transmission seals when installing new CV axle assemblies
• Ensure ABS sensor ring is properly seated to prevent ABS system errors

Quality Assurance and Warranty

Cardone CV Axle Assemblies undergo 100% shaft run out inspection to minimize vibrations and ensure smooth operation. The assemblies are engineered to meet OEM standards for durability and fitment. While specific warranty details are not provided here, Cardone products typically come with a limited warranty covering defects in materials and workmanship.
