OE Quality
60-Day Returns
Cardone

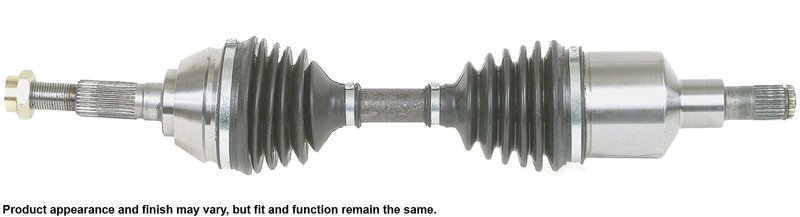

CV Axle AssemblyCardone 66-1311 CV Axle Assembly - Front Left
| Brand | Cardone 66-1311 |
|---|---|
| Position | Front Left |
| ABS Ring Included | Yes |
| Axle Nut Locking Type | Self-Lock |
| Compressed Length (in) | 23.375 |
| E-Waste | No |
| Input Shaft Connection Style | Splined |
| Output Shaft Connection Style | Splined |
| Package Contents | Complete Axle, Instruction Sheet |
| Product Condition | New |
| Spindle Nut Included | Yes |
| Spindle Nut Thread Size | M24 x 2.0 |
| Product line | CV Axle Assembly |
| Fits | Chevrolet, GMC, Oldsmobile, and Isuzu · 45 vehicles |
OE performance. Engineered to meet or exceed original equipment standards.
Vibration-free operation. Each axle shaft is individually verified for straightness.
Complete axle. Includes the axle assembly, instruction sheet, and a new spindle nut.
Cross-references Isuzu 8260550480 for the same application. See all 1.
$99.73Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all CV Axle Assembly options
Cardone CV Axle Assembly for Front Left Applications
Cardone CV Axle Assembly 66-1311 is a new front left driveline replacement engineered for select Chevrolet, GMC, Oldsmobile, and Isuzu applications. It is built for direct replacement service on vehicles such as the Chevrolet Blazer, Chevrolet S10, GMC Jimmy, GMC Sonoma, Oldsmobile Bravada, and Isuzu Hombre.
Key Features
- ABS ring included for proper wheel speed sensor operation
- Self-lock axle nut style with spindle nut included
- Splined input and output shaft connection styles
- Compressed length: 23.375 in.
- Neoprene boots with added bellows where needed to reduce stress and ozone cracking
- High-temperature, high-torque grease for durable joint performance
- Boot clamps are pneumatically crimped for a tight seal
- Shafts are individually verified for straightness to help reduce vibration
- Transmission seal diameter is precision-machined after heat treatment for seal life
Product Details
Cardone 66-1311 is part of the CV Axle Assembly line, a product line focused on remanufactured and replacement driveline components engineered around common original axle failure points. Cardone uses inspection and engineering methods aimed at reducing repeat boot failure, joint contamination, and vibration concerns. This axle is a direct-fit front left replacement for 1997-2005 Chevrolet Blazer, 2002-2005 GMC Jimmy, 1997-2004 Chevrolet S10, 2000-2004 GMC Sonoma, 1997-2001 GMC Jimmy, 1997-2001 Oldsmobile Bravada, 1998-2000 Isuzu Hombre, and 1997-1999 GMC Sonoma without the High Wider Package (ZR2) where noted.
This part cross-references Isuzu 8260550480 for the same application.
Common Problems This Axle Can Address
- Clicking or snapping during hard turns
- Grease on the chassis or suspension from a ruptured outer boot
- Front-end vibration during acceleration
- Grinding noise from a worn outer CV joint
- ABS warning light after axle replacement when the sensor ring or wiring is damaged
Installation Notes and Tips
- Fits 1997-2005 Chevrolet Blazer, front left; 1997-2004 Chevrolet S10, front left; 2002-2005 GMC Jimmy, front left; 2000-2004 GMC Sonoma, front left; 1997-2001 GMC Jimmy, front left; 1997-2001 Oldsmobile Bravada, front left; 1998-2000 Isuzu Hombre, front left; and 1997-1999 GMC Sonoma, front left.
- Do not let the CV axle hang unsupported during service.
- Use a torque wrench on the retaining nut and follow manufacturer torque specifications.
- Do not reuse a prevailing-torque lock nut; replace it with the supplied new axle nut.
- Replace transaxle seals when servicing CV drive axle assemblies to help prevent leaks.
- Inspect the ABS ring, sensor, and nearby wiring during installation to avoid speed signal faults.
Quality Assurance
Cardone engineers and tests CV drive axles to meet or exceed original equipment performance targets. Each shaft is checked for straightness and runout to support vibration-free operation at speed, and the design addresses known failure points such as boot cracking, seal wear, and joint contamination.
This part fits 45 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
| Year | Make | Model | Drive Type | Position | Notes |
|---|---|---|---|---|---|
| 2005 | Chevrolet | Blazer | 4WD | Front Left | without High Wider Package (ZR2); CV Axle Assembly |
| 2005 | GMC | Jimmy | 4WD | Front Left | without High Wider Package (ZR2); CV Axle Assembly |
| 2004 | Chevrolet | Blazer | 4WD | Front Left | without High Wider Package (ZR2); CV Axle Assembly |
| 2004 | Chevrolet | S10 | 4WD | Front Left | without High Wider Package (ZR2); CV Axle Assembly |
| 2004 | GMC | Jimmy | 4WD | Front Left | without High Wider Package (ZR2); CV Axle Assembly |
| 2004 | GMC | Sonoma | 4WD | Front Left | without High Wider Package (ZR2); CV Axle Assembly |
| 2003 | Chevrolet | Blazer | 4WD | Front Left | without High Wider Package (ZR2); CV Axle Assembly |
| 2003 | Chevrolet | S10 | 4WD | Front Left | without High Wider Package (ZR2); CV Axle Assembly |
| 2003 | GMC | Jimmy | 4WD | Front Left | without High Wider Package (ZR2); CV Axle Assembly |
| 2003 | GMC | Sonoma | 4WD | Front Left | without High Wider Package (ZR2); CV Axle Assembly |
| 2002 | Chevrolet | Blazer | 4WD | Front Left | without High Wider Package (ZR2); CV Axle Assembly |
| 2002 | Chevrolet | S10 | 4WD | Front Left | without High Wider Package (ZR2); CV Axle Assembly |
| 2002 | GMC | Jimmy | 4WD | Front Left | without High Wider Package (ZR2); CV Axle Assembly |
| 2002 | GMC | Sonoma | 4WD | Front Left | without High Wider Package (ZR2); CV Axle Assembly |
| 2001 | Chevrolet | Blazer | 4WD | Front Left | without High Wider Package (ZR2); CV Axle Assembly |
| 2001 | Chevrolet | S10 | 4WD | Front Left | without High Wider Package (ZR2); CV Axle Assembly |
| 2001 | GMC | Jimmy | AWD | Front Left | without High Wider Package (ZR2); Option Codes are on the Service Parts Identification Sticker; CV Axle Assembly |
| 2001 | GMC | Jimmy | 4WD | Front Left | without High Wider Package (ZR2); Option Codes are on the Service Parts Identification Sticker; CV Axle Assembly |
| 2001 | GMC | Sonoma | 4WD | Front Left | without High Wider Package (ZR2); CV Axle Assembly |
| 2001 | Oldsmobile | Bravada | — | Front Left | CV Axle Assembly |
| 2000 | Chevrolet | Blazer | 4WD | Front Left | without High Wider Package (ZR2); CV Axle Assembly |
| 2000 | Chevrolet | S10 | 4WD | Front Left | without High Wider Package (ZR2); CV Axle Assembly |
| 2000 | GMC | Jimmy | AWD | Front Left | without High Wider Package (ZR2); Option Codes are on the Service Parts Identification Sticker; CV Axle Assembly |
| 2000 | GMC | Jimmy | 4WD | Front Left | without High Wider Package (ZR2); Option Codes are on the Service Parts Identification Sticker; CV Axle Assembly |
| 2000 | GMC | Sonoma | 4WD | Front Left | without High Wider Package (ZR2); CV Axle Assembly |
| 2000 | Isuzu | Hombre | 4WD | Front Left | CV Axle Assembly |
| 2000 | Oldsmobile | Bravada | — | Front Left | CV Axle Assembly |
| 1999 | Chevrolet | Blazer | 4WD | Front Left | without High Wider Package (ZR2); CV Axle Assembly |
| 1999 | Chevrolet | S10 | 4WD | Front Left | without High Wider Package (ZR2); CV Axle Assembly |
| 1999 | GMC | Jimmy | AWD | Front Left | without High Wider Package (ZR2); Option Codes are on the Service Parts Identification Sticker; CV Axle Assembly |
| 1999 | GMC | Jimmy | 4WD | Front Left | without High Wider Package (ZR2); Option Codes are on the Service Parts Identification Sticker; CV Axle Assembly |
| 1999 | GMC | Sonoma | 4WD | Front Left | without High Wider Package (ZR2); Option Codes are on the Service Parts Identification Sticker; CV Axle Assembly |
| 1999 | Isuzu | Hombre | 4WD | Front Left | CV Axle Assembly |
| 1999 | Oldsmobile | Bravada | — | Front Left | CV Axle Assembly |
| 1998 | Chevrolet | Blazer | 4WD | Front Left | without High Wider Package (ZR2); CV Axle Assembly |
| 1998 | Chevrolet | S10 | 4WD | Front Left | without High Wider Package (ZR2); CV Axle Assembly |
| 1998 | GMC | Jimmy | 4WD | Front Left | without High Wider Package (ZR2); Option Codes are on the Service Parts Identification Sticker; CV Axle Assembly |
| 1998 | GMC | Sonoma | 4WD | Front Left | without High Wider Package (ZR2); Option Codes are on the Service Parts Identification Sticker; CV Axle Assembly |
| 1998 | Isuzu | Hombre | 4WD | Front Left | CV Axle Assembly |
| 1998 | Oldsmobile | Bravada | — | Front Left | CV Axle Assembly |
| 1997 | Chevrolet | Blazer | 4WD | Front Left | without High Wider Package (ZR2); CV Axle Assembly |
| 1997 | Chevrolet | S10 | 4WD | Front Left | without High Wider Package (ZR2); CV Axle Assembly |
| 1997 | GMC | Jimmy | 4WD | Front Left | without High Wider Package (ZR2); Option Codes are on the Service Parts Identification Sticker; CV Axle Assembly |
| 1997 | GMC | Sonoma | 4WD | Front Left | without High Wider Package (ZR2); Option Codes are on the Service Parts Identification Sticker; CV Axle Assembly |
| 1997 | Oldsmobile | Bravada | — | Front Left | CV Axle Assembly |
| No rows match your filter. | |||||
Directly replaces or cross-references 1 part number
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
Isuzu — 8260550480
