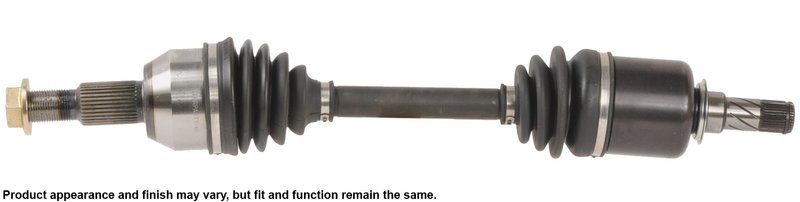

Cardone 66-1396 CV Axle Assembly - Front Left

Cardone CV Axle Assembly for Saturn Vue

Restore smooth driveline operation with the Cardone CV Axle Assembly, part number 66-1396. This new front left axle is built for 2002-2005 Saturn Vue models and is engineered for vibration-free performance at all speeds.

Cardone CV axle assemblies are developed from extensive CV drive axle testing and engineering, with attention to the failure points that commonly affect original units. For Saturn Vue front left replacement needs, 66-1396 is designed with verified shaft straightness, a precision-machined seal surface, and boot construction that helps resist common wear-related issues.

Key Features

• Fits 2002-2005 Saturn Vue, front left
• Part number 66-1396
• New axle retaining nut supplied for easier installation
• ABS ring included
• Self-lock axle nut locking type
• Compressed length: 24.5 in.
• Splined input shaft connection with 34 splines
• Splined output shaft connection with 33 splines
• Spindle nut thread size: M27 x 2.0
• Neoprene boots with added bellows where needed to reduce stress and cracking
• Boot clamps are pneumatically crimped for a secure seal
• High-temperature, high-torque grease included in the assembly

Product Details

This Cardone CV axle assembly is built for Saturn Vue front left driveline service where a worn or damaged axle can create noise, vibration, or steering concerns. The shaft is individually checked for straightness to help maintain smooth operation, while the boot design and seal surface are engineered to support long-term durability. If you are replacing a front left CV axle on a 2002-2005 Saturn Vue, 66-1396 provides the correct splined connections, ABS ring, and spindle nut specification for the application.

This part cross-references Saturn 21991241 and 22711821 for the same application.

Common Problems This Part Can Address

• Clicking or snapping noises during turns
• Grease leakage around the axle boot or chassis
• Front-end vibration during acceleration
• ABS warning light after axle replacement when the sensor ring is damaged or missing
• Grinding or wobble caused by a worn outer CV joint

Installation Notes and Tips

• Fits 2002-2005 Saturn Vue, front left.
• Do not let the CV axle hang unsupported during service; this can damage the inner joint.
• Use a torque wrench to install the retaining nut to manufacturer specifications.
• Do not reuse a prevailing-torque lock nut; install the supplied new nut.
• Replace transaxle seals when servicing CV drive axle assemblies to help prevent leaks.
• If the ABS light remains on after installation, inspect the sensor ring, sensor, and nearby wiring for damage.

Quality Assurance

Cardone engineers CV drive axles to address common failure causes found in original equipment designs. The shaft runout is verified for straightness, and the boot and seal interfaces are built to support consistent driveline performance on Saturn Vue applications.
