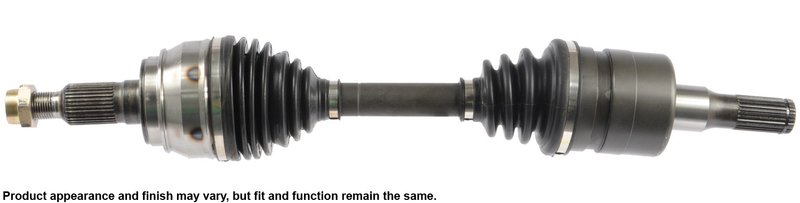

Cardone 66-1417 CV Axle Assembly - Front Left or Front Right

Cardone CV Axle Assembly for Hummer H3 and H3T

Restore smooth driveline operation with the Cardone CV Axle Assembly, Part Number 66-1417. This new front axle assembly is built for direct replacement on select Hummer H3 and H3T applications, with engineering focused on reducing vibration, boot failure, and premature joint wear.

Key Features

• Fits 2006-2010 Hummer H3, front right and front left
• Fits 2009-2010 Hummer H3T, front left and front right
• ABS ring included for proper wheel speed signal integration
• Self-lock axle nut style with spindle nut included
• Splined input and output shaft connection styles
• Compressed length: 24.9375 in.
• Neoprene boots with added bellows where needed to reduce stress and ozone cracking
• Boot clamps are pneumatically crimped for a secure seal
• High-temperature, high-torque grease supports long service life
• Shafts are individually verified for straightness to help reduce vibration

Product Details

Cardone CV axle assemblies are engineered from testing and failure analysis of original CV drive axles. The design addresses common causes of repeat failure, including boot cracking, grease loss, contamination, and shaft runout. For Hummer H3 and H3T owners searching for a front CV axle assembly, Part Number 66-1417 provides a direct-fit driveline replacement with attention to seal life, joint protection, and smooth operation at speed.

This part cross-references Hummer OE numbers 10374204 and 15886012 for the same application.

Common Problems This Part Can Address

• Clicking or snapping noise during hard turns
• Grease on the chassis or suspension from a torn CV boot
• Front-end vibration during acceleration
• Grinding or popping from a worn outer CV joint
• ABS warning light after axle replacement when the sensor ring is damaged or missing

Installation Notes and Tips

• Fits 2006-2010 Hummer H3, front right and front left, and 2009-2010 Hummer H3T, front left and front right.
• Always install a new transaxle seal when replacing CV drive axle assemblies.
• Do not let the axle hang unsupported during service; this can damage the inner joint.
• Use a torque wrench on the retaining nut and follow manufacturer torque specifications.
• Do not reuse a prevailing-torque lock nut.
• Inspect the ABS sensor, wiring, and ring during installation to avoid an ABS fault.

Quality Assurance

Cardone applies axle engineering and inspection processes aimed at OE-level performance. Shafts are checked for straightness and runout, and the boot and grease package are selected to support durable operation in demanding driveline conditions.
