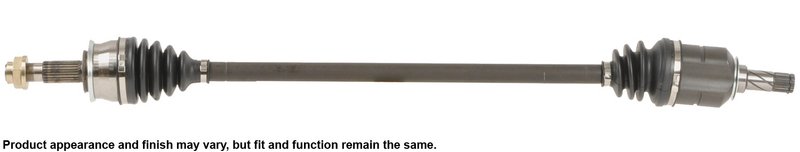

Cardone 66-1520 CV Axle Assembly - Front Right

Overview of Cardone CV Axle Assembly 66-1520 for Chevrolet Sonic

The Cardone CV Axle Assembly part number 66-1520 is designed specifically for Chevrolet Sonic models. This CV axle assembly provides a reliable driveline connection, ensuring smooth power transfer from the transmission to the wheels without compromising vehicle handling or safety.

• Compatible with Chevrolet Sonic vehicles
• Axle nut locking type: stake for secure fitment
• Compressed length approximately 36.46 inches
• Splined input shaft with 22 splines
• Splined output shaft with 25 splines
• ABS ring not included
• Does not contain e-waste components

About the Cardone CV Axle Assembly Product Line

The Cardone CV Axle Assembly line focuses on delivering dependable CV components engineered to meet or exceed OEM specifications. This product line emphasizes precision manufacturing, including 100% shaft run-out inspection to minimize vibrations and ensure balanced operation. The assemblies are designed for direct replacement applications, providing a straightforward installation process for Chevrolet Sonic owners and technicians.

Detailed Product Description

The Cardone 66-1520 CV Axle Assembly features a stake-type axle nut locking mechanism, which secures the axle firmly in place to prevent loosening during operation. With a compressed length of 36.4567 inches, this axle assembly fits the driveline geometry of the Chevrolet Sonic accurately. Both the input and output shafts are splined, with 22 and 25 splines respectively, ensuring proper engagement with the transmission and wheel hub. This assembly does not include an ABS ring, so it is intended for vehicles without ABS sensor integration on the axle. The absence of e-waste components simplifies disposal and environmental compliance.

Common Applications and Problem Resolution

• Replaces worn or damaged CV axle assemblies on Chevrolet Sonic models
• Eliminates front-end grinding noises caused by faulty CV joints
• Resolves vibrations and wheel wobble during turns
• Addresses clicking sounds when accelerating or turning
• Prevents drivetrain shifting issues related to worn axles

Installation Notes and Tips

• Never allow the CV axle to hang unsupported during installation to avoid joint damage
• Do not reuse the old axle nut; always install a new stake-type locking nut
• Avoid using impact wrenches on the retaining nut to prevent damage
• Inspect and replace transmission seals when installing the new axle assembly
• Ensure proper spline alignment on both input and output shafts for smooth installation

Quality Assurance and Warranty

Each Cardone CV Axle Assembly 66-1520 undergoes thorough inspection, including 100% shaft run-out testing to prevent vibrations and ensure balanced operation. The assemblies are manufactured to meet OEM standards for durability and fitment. While specific warranty details are not provided here, Cardone products typically come with a limited warranty covering defects in materials and workmanship.
