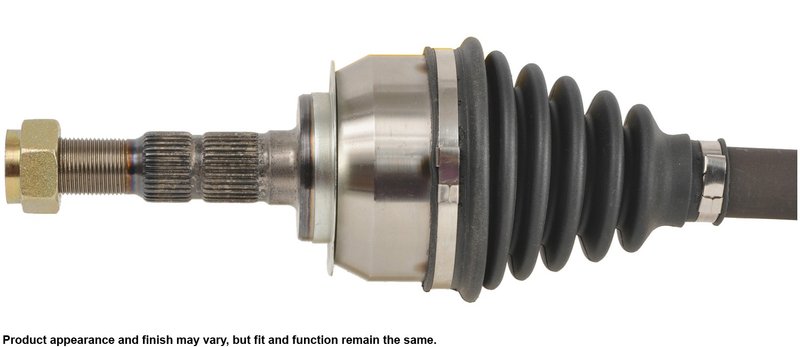

Cardone 66-1544 CV Axle Assembly - Front Left

Cardone CV Axle Assembly for Cruze Front Left

Restore smooth driveline operation with this Cardone CV axle assembly, part number 66-1544. It is built for the front left position on 2011-2015 Chevrolet Cruze and 2016 Chevrolet Cruze Limited applications, with OE-style fitment details that matter for vibration control and dependable road performance.

Cardone engineers CV drive axles around common failure points, including boot stress, seal wear, and shaft runout. This CV axle assembly for Chevrolet Cruze front left service includes an ABS ring, a self-lock axle nut style, and a new spindle nut for a cleaner installation on the correct application.

Key Features

• Fits 2011-2015 Chevrolet Cruze, front left
• Fits 2016 Chevrolet Cruze Limited, front left
• Part number 66-1544
• ABS ring included
• Self-lock axle nut style
• Spindle nut included with M22 x 1.5 thread size
• Compressed length: 23.5039 in.
• 25-spline input shaft and 33-spline output shaft
• New axle retaining nut supplied for installation
• Neoprene boot design with added bellows where needed to resist cracking
• High-temperature, high-torque grease for driveline service
• Shafts verified for straightness to help reduce vibration

Product Details

This Cardone CV axle assembly is engineered as a direct replacement for the front left axle on the Chevrolet Cruze and Chevrolet Cruze Limited. The design focuses on long-term driveline stability, with individually verified shaft straightness for smoother operation at speed and boot construction intended to resist ozone cracking and bellows stress. The transmission seal diameter is precision-machined after heat treatment to support proper sealing and service life. If you are searching for a Chevrolet Cruze front left CV axle assembly, Cardone 66-1544 is built around the fitment and performance requirements of these vehicles.

This part cross-references Chevrolet (e.g., 13334711) for the same application.

Common Problems This Part Addresses

• Clicking or snapping noises during hard turns and acceleration
• Grease on the chassis or suspension from a torn outer boot
• Front-end vibration caused by axle runout or shaft imbalance
• ABS warning light after axle replacement when the sensor ring is damaged or missing
• Grinding or binding from a worn inner or outer CV joint

Installation Notes

Do not let the CV axle hang unsupported during service, since that can damage the inner joint. Use a torque wrench to install the retaining nut to the manufacturer’s specification, and do not reuse a prevailing-torque lock nut. When replacing CV drive axle assemblies, install new transaxle seals to help prevent leaks. Inspect the ABS sensor, wiring, and ring during installation to avoid an erratic speed signal.

Quality Assurance

Cardone’s CV axle engineering process is based on testing and failure analysis of original drive axles, with shaft straightness verification and boot design improvements aimed at reducing repeat failure points. Part number 66-1544 is a new CV axle assembly supplied for the listed Chevrolet Cruze and Cruze Limited front left applications.
