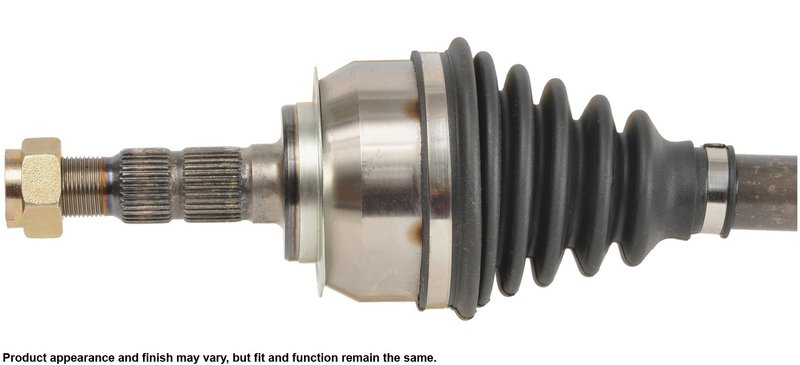

Cardone 66-1576 CV Axle Assembly - Front Right

Cardone CV Axle Assembly for Front Right Service

Restore smooth driveline operation with this Cardone CV axle assembly, part number 66-1576. It is built for front right applications on the Chevrolet Cruze and Cruze Limited, with engineering focused on straightness, seal integrity, and consistent performance at speed.

Cardone’s CV axle line is developed from testing and remanufacturing experience aimed at reducing common repeat-failure points such as boot cracking, seal leakage, and vibration. For Chevrolet Cruze front right CV axle replacement needs, 66-1576 is a direct-fit service part for the listed applications.

Key Features

• Fits 2011-2015 Chevrolet Cruze, front right
• Fits 2016 Chevrolet Cruze Limited, front right
• Part number 66-1576 for application-specific lookup
• ABS ring included for proper wheel speed signal integration
• Self-lock axle nut style with spindle nut included
• New axle retaining nut supplied for easier installation
• Neoprene boot design with added bellows where needed to reduce stress and ozone cracking
• Boot clamps are pneumatically crimped for a secure seal
• High-temperature, high-torque grease helps maintain joint performance
• Shafts are individually verified for straightness to reduce vibration
• Input shaft: 25 spline; output shaft: 33 spline
• Compressed length: 38.8976 in

Detailed Description

This Cardone CV axle assembly is engineered for the front right side of the Chevrolet Cruze and Chevrolet Cruze Limited. The design focuses on the areas that commonly cause CV axle failure, including boot deterioration, contamination, and shaft runout. Cardone verifies shaft straightness and uses precision-machined sealing surfaces after heat treatment to support long seal life and stable operation.

The CV axle assembly includes an ABS ring and a new spindle nut, and the axle nut uses a self-lock style. This makes it a practical choice for Chevrolet Cruze front right CV axle replacement work where maintaining ABS function and driveline smoothness matters. Part number 66-1576 is also a useful reference when matching the correct axle for 2011-2015 Cruze and 2016 Cruze Limited applications.

This part cross-references Chevrolet OE numbers 13334703 and 13367770 for the same application.

Common Problems This Part Can Address

• Clicking or snapping noises during hard turns
• Grease on the chassis or suspension from a torn CV boot
• Front-end vibration during acceleration
• ABS warning light after axle replacement
• Grinding or wobble from a worn outer CV joint

Installation Notes and Tips

• Fits 2011-2015 Chevrolet Cruze, front right, and 2016 Chevrolet Cruze Limited, front right.
• Do not let the CV axle hang unsupported during service; this can damage the inner joint.
• Use a torque wrench on the retaining nut and tighten to the manufacturer specification.
• Do not reuse a prevailing-torque lock nut; install the new nut supplied with the axle.
• Replace transaxle seals when servicing CV axle assemblies to help prevent leaks.
• If the ABS light remains on after installation, inspect the sensor ring, sensor, and nearby wiring for damage.

Quality Assurance

Cardone builds this CV axle assembly using engineering and inspection practices aimed at OE-level performance. The axle shaft is checked for straightness, the boot and clamp system is designed to help keep contaminants out, and the sealing surfaces are machined for proper fit and durability.
